Super Commercial Studio Camera Stand STA-01-500-TRI-3000 (Extreme Load - Rotation)  FREE U.S. shipping on this Item!

Super Commercial Studio Camera Stand STA-01-500-TRI-3000 (Extreme Load - Rotation) FREE U.S. shipping on this Item!

Regular price $20,999

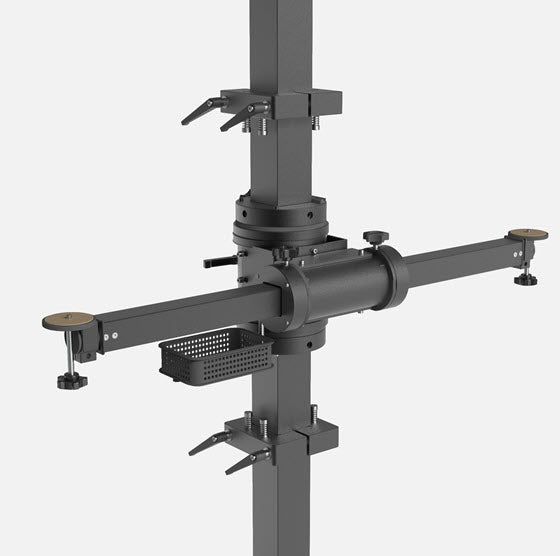

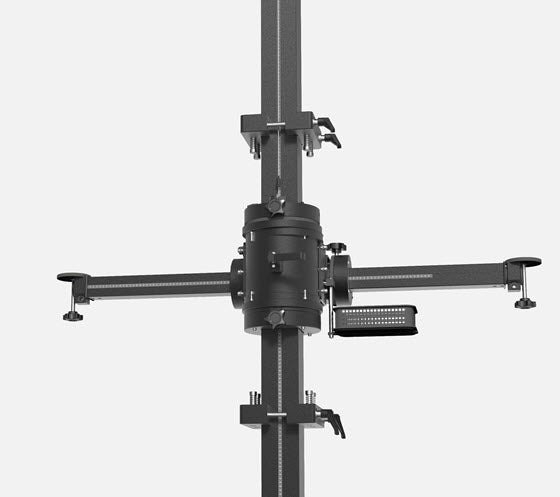

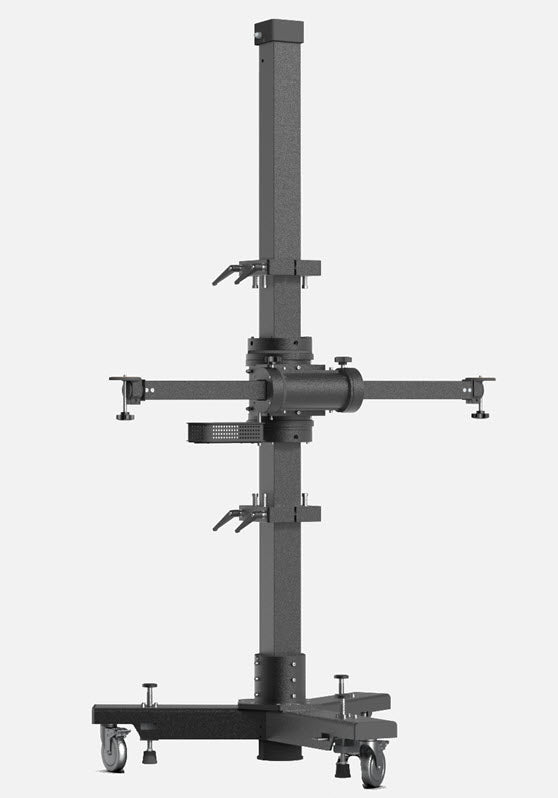

The STA-01-500-TRI-3000 [Total height: 300cm/118in] Super Commercial Stand is a 36kg / 80lb load rated camera stand designed for photogrammetry and optical measurement systems. It is designed to accommodate very high loads for photography, industrial digital image correlation and optical measurement systems.   The [TRI] model includes user adjustable upper and lower travel stops with deceleration bumpers.  This unique feature was designed to provide a specific user adjustable range of motion.  The [TRI] model includes user adjustable vertical carriage friction speed control function.  This allows the user to adjust friction pads to dampen or slow the rate of movement .  This stand is categorized as 3-axis, it provides vertical, horizontal and rotary movement of the  camera. Vertical [up/down] travel is provided by the vertical carriage. Horizontal arm / bar [left/right] extension is provided by the horizontal carriage.  Rotary movement around the vertical column by the rotary carriage.  The STA-01-500-TRI-3000 Super Commercial Stand uses an oversized vertical column design.  The oversized vertical carriage design incorporates a rotary carriage which allows the horizontal arm to freely rotate, 360 degrees, around the vertical column while the base remains stationary.  The stand weighs 177kg/390lbs the base is heavily weighted for added stability.

The Camera Head Mount Plates are user adjustable and provides a range of:  0 - 360 degrees.  The stand is supplied with the Head Mount Plates oriented in the 0 degree position.


The STA-C01-500-TRI-3000 Super Commercial Stand requires assembly.

The STA-01-500-TRI-3000 Super Commercial Stand is available by pre-order with a 12-14 working week lead time. It is packaged in a wooden shipping container and is delivered by truck to your location.  Unless special delivery and off loading requirements are arranged in advance.  The container will be delivered to your shipping dock or dropped off as close to the entrance of your facility as possible.  Please contact us by email for pricing based on special delivery and off loading requirements

Precision Manufactured with attention to detail using CNC machinery.

Smooth motion bearings on Z and Y columns with secure axis lock. Smooth circular rotation of horizontal axis with secure axis lock.

Counterweight in center column allows single handed operation.

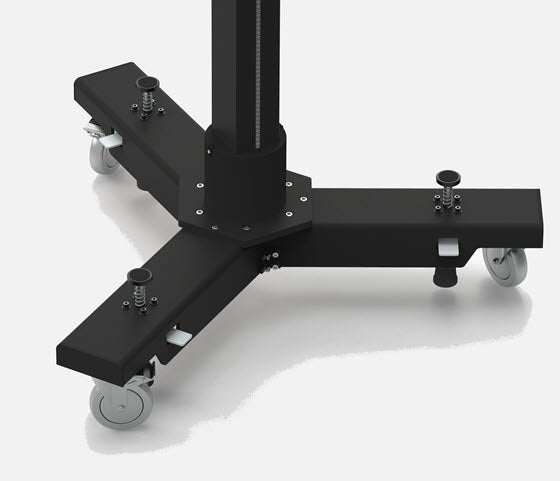

Low center of gravity base.

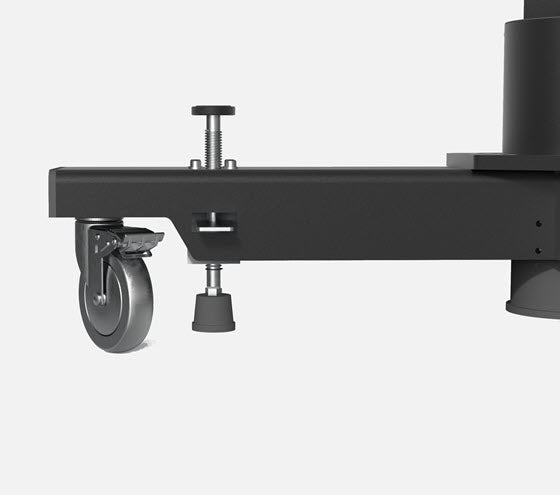

The foot operated brake plungers provide quick operation and prevent movement on flat surfaces.

Total Height : 300cm / 118 in
Working Height Maximum : 280cm / 110 in (approx. measured from Camera Plate to floor)
Working Height Minimum : 80cm / 31 in (approx. measured from Camera Plate to floor)
Working Width Horizontal : 50.8 cm / 20.0 in (approx. center of Column to center of Camera plate)

Horizontal Arm Width : 85cm / 33.46 in
• Weight Total: 173kg / 390lbs
• Base Diameter : 110cm / 43.30 in
• Recommended Max load capacity36kg (80lbs)
Recommended USER load weight range :  17kg -
31kg (37 lbs - 68 lbs)
Counterweight Mass :  50kg (110lbs)
Counterweight Length  :  800mm
/ 31 in

Weight Vertical Carriage :  18kg (39.6lbs)
• Weight Horizontal Carriage :  12k
g (26.4lbs)
• Weight Horizontal Arm :  3.5kg (7.7lbs)
• TRI feature 1 :
Upper & Lower adjustable safety clamps
• TRI feature 2 :
Adjustable vertical carriage friction speed control function
• Camera Plate Hardware:
3/8th inch - 16 thread
• Includes two Camera Head Mount Plates and Basket as shown
• Caster wheel diameter:
127mm / 5 in

Terms of Sale:  This product is final sale, no cancelation, no returns

Lead Time: 12-14 working weeks ARP + holidays


-Large accessory shelf STA-01-395 for notebook computer

-Small accessory shelf STA-01-397A for notebook computer

-STA-01-390 3-way head

-C0-500-TRI-3000 78lb counterweight complete with harness cable assembly (Recommended USER load weight range; 2.2kg - 11.4kg (5 lbs - 25 lbs))


Q: What is our innovation and why is it better?
A: SMOOTH Ball Bearing Movements
The horizontal arm and vertical carriage glide effortlessly on 24 calibrated metal ball bearings.  Smooth all ball bearing movements are beneficial when shooting with high resolution cameras and camera backs.
Other stands, that don't use ball bearings have too much play and don't provide smooth movements.

Studio Titan reserves the right to make product changes and improvements as required. As a result the product supplied may not be exactly as pictured or specified.

Intended use:

This product is intended for use by:

1. Professional and commercial photographers.

2. Technicians and quality control personnel.

This product is intended for use in a studio, lab or manufacturing environment with a high ceiling, indoors on a floor that is smooth, hard, flat and unobstructed. It is designed to be used at all times with a load (Camera or laptop or both).  Please refer to the products set-up and use manual for detailed information regarding intended use, set-up guidelines and instructions. When assembly is required, we recommend using an assistant during the initial product set-up.

Assembly Instructions are inside the package. If the assembly instructions are missing or you do not fully understand the instructions stop the assembly and consider the following resources. Visit the “SETUP” area of the website for documentation. Email questions to STA or contact Studio Titan America by phone for further assistance.

Material composition:

The Vertical and Horizontal columns are made of aluminum.  The counterweight is S20C steel.

The nuts and bolts are made of steel.  The casters are polyurethane. This product does not contain lead.

Note: Due to this products large size and specific packaging and handling requirements it is sold as "non returnable".

Recycled Materials used inside the products:  Studio Titan respects the environment.  When manufacturing products, Studio Titan prefers using raw materials that are mixed with recycled materials to reduce the environmental impact of the products. For the Aluminum components: Vertical column, Horizontal column, Legs, Die cast carriages, base, cap and head-mount plates. The typical percentage of recycled aluminum metal to raw aluminum metal is 70% recycled to 30% raw.  This globally adopted ratio provides good strength and finish.  For the Steel components like: circular or square columns, hardware, casters, gears and counterweight. We have confirmed that the steel is made up of recycled materials combined with raw materials.  We are not able to provide the actual percentage of recycled to raw on these components. Each product uses a different ratio based on its particular end use.

CLICK here for STA 01-500-TRI-3000 SUPER COMMERCIAL Set-up & Use Manual
