Rotating Commercial Studio Camera Stand STA-01-350R-MK2-TRI-240 (High Load - Rotation - TOTAL HEIGHT: 94.4 in / 240cm) C/W STA-01-350LW-10 Leg Weight Set

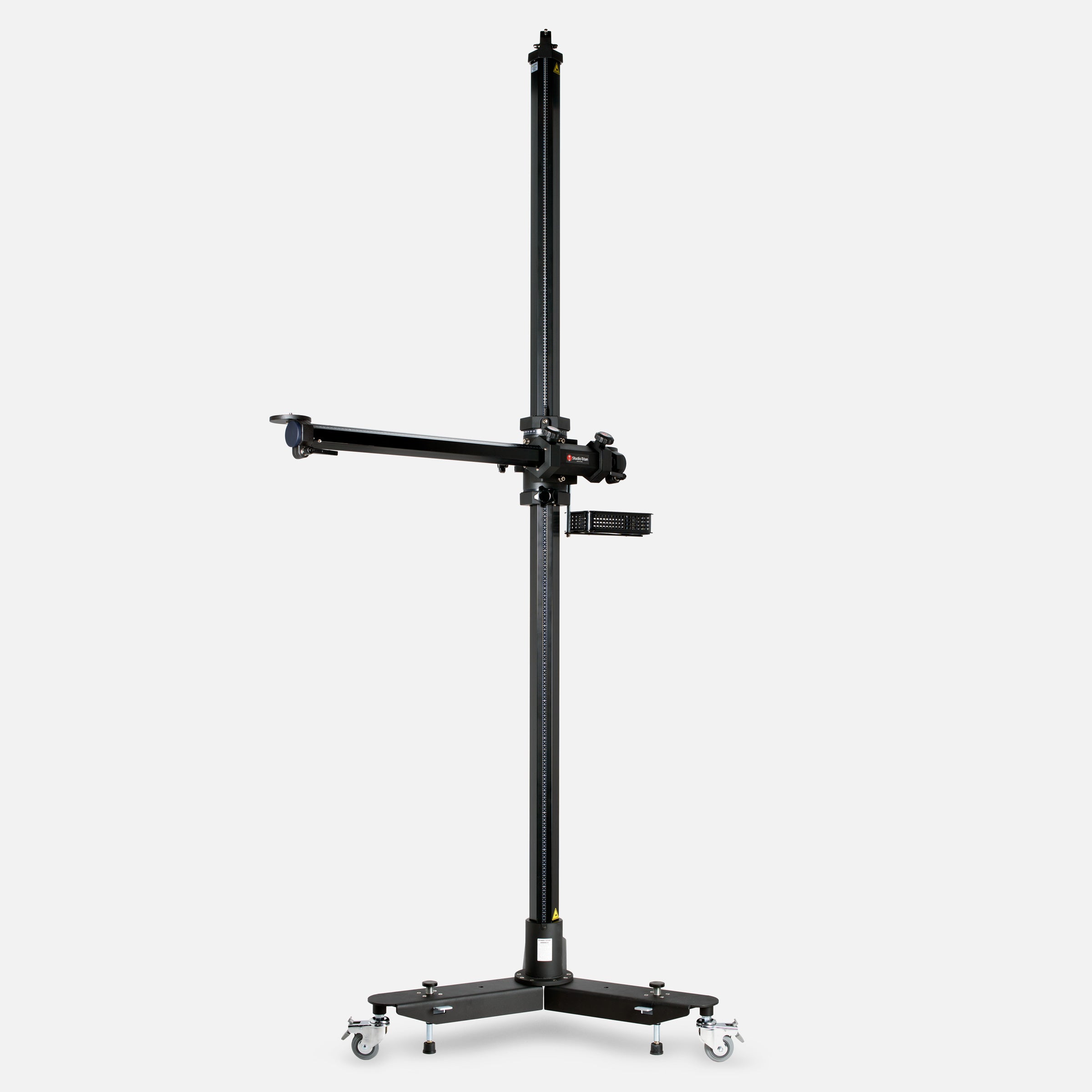

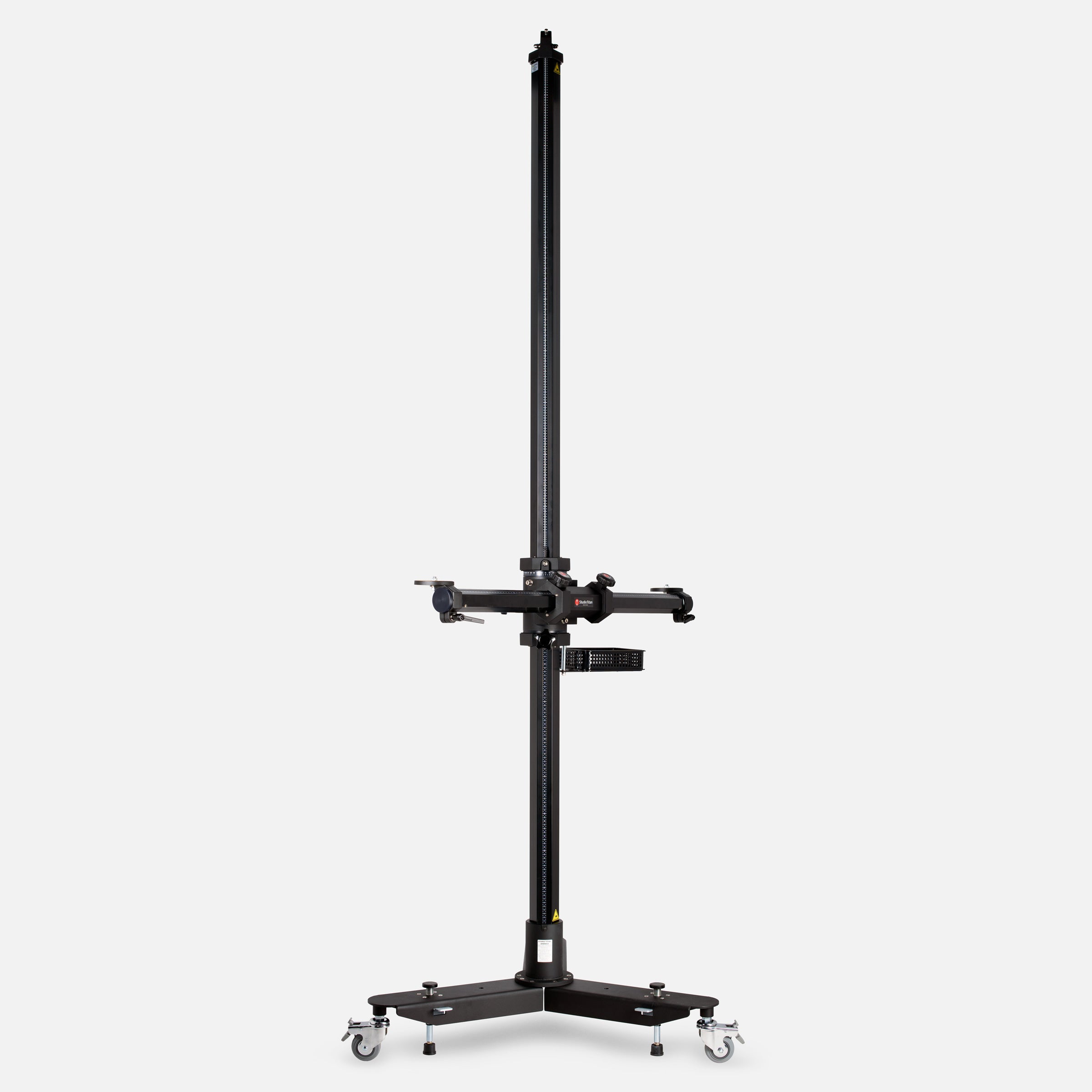

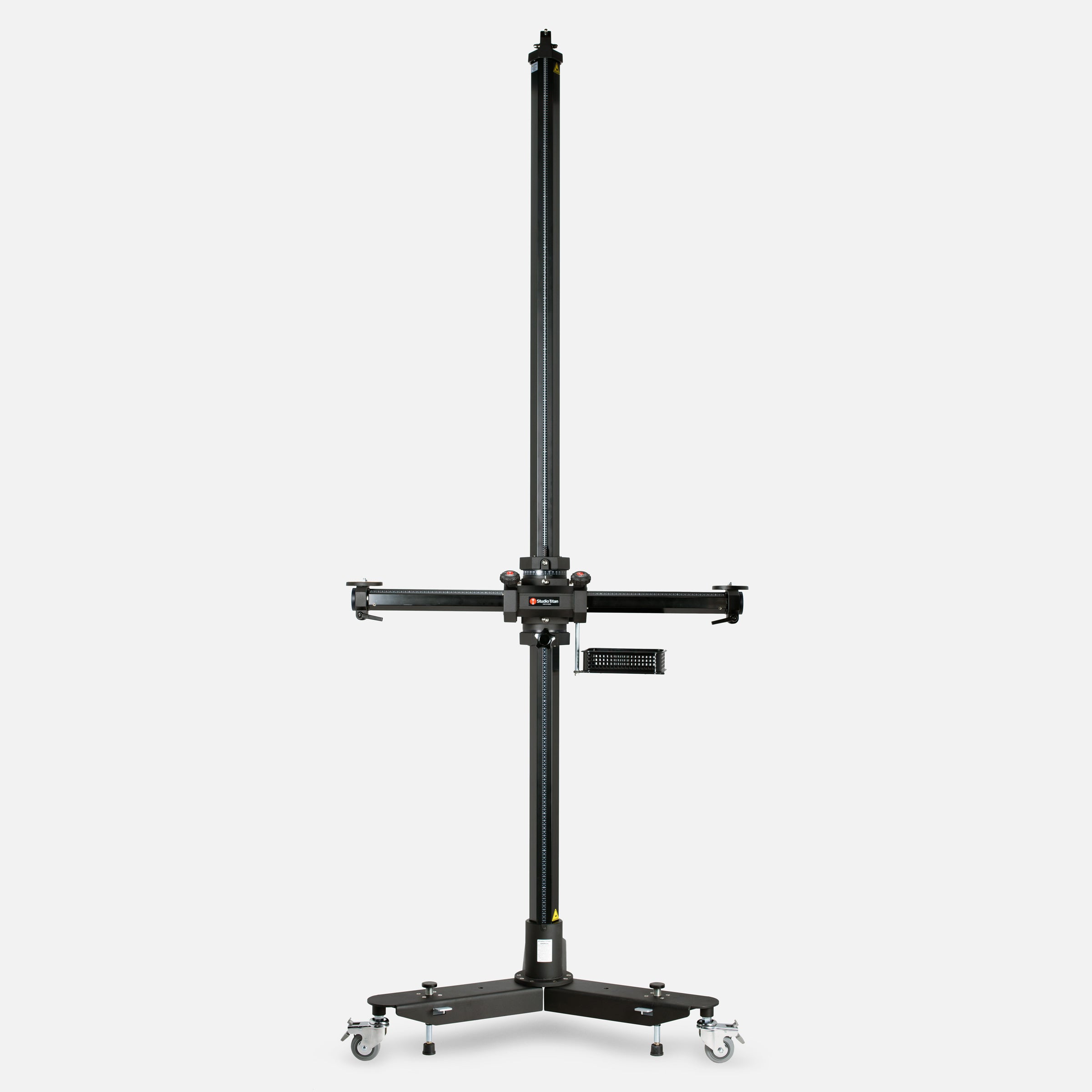

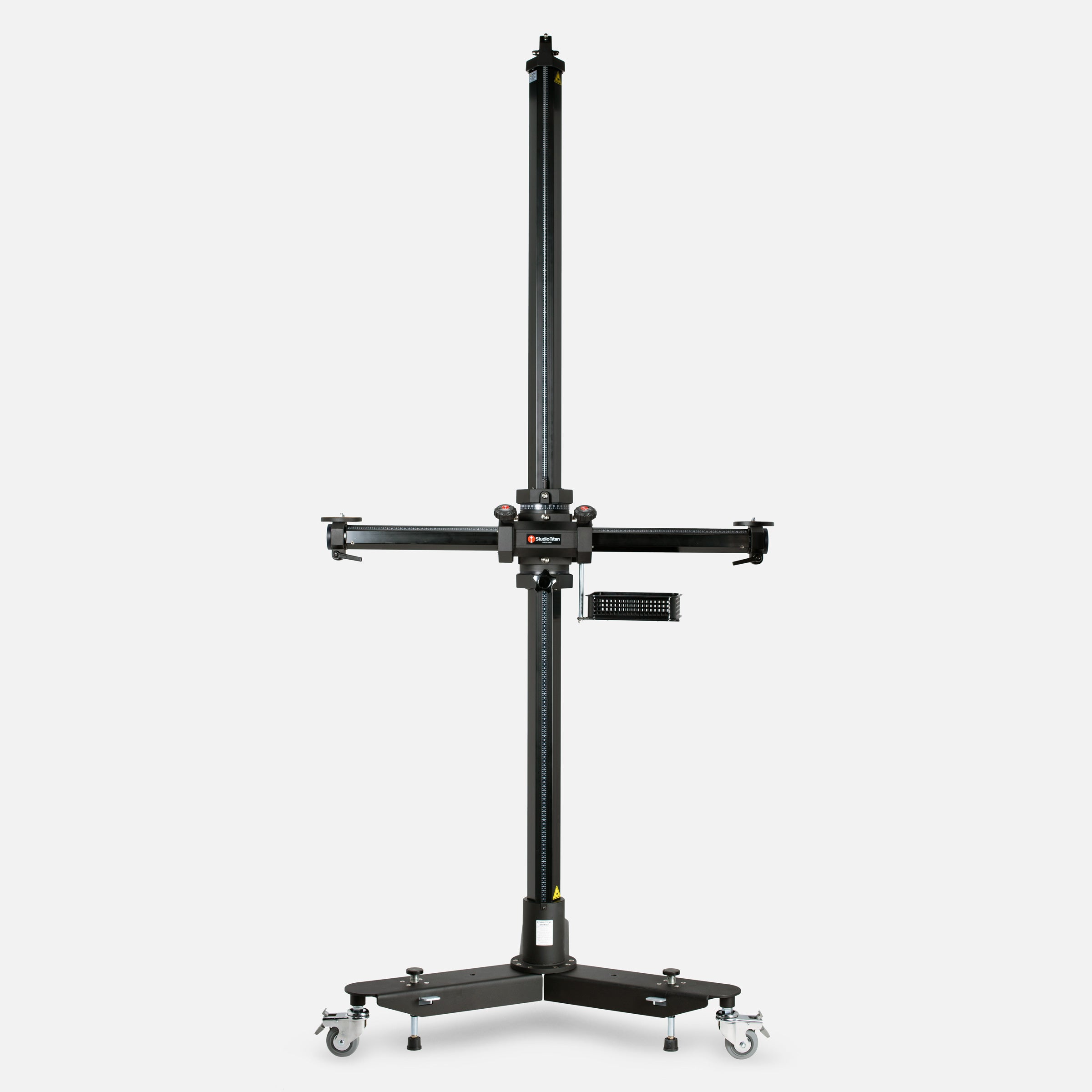

The STA-01-350R-MK2-TRI-240 is a 15.9kg / 35lb load rated camera stand designed for photogrammetry and optical measurement systems. It features a center column height reaching 240cm / 94.4 inches, which is suitable for ceilings that are 8 feet or higher. The horizontal arm has a width of 100cm/39.3 inches. Note: Due to the 15.9kg / 35lb load rating, the longer counterweight reduces the overall vertical travel of this stand. Refer to Maximum and Minimum working heights below.

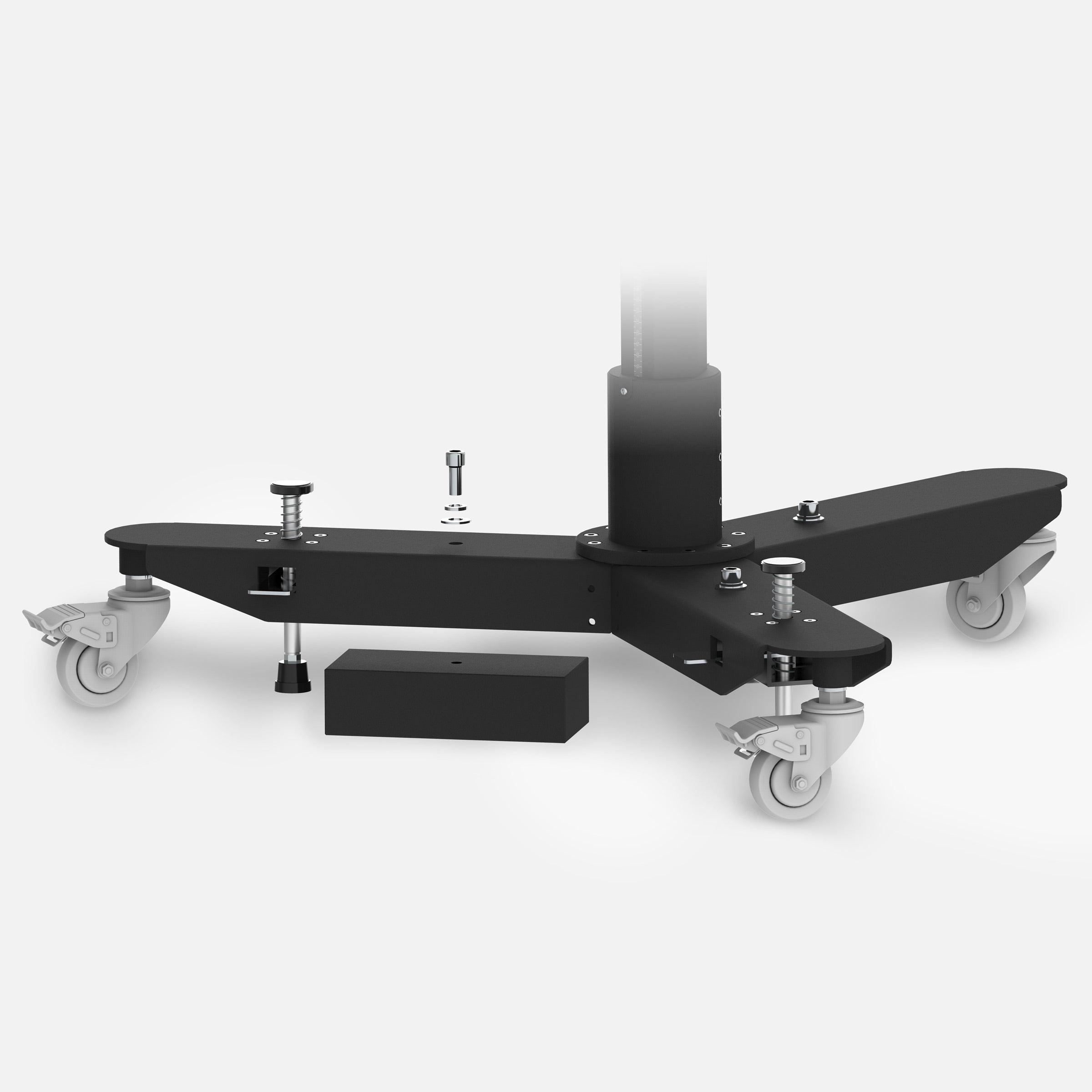

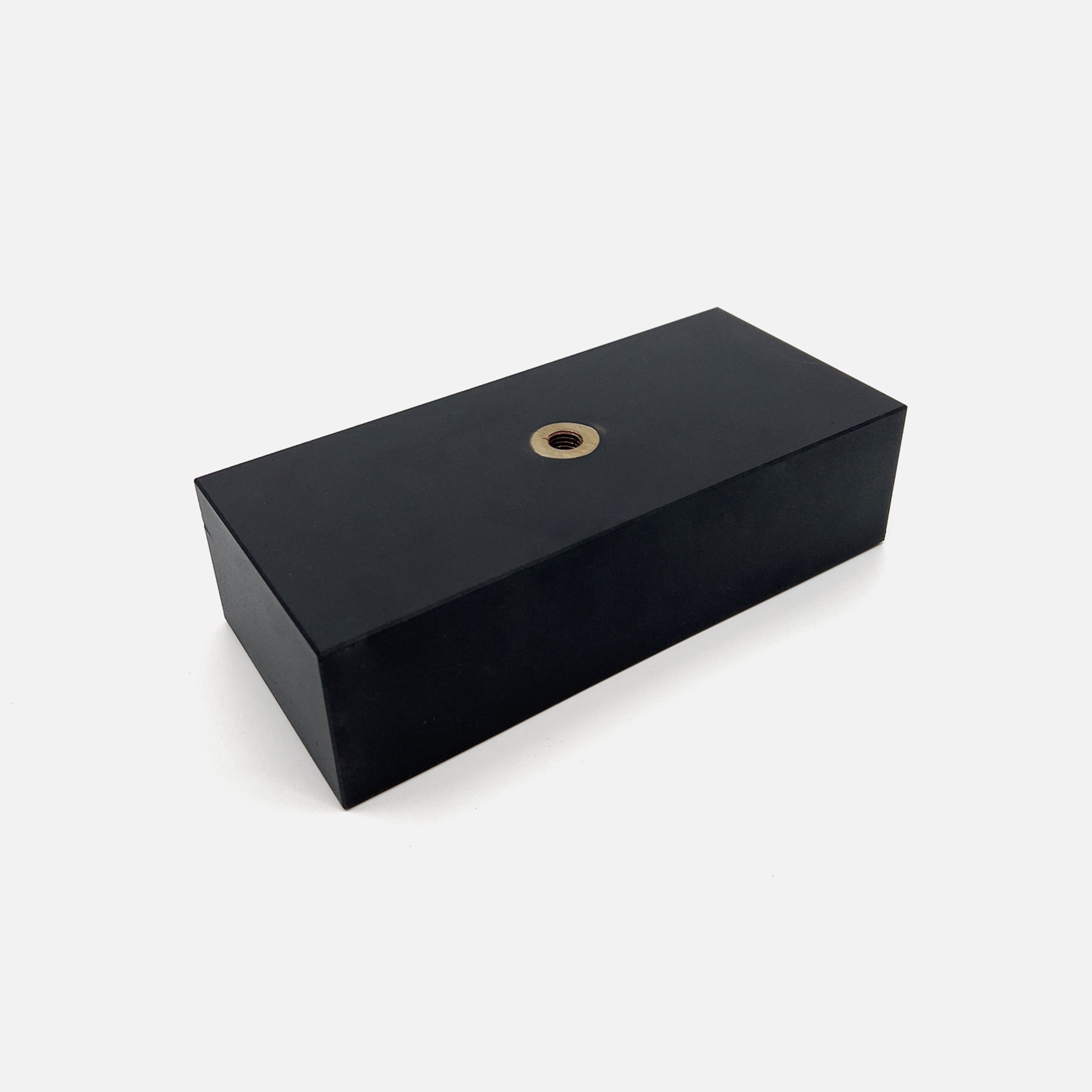

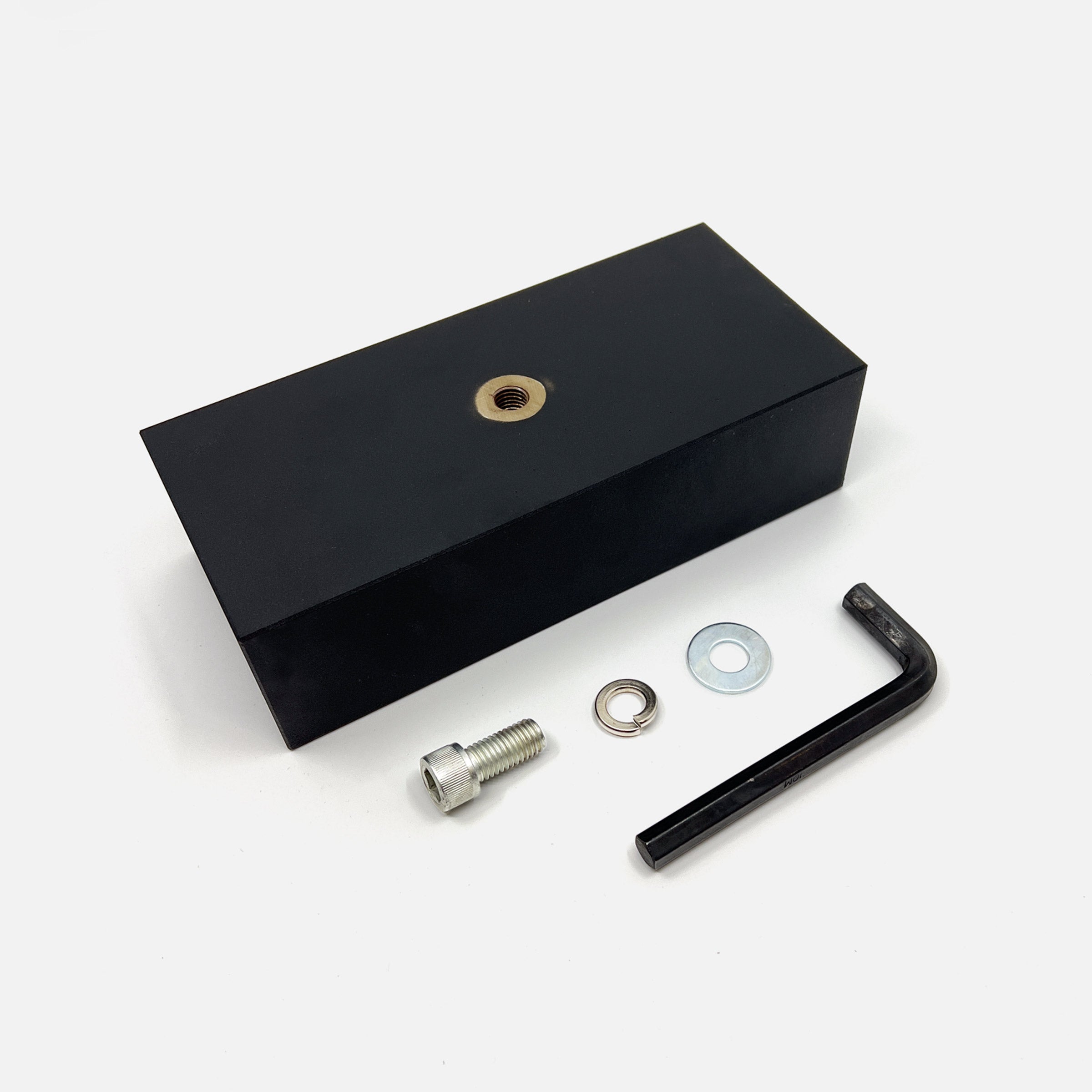

The base is supplied with the optional Leg Weight Set STA-01-350LW-10 for additional stability. The STA-01-350R-MK2-TRI-240 provides additional reinforcement of the Horizontal Arm/Bar with a heavy-duty interface plate. The plate provides two additional bolts strategically located, one on each side of the vertical carriage, for a total of 6 bolts. This design provides additional load support and spreads the load forces from the horizontal arm into both the front and the sides of the vertical carriage.

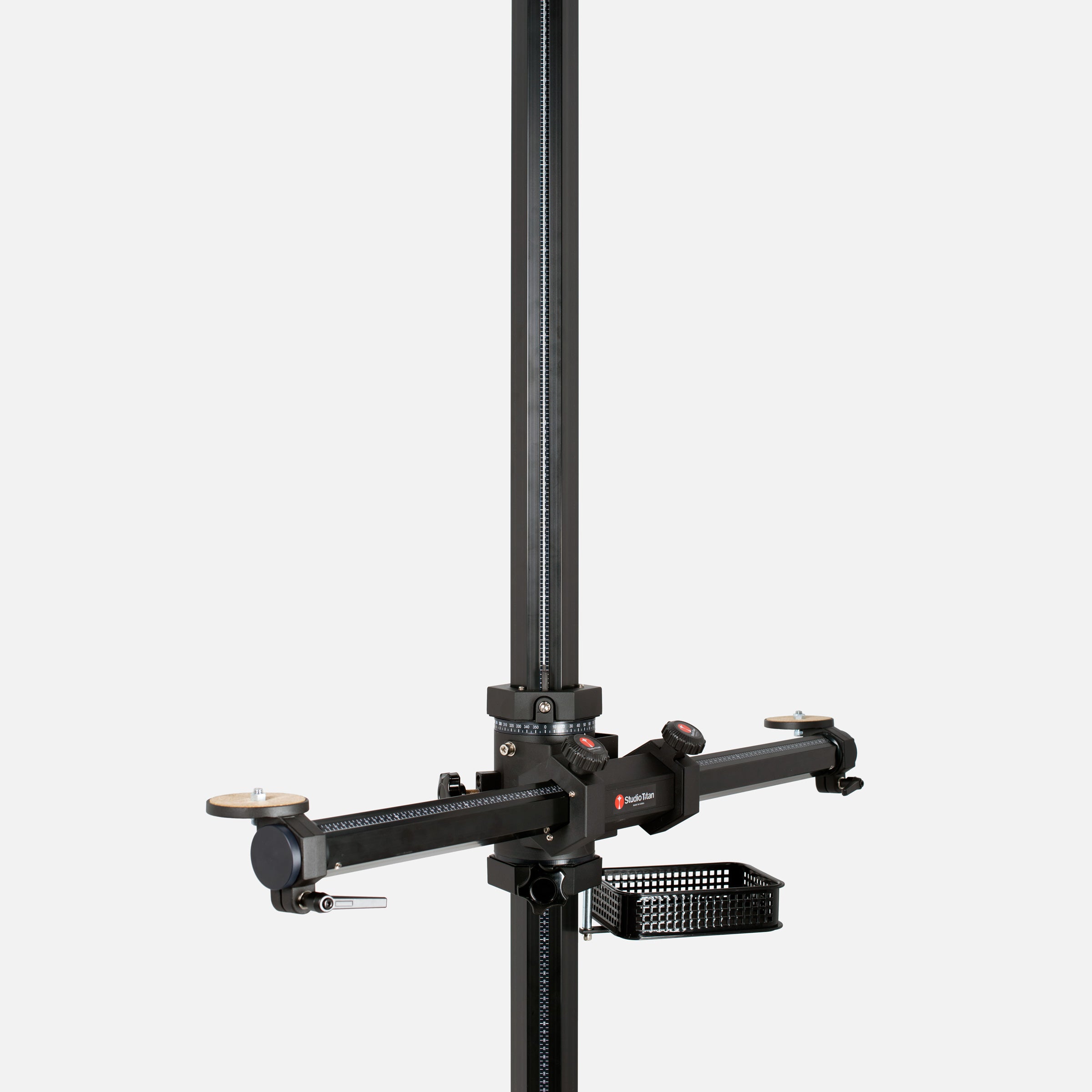

This stand is categorized as 3-axis, it provides vertical, horizontal and rotary movement of the camera. Vertical [up/down] travel is provided by the vertical carriage. Horizontal arm / bar [left/right] extension is provided by the horizontal carriage.

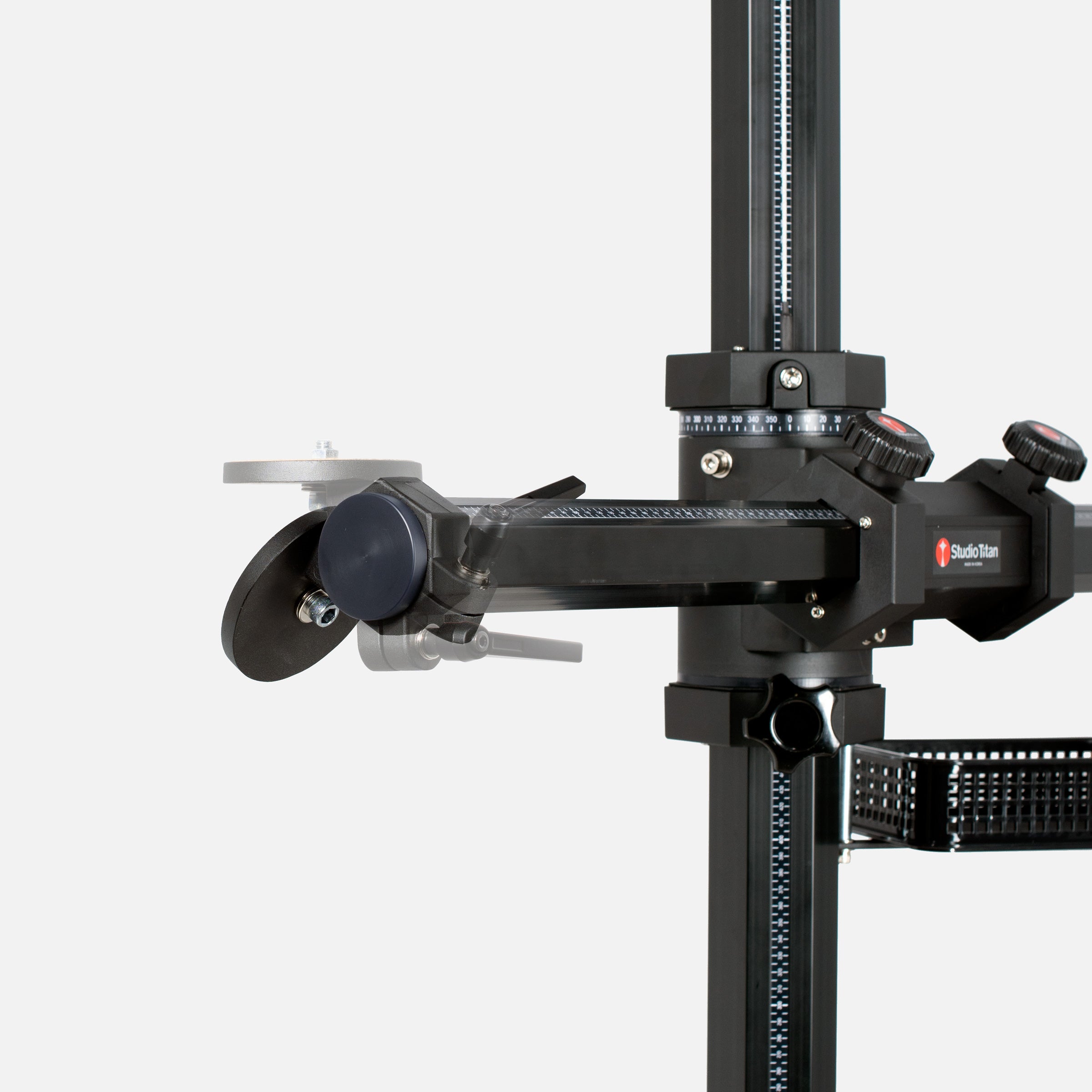

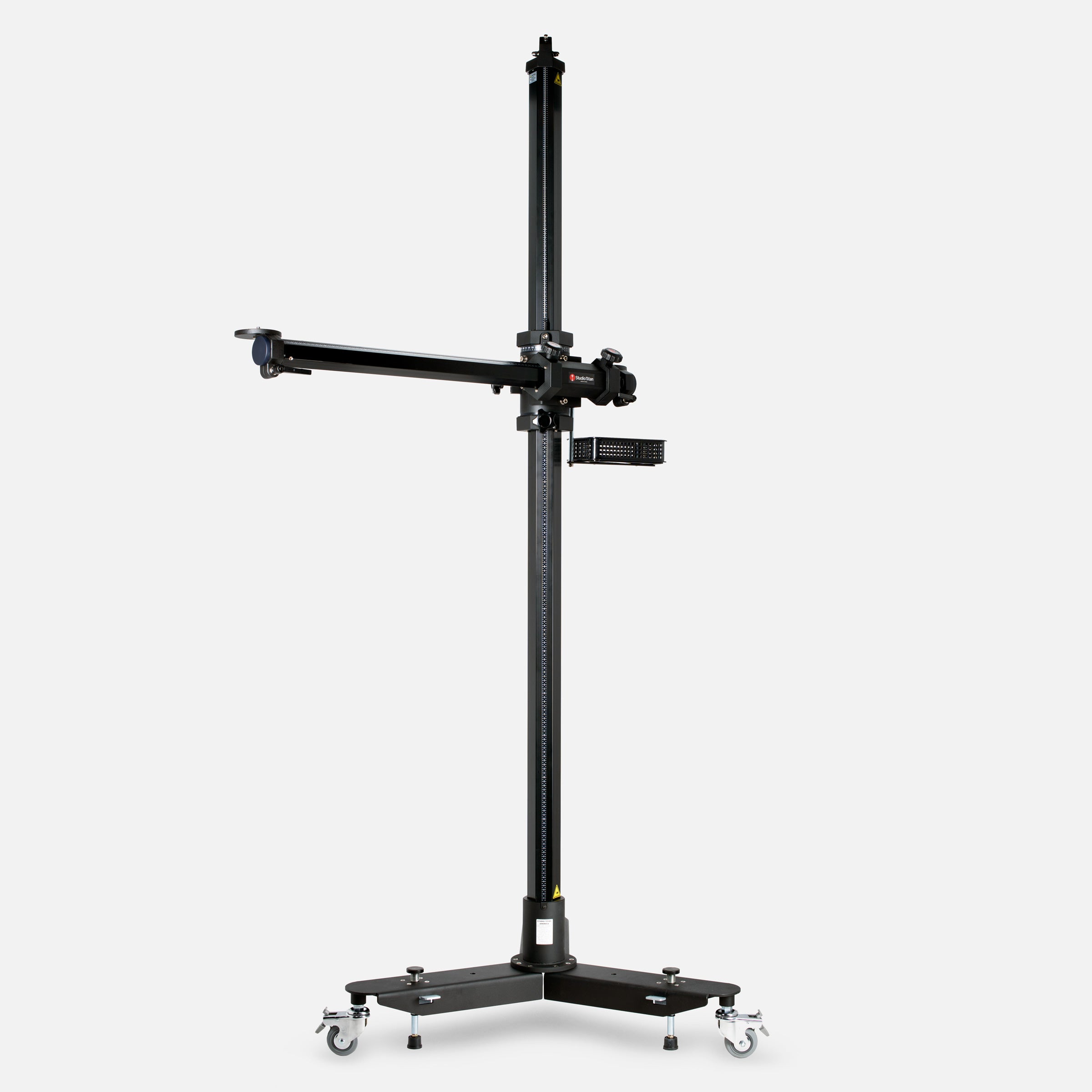

Rotary movement around the vertical column by the rotary carriage. The vertical carriage design incorporates a rotary carriage which allows the horizontal arm to freely rotate, 360 degrees, around the vertical column while the base remains stationary. The Camera Head Mount Plate is adjustable, anywhere from 0-360 degrees around the horizontal bar/arm.

• User positioned vertical carriage with precision smooth motion ball bearings and secure axis lock with one user brake knob
• User positioned horizontal arm / bar carriage with precision smooth motion ball bearings and secure axis lock with two user brake knobs
• User positioned rotary carriage allows the horizontal arm to freely rotate, 360 degrees, around the vertical column while the base remains stationary. Smooth motion bearing and secure axis lock with one user brake knob
• Precision-manufactured with attention to detail using CNC machinery.
• Counterweight located inside vertical column balances the load and allows single-handed operation.

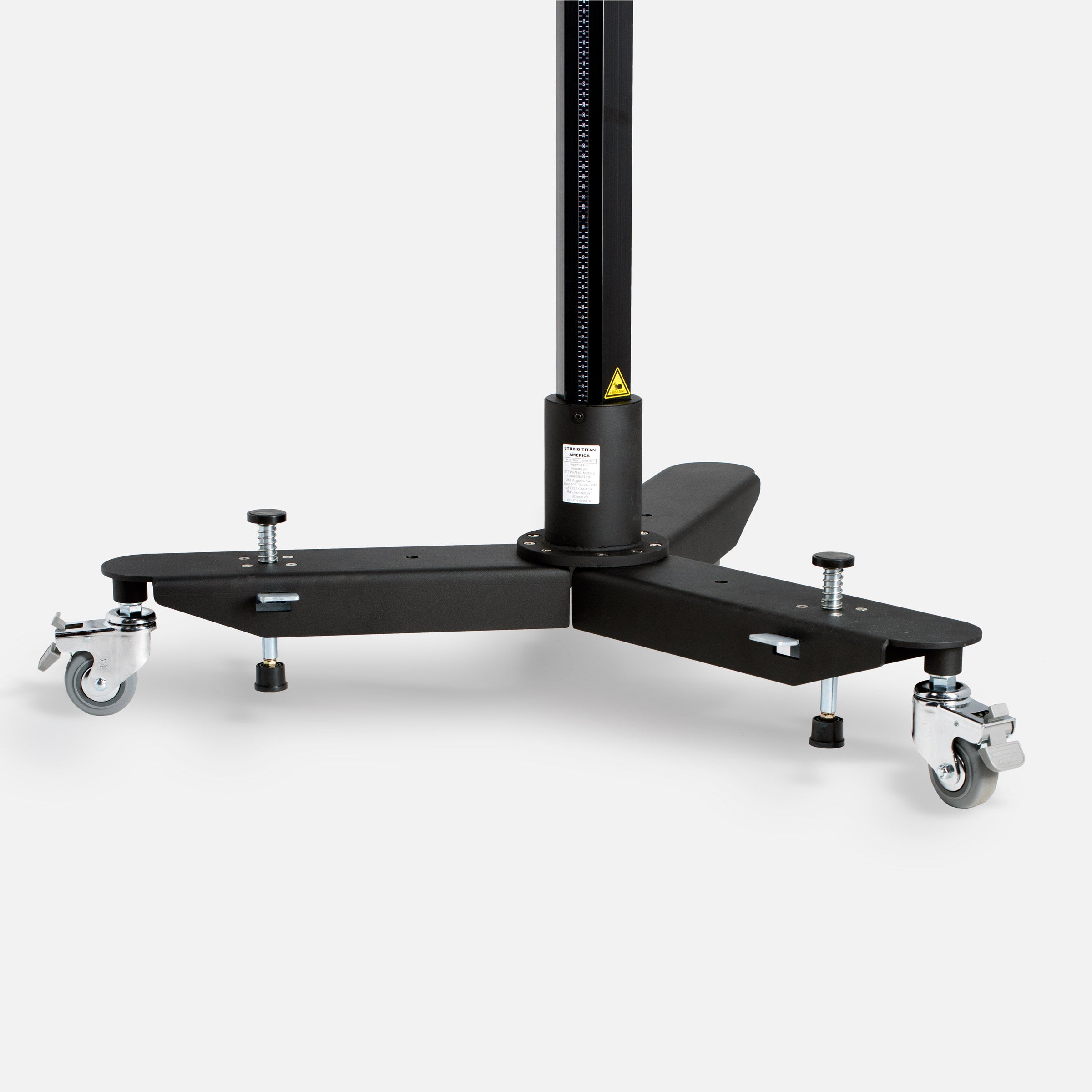

• Low center of gravity base with foot-operated brake plungers.
• Foot operated brake plungers provide quick operation and prevent movement on flat surfaces.
• Premium Dual Stage bearing casters provide easy movement around the studio. The dual-stage foot brake stops both the wheel from rotating and the caster housing from swivelling, preventing unwanted movement.

Some assembly is required, please review the set-up & use manual.
Includes essential tools required to complete assembly.

STA 01-350RMK2-TRI [HEAVY DUTY ROTATION] Set-up and use Manual

A unique Studio Titan feature not found on other Studio Stands is the vertical and horizontal column graduated tape scales. The measuring scales provide a point of reference which allows the photographer to log and then quickly re-create a previous set-up.

Product Updates

Studio Titan reserves the right to make product changes and improvements as required. As a result, the product supplied may not be exactly as pictured or specified.
