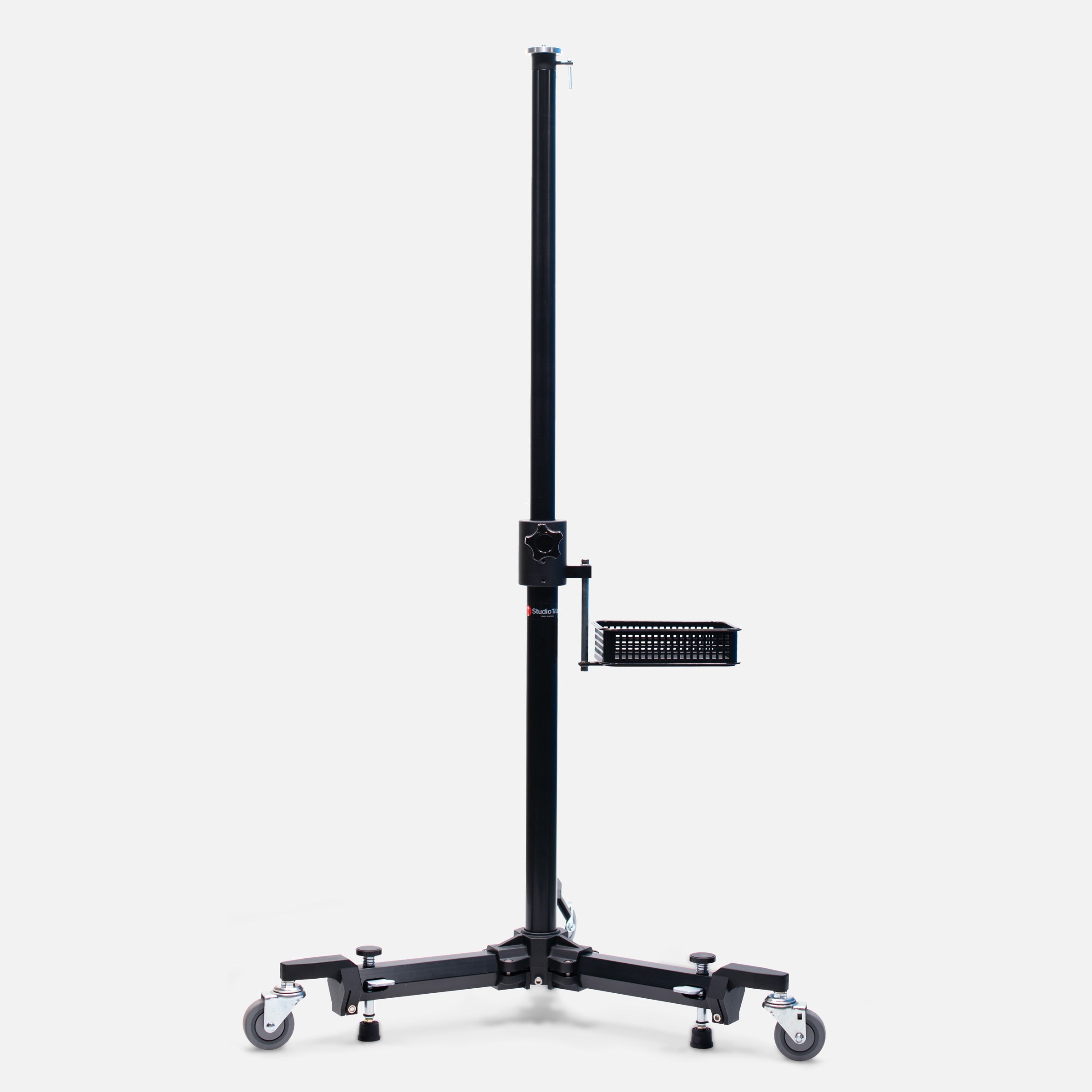

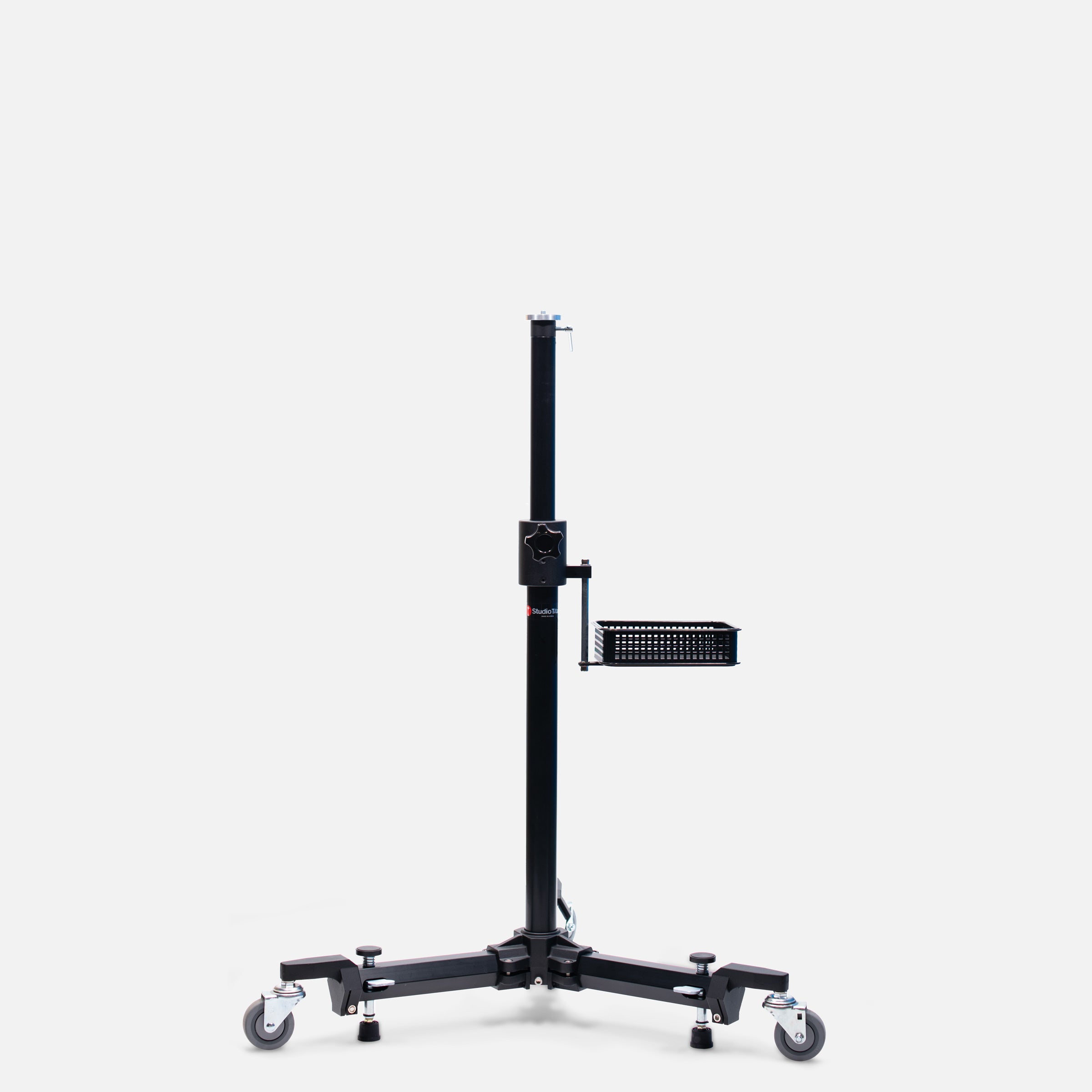

Mono Camera Stand STA-01-450
The STA-01-450 is designed for Digital SLR Photography. Its primary applications include: Private Medical Surgery Practices, compact imaging rooms and portrait studios. The STA-01-450 is designed for shooting headshots, full body and seated portrait. The vertical column [up/down] positioning is adjusted using only one knob. Located inside, at the bottom of the vertical column is a rubber bumper that prevents a hard stop when the vertical column is in its lowest position. The foot-operated brake plungers can be locked and unlocked very quickly using only one foot. This provides very rapid repositioning of the mono stand and quick securing of the base. A feature not found on other brands is the basket, which provides convenient safe storage for your light meter, memory cards and mobile phone. A Camera Head Mount Plate with brass anti-rotation securing screws is supplied with the stand.
-Precision-manufactured with attention to detail using CNC machinery.

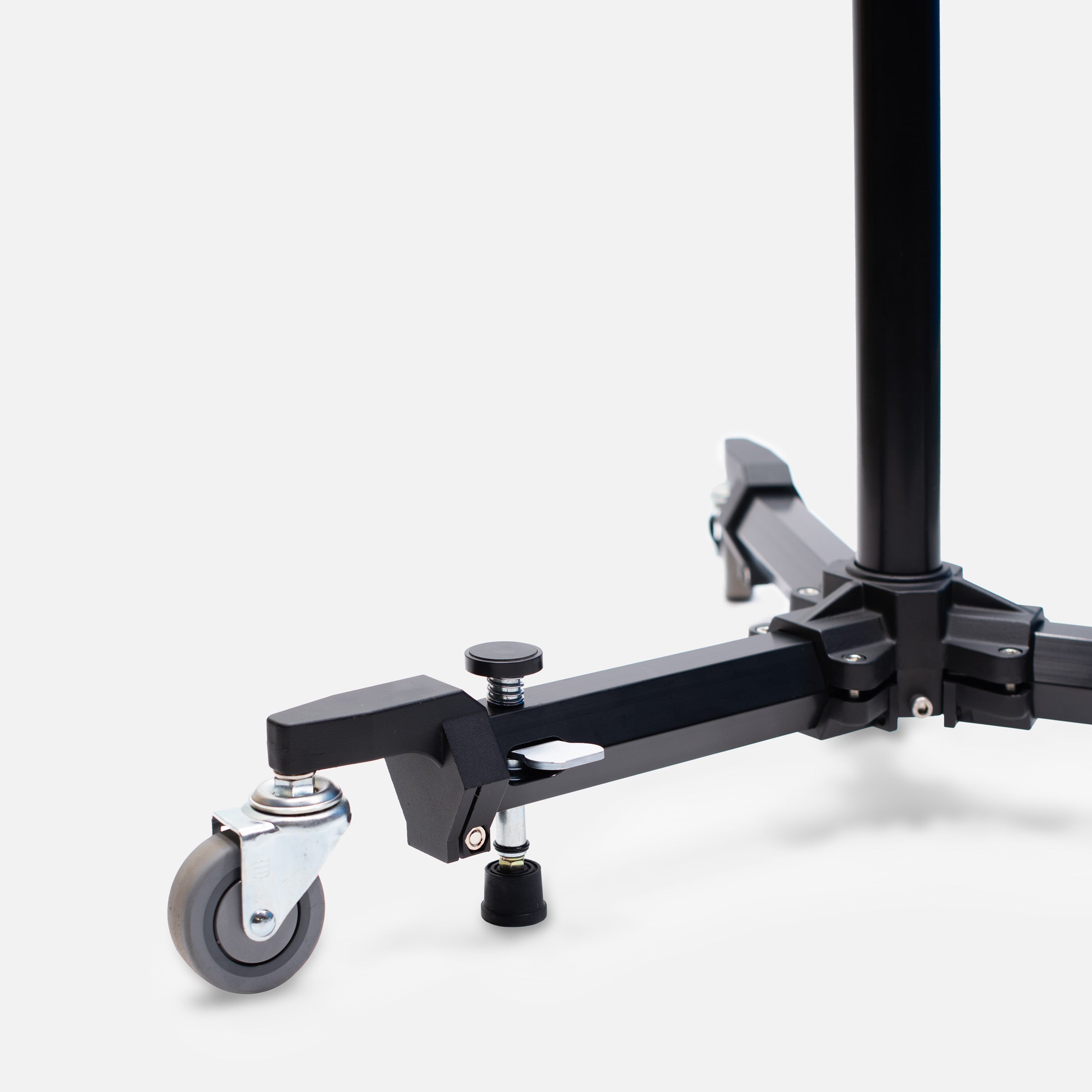

-Low center of gravity base with foot-operated brake plungers, quickly secures base and dampens vibrations.
-High quality bearing casters [75mm / 3 in diam. x 25mm / 1 in wide] provide easy movement around the studio.
Some assembly is required, please review the set-up & use manual.
Includes essential tools required to complete assembly.
• Total Height : 151cm / 59.45 in / 4 feet 11.4 in
• Working Height Maximum : 151cm / 59.45 in / 4 feet 11.4 in (measured from Camera Plate to floor)

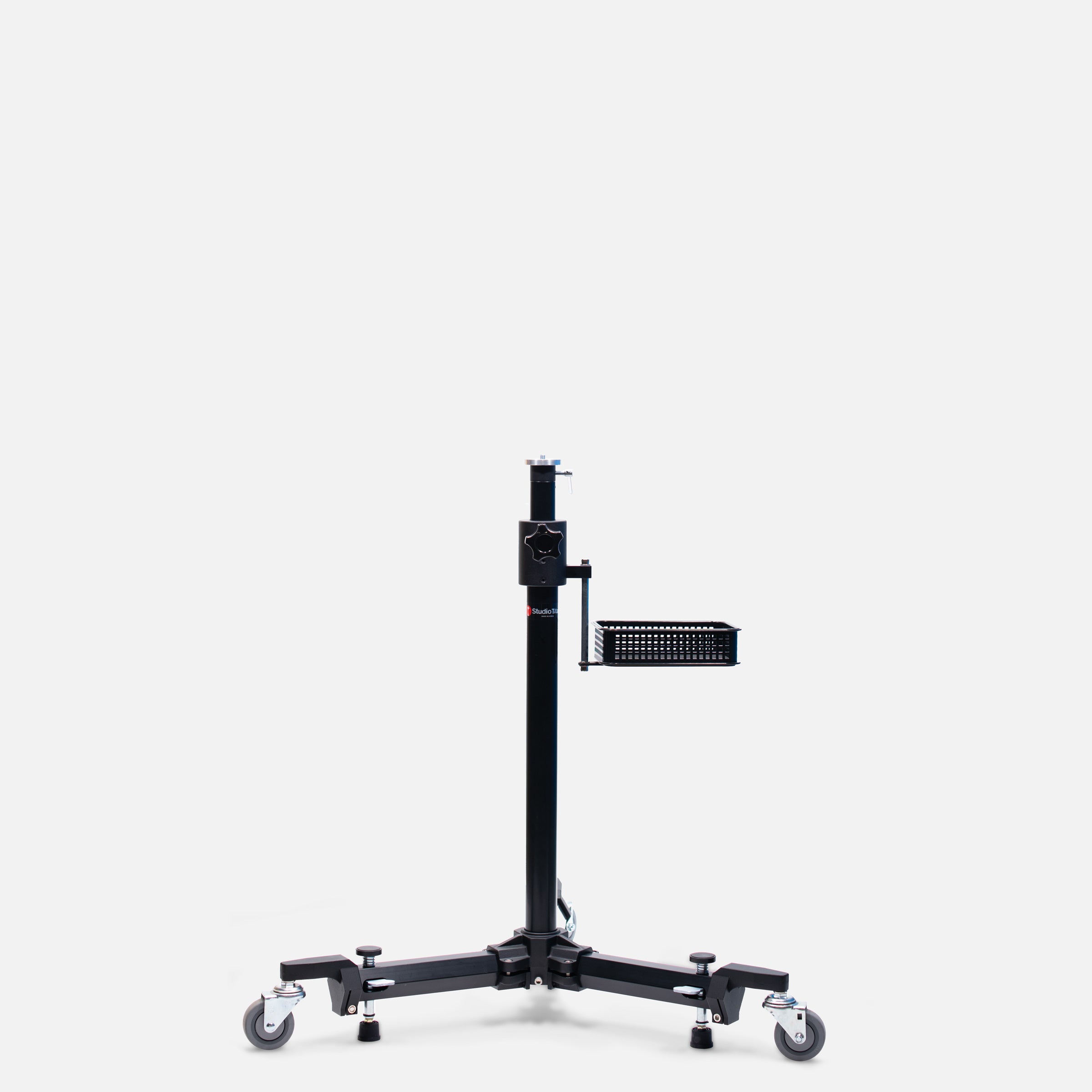

• Working Height Minimum : 87cm / 34.25 in / 2 feet 10.2 in (measured from Camera Plate to floor)
• Weight : 8.4kg / 18.5lbs
• Suggested Wheels : 01-360-20-024
• Base Diameter : 85cm / 33.4 in
• Recommended General load capacity : 5kg (10.2lbs)
• Main Outer Vertical Column Diameter : 50mm / 1.97 in
• Secondary Inner Vertical Column Diameter : 40mm / 1.56 in
• Camera Plate Hardware: 3/8th inch - 16 thread

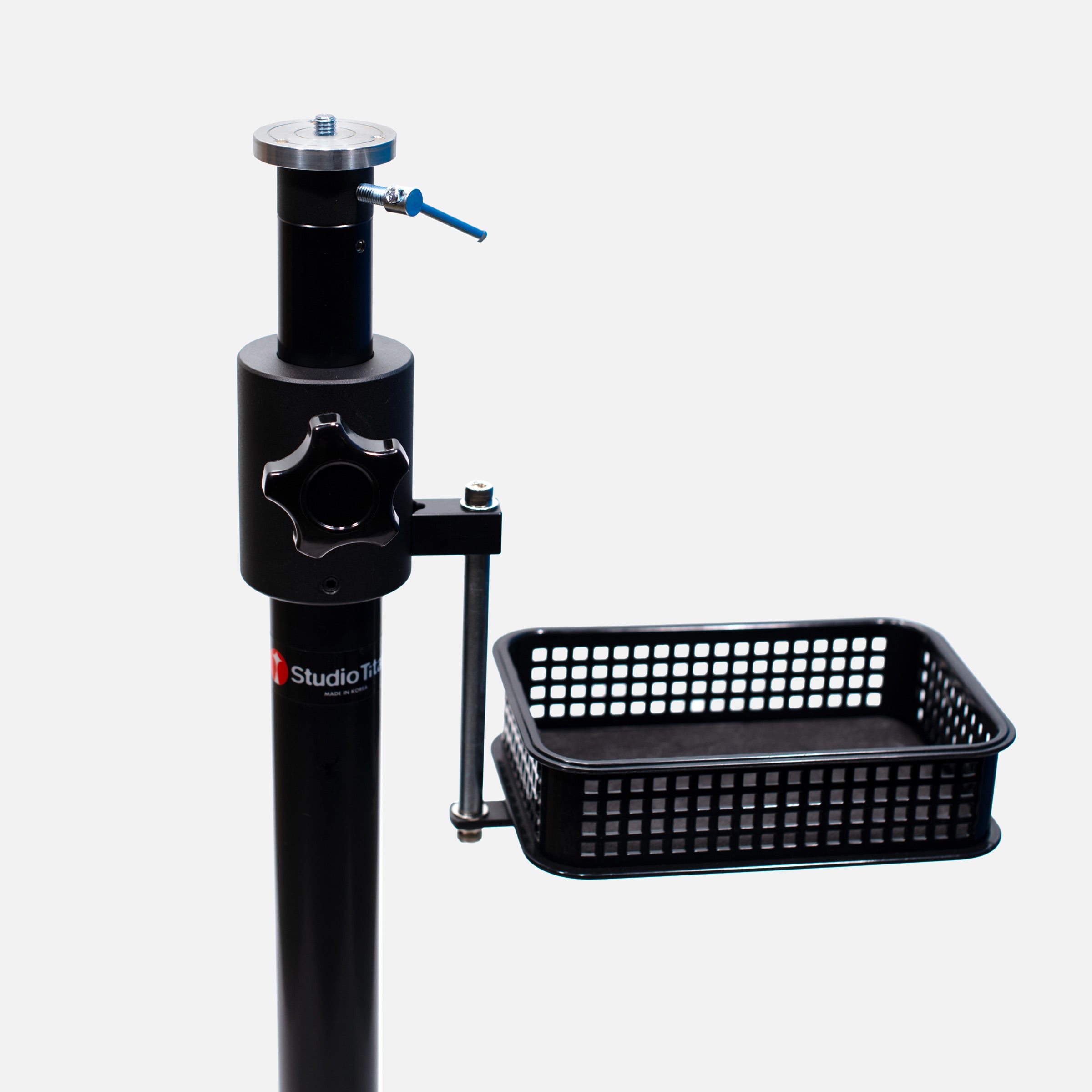

• Includes Camera Head Mount Plate [Plate dimensions: Diameter: 59mm - Thickness: 8mm and Basket as shown
Options:
-STA-01-451 Bar, provides two additional mounts for use with lighting or additional cameras
-STA-01-390 3-way head
Updates:
Studio Titan reserves the right to make product changes and improvements as required. As a result, the product supplied may not be exactly as pictured or specified.
Intended use:
This product is intended for use by:
1. Professional photographers.
2. Technicians.
This product is intended for use in a studio, lab or office located indoors on a floor that is smooth, hard, flat and unobstructed. It is designed to be used at all times with a load (Camera or laptop or both). Please refer to the products set-up and use manual for detailed information regarding intended use, set-up guidelines and instructions. When assembly is required, we recommend using an assistant during the initial product set-up.
Assembly Instructions are inside the package. If the assembly instructions are missing or you do not fully understand the instructions stop the assembly and consider the following resources. Visit the “SETUP” area of the website for documentation. Email questions to STA or contact Studio Titan America by phone for further assistance.
Material composition:
The Vertical and Horizontal columns are made of aluminum. The counterweight is S20C steel.
The nuts and bolts are made of steel. The casters are polyurethane. This product does not contain lead.
Note: Due to this products large size and specific packaging and handling requirements it is sold as "non returnable".
PACKAGING with Recyclable Materials: Studio Titan respects the environment. When selecting packaging materials, Studio Titan prefers using materials that are recyclable to reduce the environmental impact of its packaging. The column box blue outer plastic material is Polypropylene, abbreviated as PP, is a recyclable thermoplastic polymer widely used in many different products. PP is rugged. PP's resin identification code is 5, and it is recyclable. Product boxes and protection edges are made using corrugated cardboard which can be recycled at depots, in municipal curbside collection programs and through private recyclers. Internal securing foam blocks are made of PE (Polyethylene Foam) – Recyclable. Polyethylene foam products are 100% recyclable. Plastic bags are made of LDPE (Low-Density Polyethylene) – Recyclable plastic (check Local Authority) LDPE can be recycled. However, check with your Local Authority to ensure it is recycled in your area. This is described as a hard flexible plastic. LDPE’s identification code is 4 and it is recyclable. Yellow plastic strapping is made of PET (Polyethylen-terephthalat) – Recyclable. It is fully recyclable and commonly used in logistics.
Recycled Materials used inside the products: Studio Titan respects the environment. When manufacturing products, Studio Titan prefers using raw materials that are mixed with recycled materials to reduce the environmental impact of the products. For the Aluminum components: Vertical column, Horizontal column, Legs, Die cast carriages, base, cap and head-mount plates. The typical percentage of recycled aluminum metal to raw aluminum metal is 70% recycled to 30% raw. This globally adopted ratio provides good strength and finish. For the Steel components like: circular or square columns, hardware, casters, gears and counterweight. We have confirmed that the steel is made up of recycled materials combined with raw materials. We are not able to provide the actual percentage of recycled to raw on these components. Each product uses a different ratio based on its particular end use.
STA_01-450_with_Optional_STA_01-451_Top_Plate_FRONT_SIDE_TOP_DIMENSIONS
