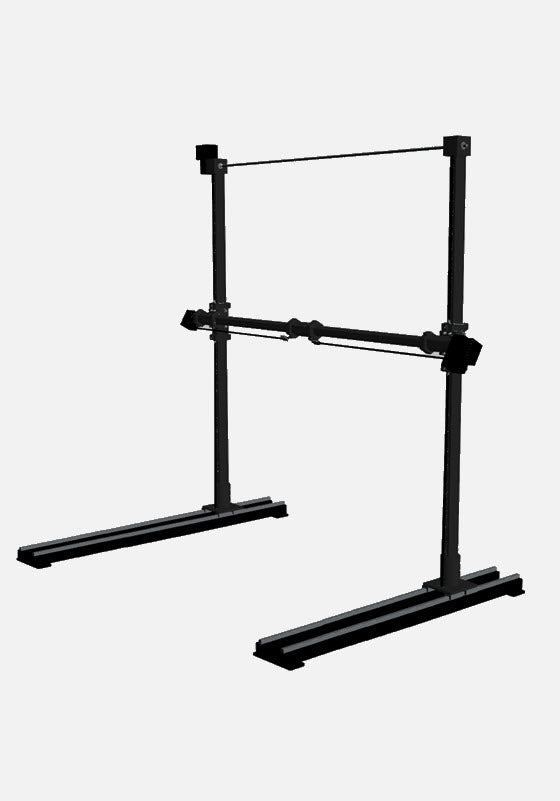

Copy Table Stand - Large Format
The Copy Table Stand - Large Format, was designed for use in a forensics lab for high resolution imaging of evidence. The Copy Table Stand - Large Format, is also used for scanning and reproduction of large art work and objects. The base model is supplied with two hand wheel controls, one for the horizontal axis and one for the vertical axis. A motorized option is available.
The Gantry is moved manually along its length axis. The gantry design allows for very smooth movement by utilizing all steel profile rails and bearings. One person can move the Gantry Along its length axis, but it is recommended to use two people until the operators are familiar with the characteristics of the gantry. The Copy Table Stand is Supplied with adjustable rubber feet and can also be bolted to a customer supplied flat mounting surface.

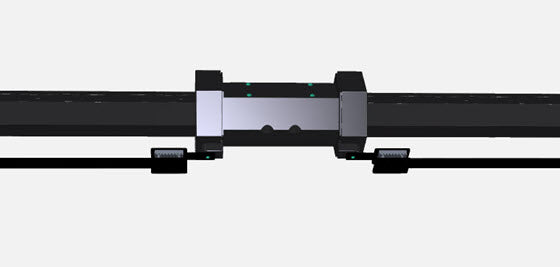

A Camera head mount plate is included but not indicated in the product image. Two adjustable Lighting support arms are included which are added to the carriage to allow strobes to move together with the camera but not indicated in the product image. The arms allow customer supplied strobes / LED lights to be positioned in front or behind or to the sides of the camera. The strobe / LED light adjustment distance from the camera is 12" 300mm to 36" 900mm
A unique STUDIO TITAN feature not always found on other Copy Table Stands is the vertical and horizontal column graduated tape scales. The measuring scales provide a point of reference which allows the photographer to index the camera to a specific location or log and re-create a previous set-up.
• Working Envelope Height Max : 1850mm / 6 feet (measured from Camera Plate to floor)
• Working Envelope Height Min : tba (measured from Camera Plate to floor)
• Working Envelope Width Horizontal : 1850mm / 6 feet
• Working Envelope Length : 2450mm / 8 feet
• Overall Height : tba
• Overall Width : tba
• Overall Length : tba
• Recommended General load capacity : 10 kg (22 lbs)
• Camera Plate Hardware: 3/8th inch - 16 thread
• Includes Camera Head Mount Plate and Two Lighting support arms
1. Motorized Version. Hand wheels are replaced with motors. Simple push button controls allow remote operation.
2. Customer specified table frame.
3. Digital Scales with Readout.
4. Custom lengths are available
-User positioned vertical carriage with precision smooth motion ball bearings and secure axis lock with user brake knob
-User positioned Horizontal carriage with precision smooth motion ball bearing.
-Precision-manufactured with attention to detail using CNC machinery.
-Counterweight located inside vertical column balances the load and allows single-handed operation.
Some assembly is required, please review the set-up & use manual.
Includes essential tools required to complete assembly.
-STA-06-040 Digital Imaging Work Station Stand
-STA-01-390 3-way head
Studio Titan reserves the right to make product changes and improvements as required. As a result, the product supplied may not be exactly as pictured or specified.
This product is intended for use by:
1. Professional photographers.
2. Technicians and quality control personnel.
This product is intended for use in a studio, lab or manufacturing environment with a high ceiling, indoors on a floor that is smooth, hard, flat and unobstructed. It is designed to be used at all times with a load (Camera or laptop or both). Please refer to the products set-up and use manual for detailed information regarding intended use, set-up guidelines and instructions. When assembly is required, we recommend using an assistant during the initial product set-up.
Assembly Instructions are inside the package. If the assembly instructions are missing or you do not fully understand the instructions stop the assembly and consider the following resources. Visit the “SETUP” area of the website for documentation. Email questions to STA or contact Studio Titan America by phone for further assistance.
The Vertical and Horizontal columns are made of aluminum. The counterweight is S20C steel.
The nuts and bolts are made of steel. The casters are polyurethane. This product does not contain lead.
Note: Due to this product's large size and specific packaging and handling requirements it is sold as "non-returnable".
PACKAGING with Recyclable Materials: Studio Titan respects the environment. When selecting packaging materials, Studio Titan prefers using materials that are recyclable to reduce the environmental impact of its packaging. The column box blue outer plastic material is Polypropylene, abbreviated as PP, is a recyclable thermoplastic polymer widely used in many different products. PP is rugged. PP's resin identification code is 5, and it is recyclable. Product boxes and protection edges are made using corrugated cardboard which can be recycled at depots, in municipal curbside collection programs and through private recyclers. Internal securing foam blocks are made of PE (Polyethylene Foam) – Recyclable. Polyethylene foam products are 100% recyclable. Plastic bags are made of LDPE (Low-Density Polyethylene) – Recyclable plastic (check Local Authority) LDPE can be recycled. However, check with your Local Authority to ensure it is recycled in your area. This is described as a hard flexible plastic. LDPE’s identification code is 4 and it is recyclable. Yellow plastic strapping is made of PET (Polyethylen-terephthalat) – Recyclable. It is fully recyclable and commonly used in logistics.
Recycled Materials used inside the products: Studio Titan respects the environment. When manufacturing products, Studio Titan prefers using raw materials that are mixed with recycled materials to reduce the environmental impact of the products. For the Aluminum components: Vertical column, Horizontal column, Legs, Die cast carriages, base, cap and head-mount plates. The typical percentage of recycled aluminum metal to raw aluminum metal is 70% recycled to 30% raw. This globally adopted ratio provides good strength and finish. For the Steel components like: circular or square columns, hardware, casters, gears and counterweight. We have confirmed that the steel is made up of recycled materials combined with raw materials. We are not able to provide the actual percentage of recycled to raw on these components. Each product uses a different ratio based on its particular end use.
Prop. 65 Warning Labels: For clients who are in the State of California, we have voluntarily added Prop. 65 warning labels to prevent unintentional misrepresentation. It is our intention to supply products that are not toxic and are compliant with Prop. 65 safe level guidelines. We require that our vendors also comply with Prop. 65 safe level materials guidelines, but we are not fully in control of the raw material supply chain.
Copy Table Stand - Large Format Manual is in process
