01-405 CINE POD X - CAMERA PEDESTAL

The STA-01-405 CINE POD X – camera pedestal is a compact rolling platform engineered for cinema production, one-man interviews, broadcast, and electronic news gathering (ENG). It excels in situations where portability, rapid deployment, and fast height adjustment are critical for precise subject framing.

Integrated v-mount connectors interface seamlessly with our ecosystem of accessories, transforming the unit into a versatile mobile workstation. The included junior mounting interfaces enable compatibility with our pole and pistol grip system, allowing easy expansion for lighting, audio, and monitor support.

Adapter sleeves are also included, ensuring compatibility with any standard spigot-based pole system across major brands.

The STA-01-405 cine pod is designed for both indoor and outdoor use on paved surfaces, delivering smooth and stable movement in a variety of shooting environments. Integrated casters with built-in dampening help absorb bumps and vibrations, improving shot stability during motion.

It features industrial-grade, spring-loaded shock-absorbing casters with locking brakes for secure positioning. these next-generation casters eliminate the need for pneumatic wheels while providing 20 mm (3/4") of vertical travel for enhanced performance over uneven surfaces.

Built-in main leg springs and a pneumatic cylinder provide assisted lifting, lowering, and load balancing for smooth, controlled operation and improved equilibrium.An integrated pneumatic counterweight system helps balance the load, enabling single-handed operation via the hand lever.

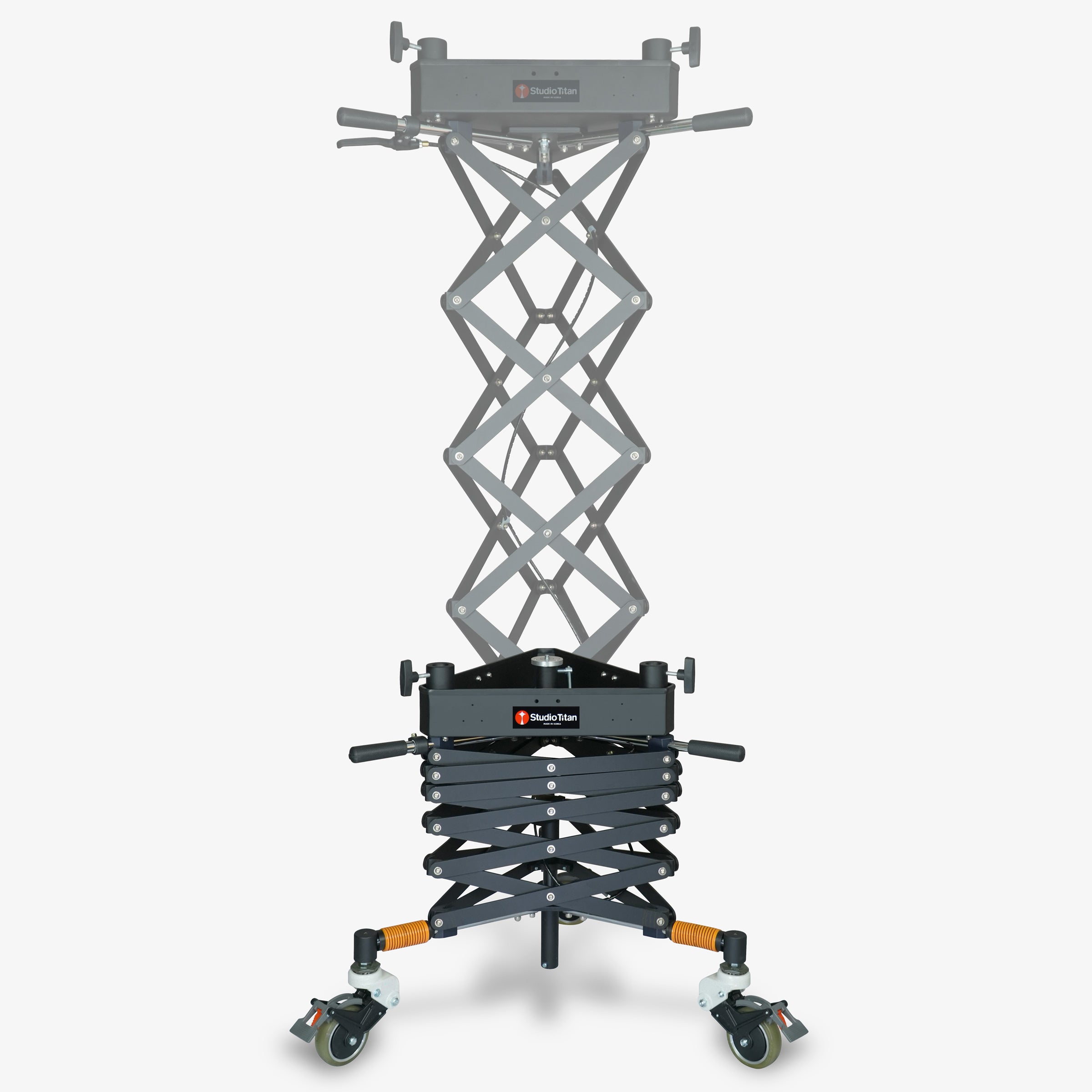

When not in use, the unit collapses to approximately 60 cm (24 in) for compact storage in the supplied padded soft travel case.

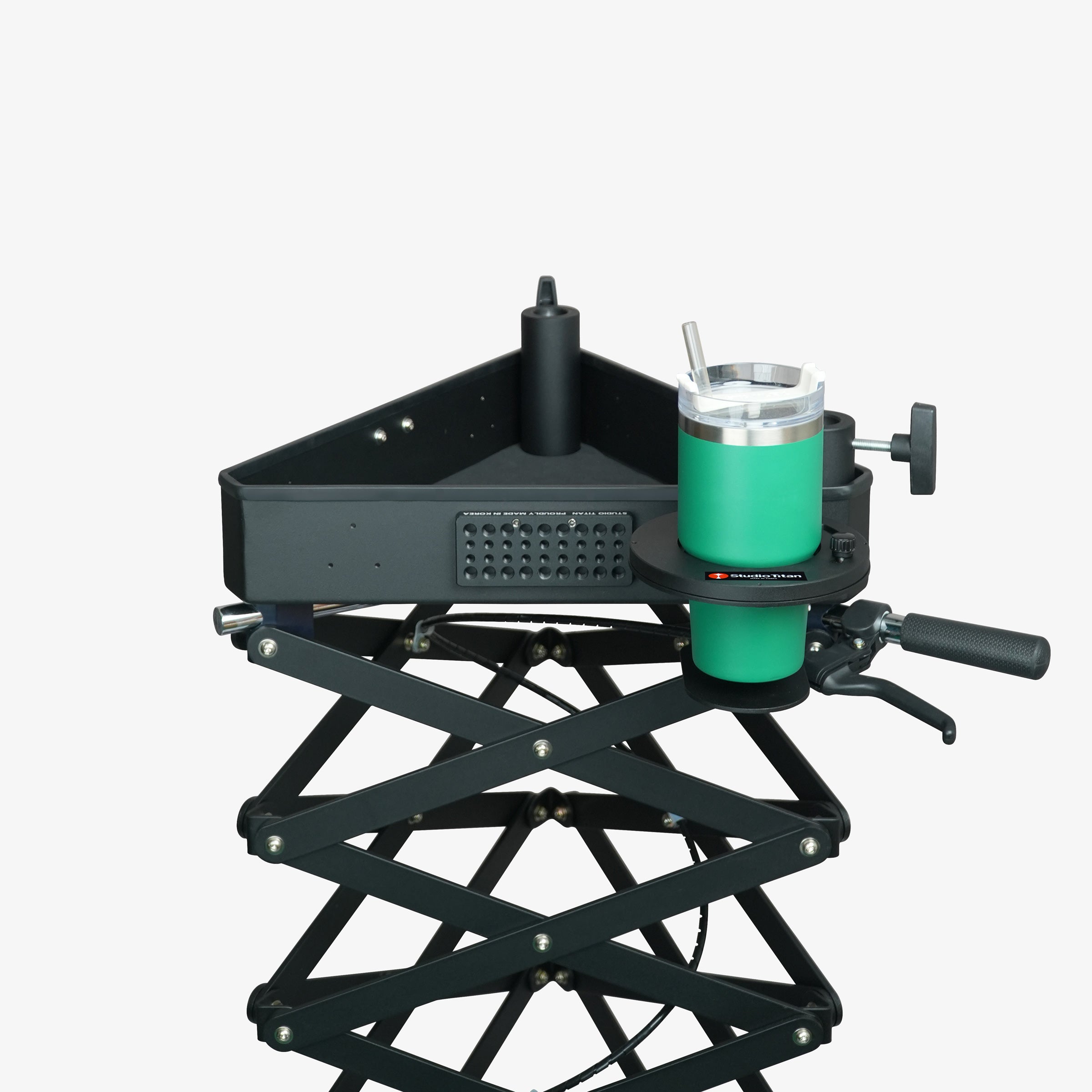

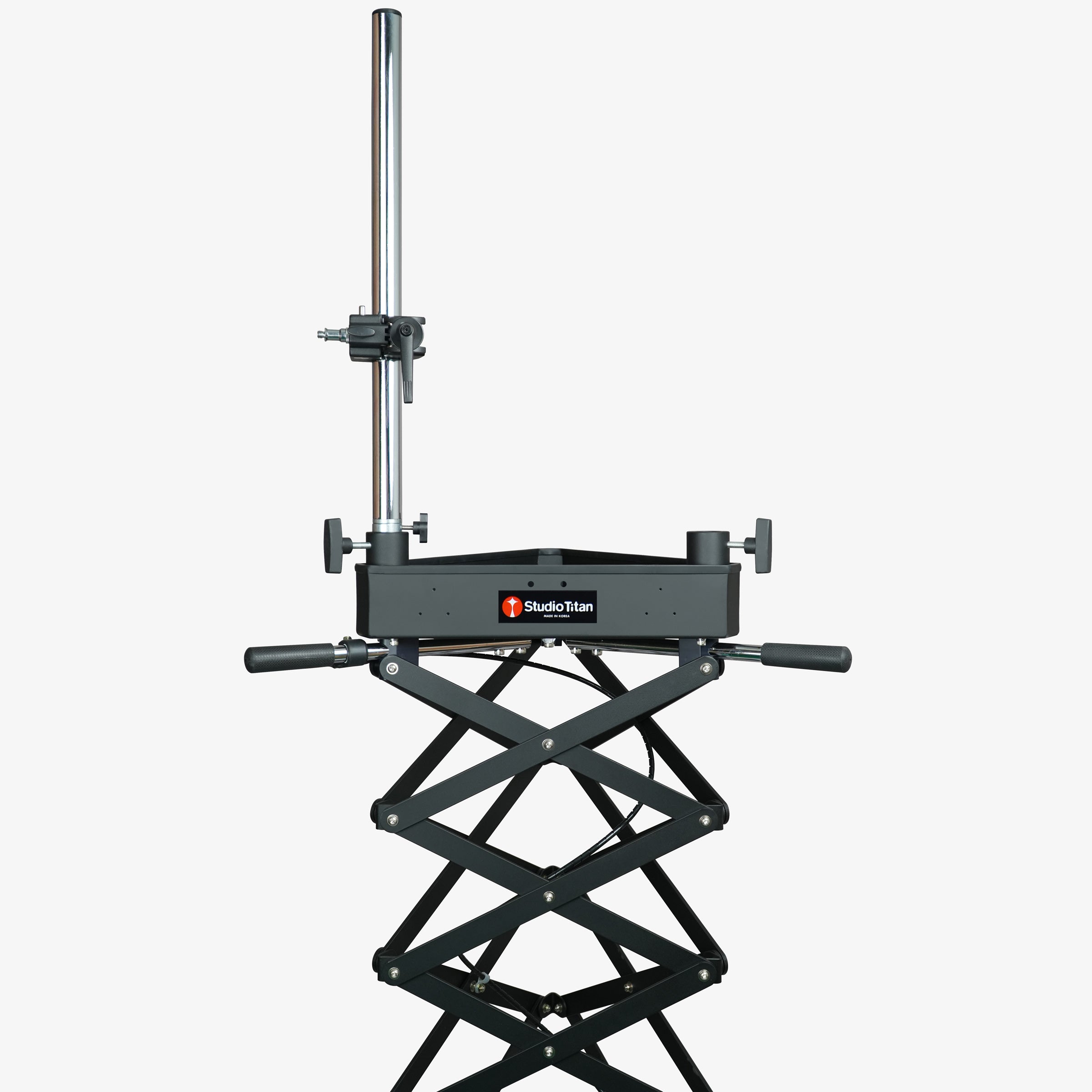

Images shown include optional accessories such as the cup holder, 100mm bowl and expansion pole system; these are not included as standard but are available separately.

Includes:

• 2 v-mount adapters
• 2 replaceable cheese plates
• standard dslr mounting column with 3/8th thread head mount plate with 3x brass counter rotation screws
• 75mm bowl mounting adapter with cheese frame
• 2 x junior mounting interfaces with spigot adapters (fits c-stand poles and poles with spigot base, standard spigot size)
• padded soft travel case

Add-ons:

• 100mm bowl mounting adapter with cheese frame
• v-mount iris cup holder
• v-mount adapter
• cheese plate
• baby to junior adapter with 06-093 interface for pole and pistol grip system
• 06-093 poles
• 06-092 pistol grips
• 06-092-100
• 06-092-300
• vesa mount with cheese
• 06-094 truck kit

Assembly is NOT required this stand is delivered ready to use.

Precision Manufactured with attention to detail using CNC machinery.

Note: Camera head is not included

STA 01-405 CINE POD X Set-up & Use Manual

STA 01-405 CINE POD X Front side top dimensions

Product Updates

Studio Titan reserves the right to make product changes and improvements as required. As a result, the product supplied may not be exactly as pictured or specified.
