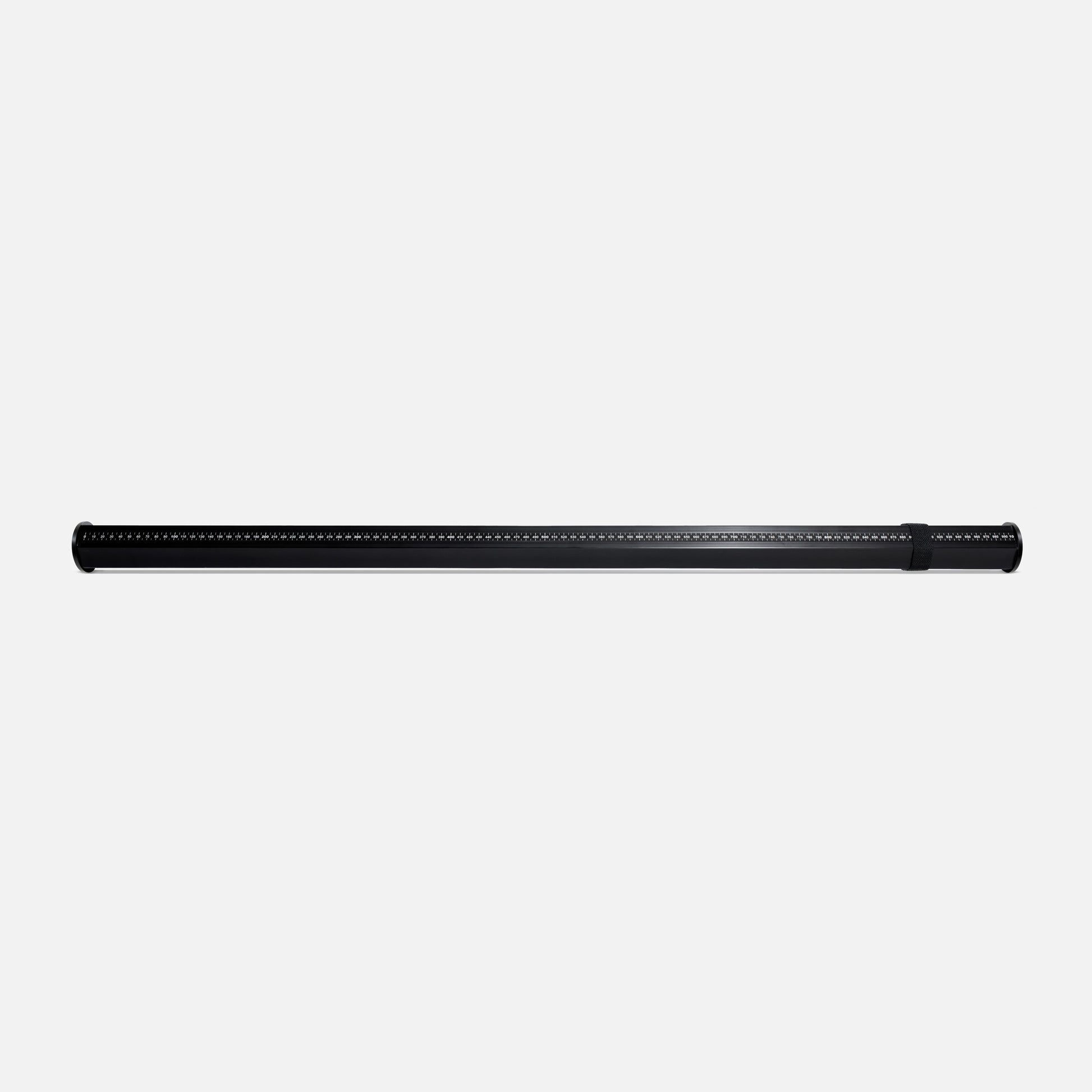

Horizontal Arm Bar with scale and end caps 1115mm Length STA-01-350HB-1115
Compatible Camera Stands:
-STA-01-360MK2 [*see note regarding reduced loading]
-STA-C01-360 [*see note regarding reduced loading]
-STA-C01-350-TRI [*see note regarding reduced loading]
-STA-01-350 [from July 1 2020 onwards] [*see note regarding reduced loading]
To confirm compatibility please send a picture that indicates the type of interface plate located between the Horizontal carriage and Vertical carriage of your camera stand.
Non-Compatible Camera Stands:
When using Horizontal Arms/Bars that are longer than originally supplied, the load capacity [camera, etc.] must be reduced.
When subjected to a load the horizontal arm acts as a cantilever which carries the mass of the load from the camera plate, as a force into the Horizontal Carriage Bearing. As the Horizontal Arm/Bar is moved further away from the Horizontal Carriage Bearing a force amplifying effect occurs. This can have an adverse affect on the Horizontal Arm/Bar, the Horizontal Bearing Carriage as well as the overall stability of the stand. The nominal load capacity must be reduced by using the following formula:
[STA supplied published stand load capacity / [ Length of New Longer Horizontal Arm/Bar in mm / Length of originally supplied STA Horizontal Arm/Bar in mm] = new full extension load capacity
[ STA-C01-360= 10kg ] / [1500mm / 700mm ] = 4.6 Kg / 10.1 lbs
NOTE: This information only applies to current production STUDIO TITAN products.
• Total Length of Arm / Bar : approx. 1115mm / 43.8 in
• Working Width Horizontal : approx. 955mm / 37.5 in (center of Column to center of Camera plate)
• Recommended Reduced General load capacity : use formula below
[STA supplied published stand load capacity] / [ Length of New Longer Horizontal Arm/Bar in mm / Length of originally supplied STA Horizontal Arm/Bar in mm] = new full extension load capacity
[ C01-360= 10kg ] / [1500mm / 700mm ] = 4.6 Kg / 10.1 lbs
Some assembly is required, please review the set-up & use manual.
Hex key tool is included to complete assembly.
Studio Titan reserves the right to make product changes and improvements as required. As a result the product supplied may not be exactly as pictured or specified.
*Before installation and use of an optional horizontal arm please read the STA_01-350HB_Horizontal_Arm_Bar_ manual. When using an optional horizontal arm, consideration for load reduction and using additional weights / sand bags on the legs of the base are required to prevent instability or a tip over.
