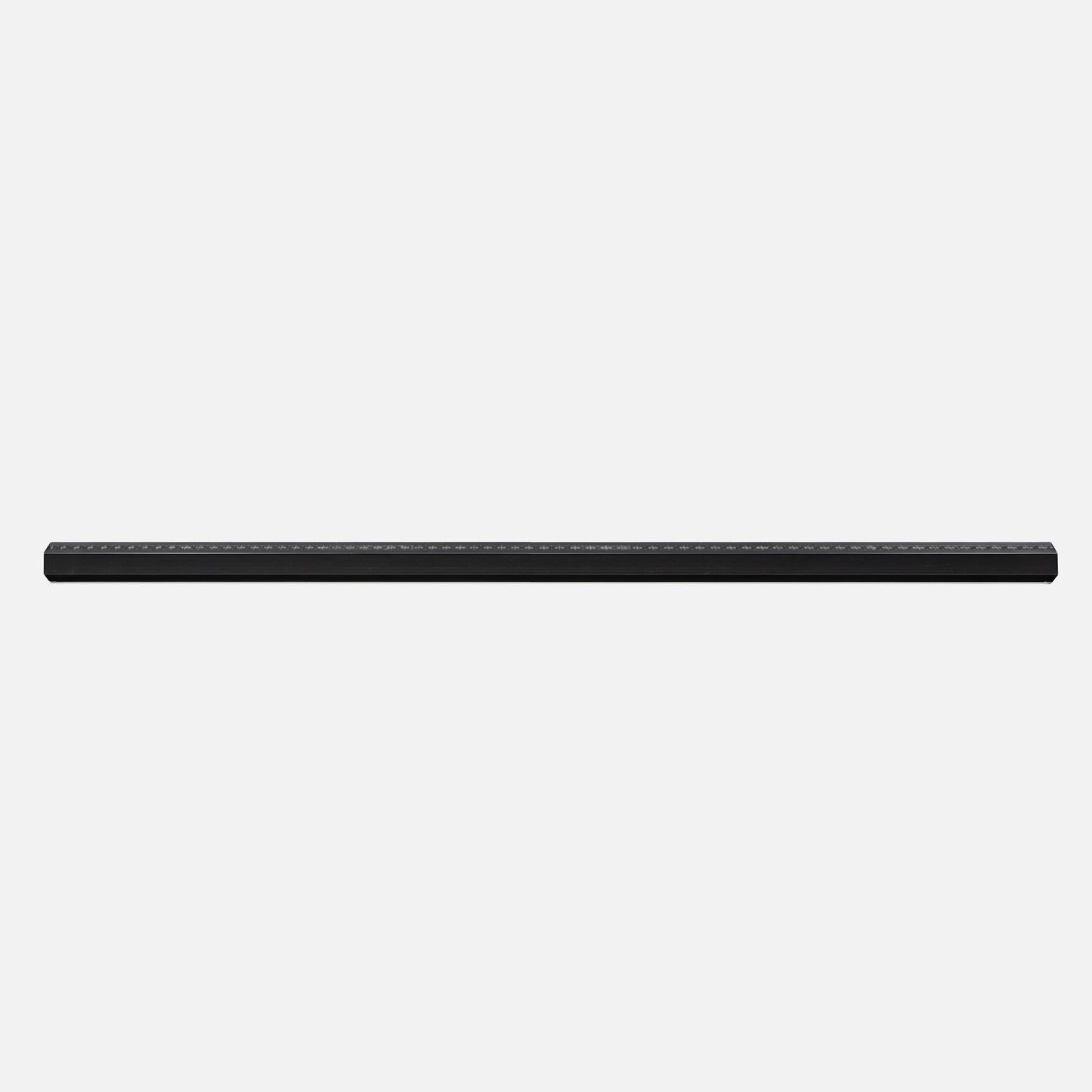

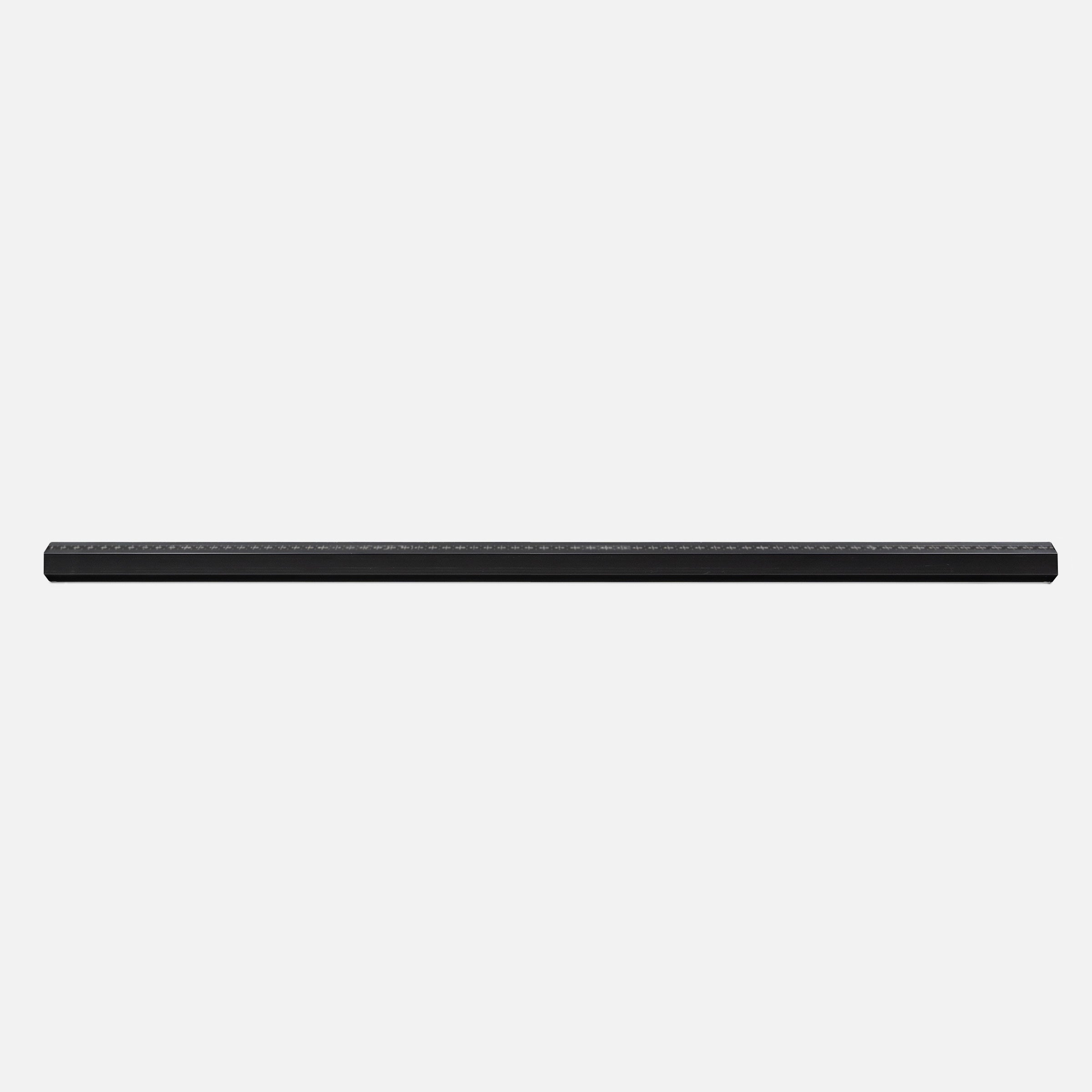

MK2 Horizontal Arm Bar with scale 1500mm Length STA-01-350HB-1500MK2

Compatible Imaging Systems:

• STA-01-350MK2 [*see note regarding reduced loading]
• STA-01-350RMK2 [*see note regarding reduced loading]

Non-Compatible Imaging Systems:

• STA-C01-360
• STA-01-350
• STA-C01-350-TRI
• STA-01-360
• STA-01-360MK2
• STA-01-380

*CAUTION: When using Horizontal Arms/Bars that are longer than originally supplied, the load capacity [camera, etc.] must be reduced.

When subjected to a load the horizontal arm acts as a cantilever which carries the mass of the load from the camera plate, as a force into the Horizontal Carriage Bearing. As the Horizontal Arm/Bar is moved further away from the Horizontal Carriage Bearing a force amplifying effect occurs. This can have an adverse affect on the Horizontal Arm/Bar, the Horizontal Bearing Carriage as well as the overall stability.

The nominal load capacity must be reduced by using the following formula:

[STA supplied published load capacity / [ Length of New Longer Horizontal Arm/Bar in mm / Length of originally supplied STA Horizontal Arm/Bar in mm] = new full extension load capacity

[ STA-01-350MK2= 10kg / 22 lbs ] / [1500mm / 1000mm ] = 6.7 Kg / 14.6 lbs

NOTE: This information only applies to current production STUDIO TITAN products.

Some assembly is required, please review the set-up & use manual. Hex key tool is included to complete assembly.

STA 01-350HB & MK2 Set-up & Use Manual

*Before installation and use of an optional horizontal arm please read the STA_01-350HB_Horizontal_Arm_Bar_ manual. When using an optional horizontal arm, consideration for load reduction and using additional weights / sand bags on the legs of the base are required to prevent instability or a tip over.
