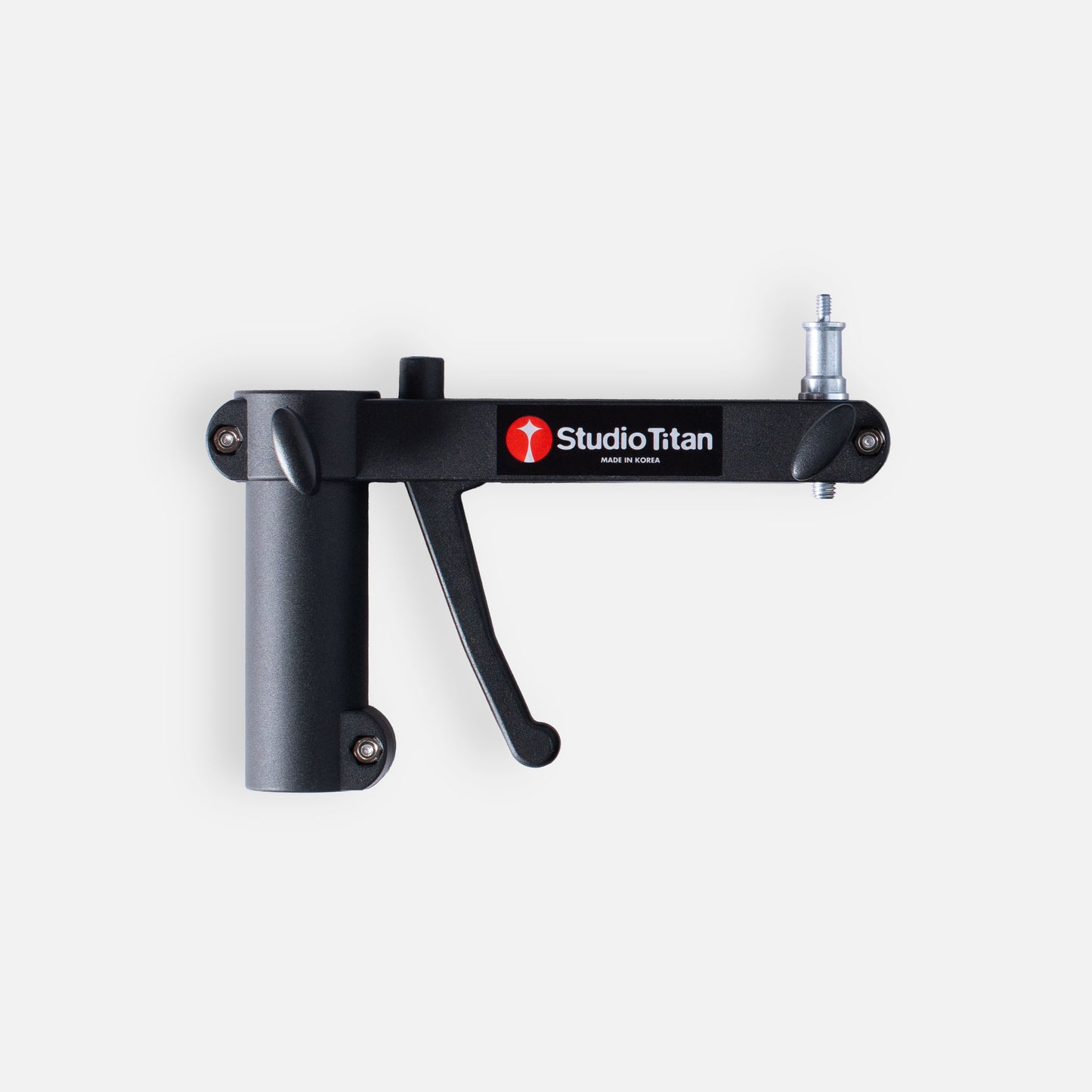

The STA-06-092 Side Kick Pistol Grip is designed to be used with the STA-06-090/D Side Kick and & STA06-093/D Portable Side Kick. This heavy-duty Pistol Grip Platform with attachment stud easily guides a Camera or Strobe up or down the column.  Studio Titan pistol grips are specifically engineered to be rigid and ultralite for portability.  The heavy-duty Pistol Grip includes two locking knobs. The first locking knob prevents unwanted vertical movement when set.  The second locking knob secures the attachment stud.  Ideal for a second camera + strobe or dual strobe or laptop holder configuration.

• Attachment Spigot 5/8th Stud : 3/8th in-16 thread / 1/4 in- 20 thread

• Distance from center for vertical column to center of Spigot :  19 cm / 7.5 inches

• Weight of Pistol Grip : 0.7kg  / 1.5 lbs

Options:
-Small accessory shelf STA-01-397U for notebook computer

-Ball head mounting plate 3/8th thread STA-20-045

-Camera mount plate 1/4" x 20 thread STA-20-045D

*Custom finishes and designs are available, subject to NRE fee and minimum order quantities

Studio Titan reserves the right to make product changes and improvements as required. As a result, the product supplied may not be exactly as pictured or specified.

Materials composition:

-The Pistol Grip is made of aluminum alloy.  The nuts and bolts are made of stainless steel. This product does not contain lead.

PACKAGING with Recyclable Materials:  Studio Titan respects the environment.  When selecting packaging materials, Studio Titan prefers using materials that are recyclable to reduce the environmental impact of its packaging.  The column box blue outer plastic material is Polypropylene, abbreviated as PP, is a recyclable thermoplastic polymer widely used in many different products. PP is rugged. PP's resin identification code is 5, and it is recyclable.  Product boxes and protection edges are made using corrugated cardboard which can be recycled at depots, in municipal curbside collection programs and through private recyclers.  Internal securing foam blocks are made of PE (Polyethylene Foam) – Recyclable. Polyethylene foam products are 100% recyclable. Plastic bags are made of LDPE (Low-Density Polyethylene) – Recyclable plastic (check Local Authority) LDPE can be recycled. However, check with your Local Authority to ensure it is recycled in your area. This is described as a hard flexible plastic. LDPE’s identification code is 4 and it is recyclable. Yellow plastic strapping is made of PET (Polyethylen-terephthalat) – Recyclable. It is fully recyclable and commonly used in logistics.

Recycled Materials used inside the products:  Studio Titan respects the environment.  When manufacturing products, Studio Titan prefers using raw materials that are mixed with recycled materials to reduce the environmental impact of the products. For the Aluminum components: Vertical column, Horizontal column, Legs, Die cast carriages, base, cap and head-mount plates. The typical percentage of recycled aluminum metal to raw aluminum metal is 70% recycled to 30% raw.  This globally adopted ratio provides good strength and finish.  For the Steel components like: circular or square columns, hardware, casters, gears and counterweight. We have confirmed that the steel is made up of recycled materials combined with raw materials.  We are not able to provide the actual percentage of recycled to raw on these components. Each product uses a different ratio based on its particular end use.
