Pre-order - Digital Studio Camera Stand STA-01-380
Pre-order: This product will be shipped when available

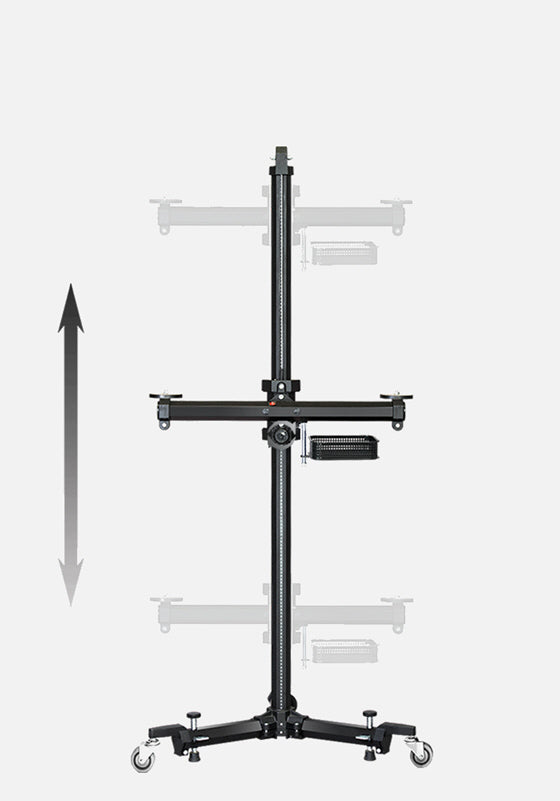

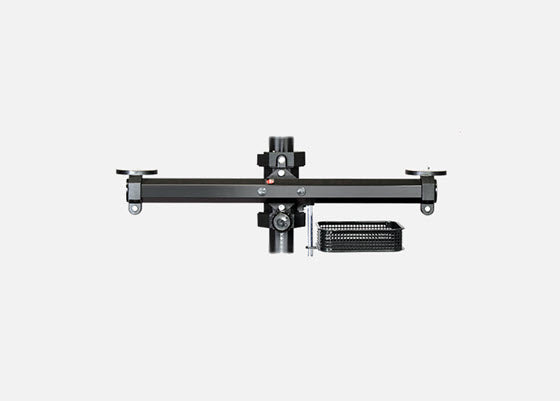

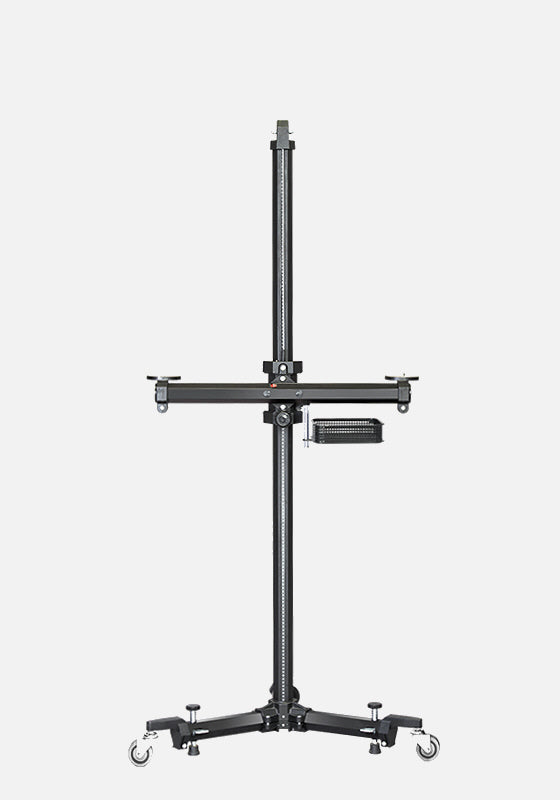

The STA-01-380 is designed for Digital SLR Photography. When compared to other brand products, in a similar size and load capacity, the STA-01-380 provides greater overall stability and smooth, play free movement. It is a perfect size for compact-sized portrait studios. This stand is categorized as 1-axis. The Vertical carriage incorporates smooth rolling ball bearings which provide quick play free Vertical [up/down] positioning of the camera using one knob. The counterweight located inside the vertical column balances the load, allowing the operator to change the vertical camera position using only one hand. The Horizontal arm / bar is fixed. With the supplied hex tool the head mount plate can be loosened and moved to the left or right along the horizontal arm/bar. The foot-operated brake plungers can be locked and unlocked very quickly using only a foot. This provides very rapid repositioning of the stand and quick securing of the base. The STA-01-380 can also pass through a standard doorway which makes it easy to move between classrooms and labs. The two supplied Camera Head Mount Plates are user adjustable. The head mount plate can also be re-positioned around the horizontal arm/bar in the following shooting positions: 0 degrees pointing up as supplied, 60 degrees, 120 degrees, 180 degrees pointing down for tabletop photography, 240 degrees and 300 degrees. One Camera Head Mount Plate can be used to mount the camera head. The second Camera Head Mount Plate can be used to mount a second camera head or the small accessory shelf STA-01-397A for tethered shooting into a notebook computer or tablet.
-User positioned vertical carriage with precision smooth motion ball bearings and secure axis lock with one user brake knob
-Precision-manufactured with attention to detail using CNC machinery.
-Counterweight located inside vertical column balances the load and allows single-handed operation.
-Low center of gravity base with foot-operated brake plungers, quickly secures base and dampens vibrations.
-High quality bearing casters provide easy movement around the studio.
Some assembly is required, please review the set-up & use manual.
Includes essential tools required to complete assembly.
A unique STUDIO TITAN feature not found on other Studio Stands is the vertical column graduated tape scale. The measuring scale provide a point of reference which allows the photographer to log and then quickly re-create a previous set-up.
• Total Height : 177cm / 69.68 in / 5 feet 9.6 in
• Working Height Maximum : 160cm / 62 in (measured from Camera Plate to floor)
• Working Height Minimum : 50cm / 19.7 in (measured from Camera Plate to floor)
• Working Width Horizontal - Left : 35cm / 13.77 in (center of Column to center of Camera plate)
• Working Width Horizontal - Right : 35cm / 13.77 in (center of Column to center of Camera plate)
• Overall Width of Horizontal Arm/Bar - 70cm / 27.5 in (center of Camera plate to center of Camera plate)
• Width : 70cm / 27.5 in
• Weight : 20kg / 44lbs
• Suggested Wheels : 01-360-20-024
• Base Diameter : 85cm / 33.4 in
• Recommended General load capacity : 5kg (10.2lbs)
• Camera Plate Hardware: 3/8th inch - 16 thread
• Includes two Camera Head Mount Plates and Basket as shown
-Small accessory shelf STA-01-397A for notebook computer
-STA-01-390 3-way head
-STA-01-398 Lowering Plate
-Wheel Casters updated mid-2019
Studio Titan reserves the right to make product changes and improvements as required. As a result, the product supplied may not be exactly as pictured or specified.
This product is intended for use by:
1. Professional photographers.
This product is intended for use in a studio, lab or office located indoors on a floor that is smooth, hard, flat and unobstructed. It is designed to be used at all times with a load (Camera or laptop or both). Please refer to the products set-up and use manual for detailed information regarding intended use, set-up guidelines and instructions. When assembly is required, we recommend using an assistant during the initial product set-up.
Assembly Instructions are inside the package. If the assembly instructions are missing or you do not fully understand the instructions stop the assembly and consider the following resources. Visit the “SETUP” area of the website for documentation. Email questions to STA or contact Studio Titan America by phone for further assistance.
The Vertical and Horizontal columns are made of aluminum. The counterweight is S20C steel.
The nuts and bolts are made of steel. The casters are polyurethane. This product does not contain lead.
Note: Due to this products large size and specific packaging and handling requirements it is sold as "non returnable".
PACKAGING with Recyclable Materials: Studio Titan respects the environment. When selecting packaging materials, Studio Titan prefers using materials that are recyclable to reduce the environmental impact of its packaging. The column box blue outer plastic material is Polypropylene, abbreviated as PP, is a recyclable thermoplastic polymer widely used in many different products. PP is rugged. PP's resin identification code is 5, and it is recyclable. Product boxes and protection edges are made using corrugated cardboard which can be recycled at depots, in municipal curbside collection programs and through private recyclers. Internal securing foam blocks are made of PE (Polyethylene Foam) – Recyclable. Polyethylene foam products are 100% recyclable. Plastic bags are made of LDPE (Low-Density Polyethylene) – Recyclable plastic (check Local Authority) LDPE can be recycled. However, check with your Local Authority to ensure it is recycled in your area. This is described as a hard flexible plastic. LDPE’s identification code is 4 and it is recyclable. Yellow plastic strapping is made of PET (Polyethylen-terephthalat) – Recyclable. It is fully recyclable and commonly used in logistics.
Recycled Materials used inside the products: Studio Titan respects the environment. When manufacturing products, Studio Titan prefers using raw materials that are mixed with recycled materials to reduce the environmental impact of the products. For the Aluminum components: Vertical column, Horizontal column, Legs, Die cast carriages, base, cap and head-mount plates. The typical percentage of recycled aluminum metal to raw aluminum metal is 70% recycled to 30% raw. This globally adopted ratio provides good strength and finish. For the Steel components like: circular or square columns, hardware, casters, gears and counterweight. We have confirmed that the steel is made up of recycled materials combined with raw materials. We are not able to provide the actual percentage of recycled to raw on these components. Each product uses a different ratio based on its particular end use.
