Commercial Studio Camera Stand STA-01-350 MK2-360SPIN

Commercial Studio Camera Stand STA-01-350 MK2-360SPIN

Regular price $10,999

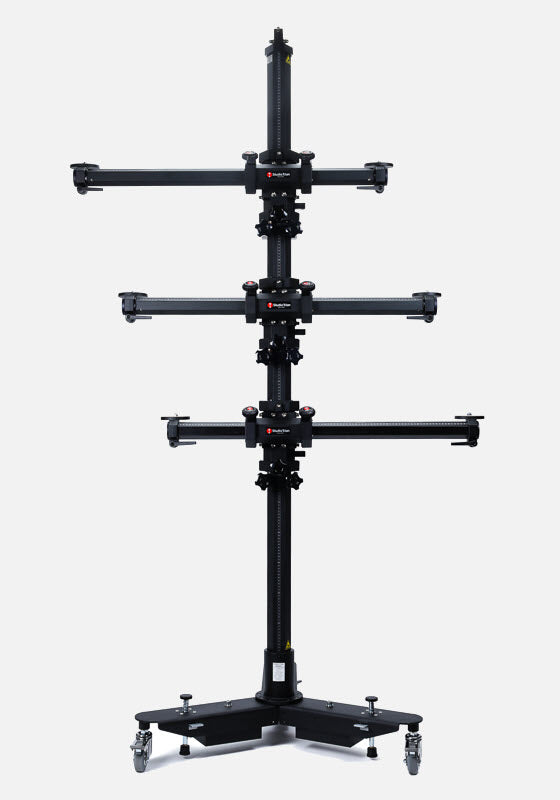

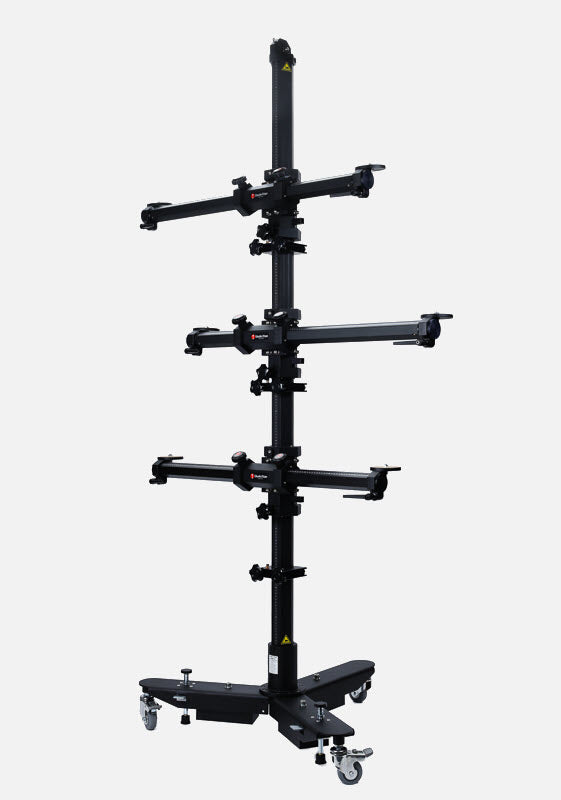

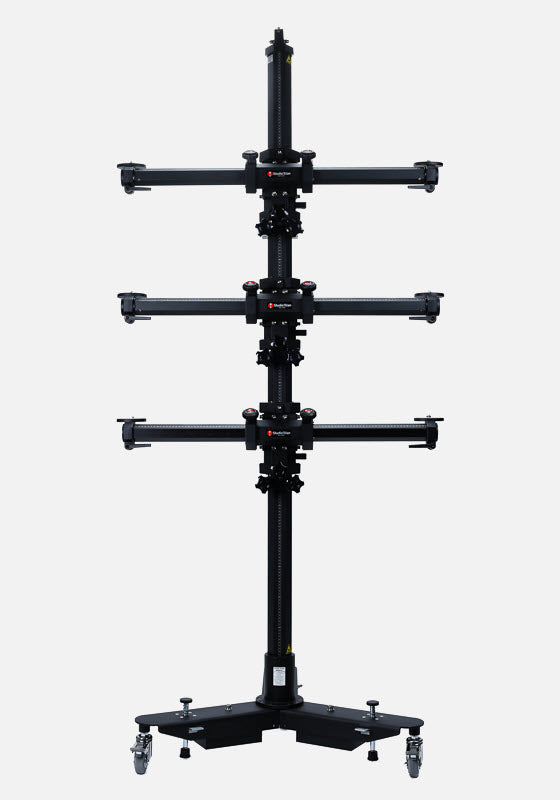

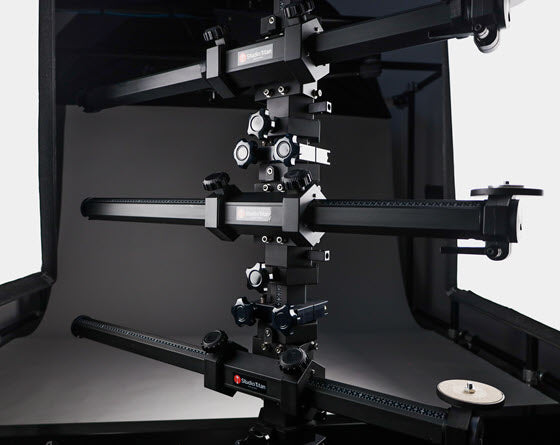

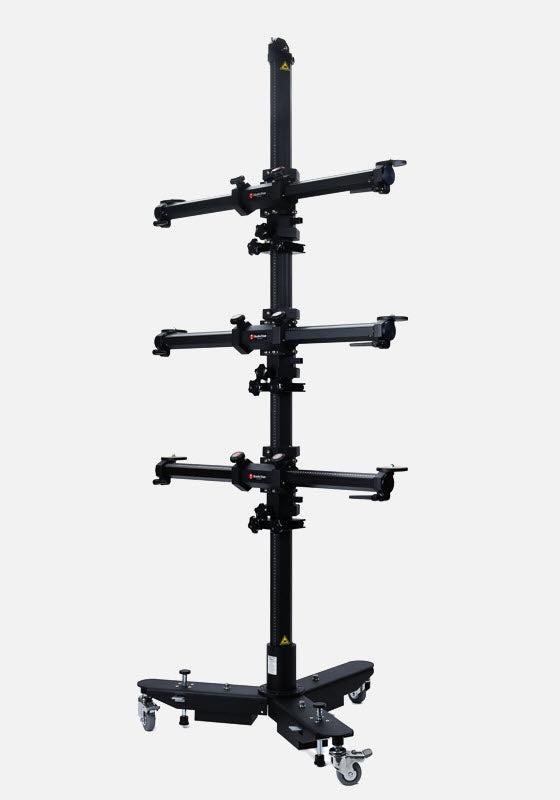

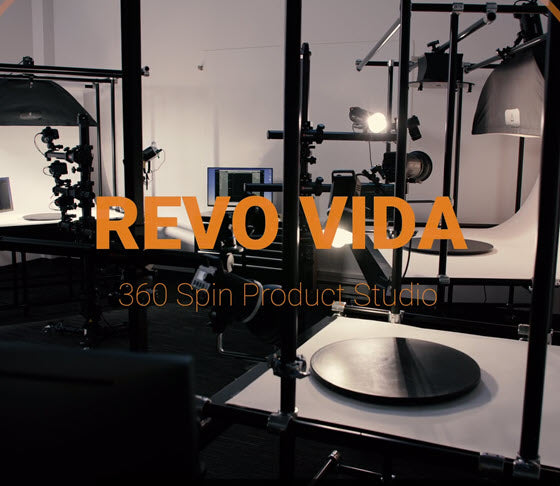

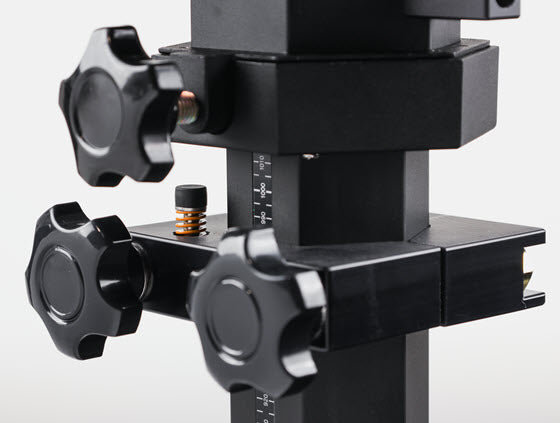

The STA 01-350 MK2-360SPIN is designed for 360 Spin Photography.  Developed in conjunction with REVO NORTH AMERICA for the VIDA STUDIO - 360 quick spin product photography platform.  The STA 01-350 MK2-360SPIN provides three horizontally aligned arms, each arm accommodates one camera for a total of three cameras on a single stand.  For 360 SPIN photography applications it is critical that all cameras are aligned in the same  vertical plane.  With Studio Titan,  Camera alignment is maintained as the vertical carriages travel along the hexagon shaped vertical column.  Other brands use circular vertical columns that do not maintain vertical camera alignment.  The STA 01-350 MK2-360SPIN provides rapid horizontal and vertical camera positioning to accommodate all sizes and shapes of objects.  Tape scales are provided on the arms and vertical column for precise and repeatable set-up.  The Stand includes three STA 01-350MK2-TS user positionable clamp-on travel stops with spring type shock absorber.  The travel stop is used below the arm to set the arms lower travel and to avoid collision with another arm.  Due to the design the stand is not supplied with an internal counterweight.   The center column height is 240cm/94.4 inches.  The horizontal arm widths are specified below.  The base is supplied with Leg Weight Set STA-01-350LW-15 for added stability.  The STA-01-350LW-15 is an all steel, covert "Bolt Under" leg weight set. Three individual steel weights, that weigh 15Kg ea / 33lbs ea, bolt up and into each leg providing a total of 45kg/99lbs of additional weight inside the base.  This stand provides vertical and horizontal movement of the camera. Vertical [up/down] travel is provided by the vertical carriage. Horizontal arm / bar [left/right] extension is provided by the horizontal carriage.  The Camera Head Mount Plate is adjustable, anywhere from 0-360 degrees around the horizontal bar/arm.

-User positioned vertical carriage with precision smooth motion ball bearings and  secure axis lock with one user brake knob

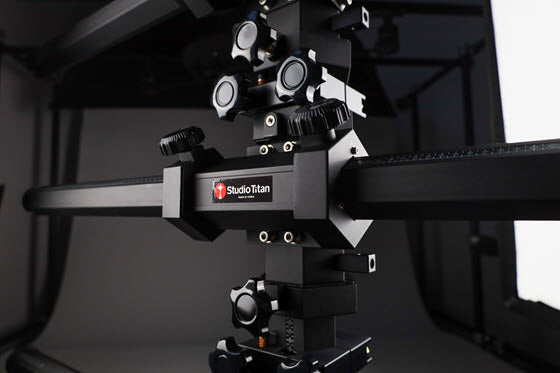

-User positioned Horizontal arm / bar carriage with precision smooth motion ball bearings and secure axis lock with two user brake knobs

-Precision-manufactured with attention to detail using CNC machinery.

-This stand is not supplied with a Counterweight.

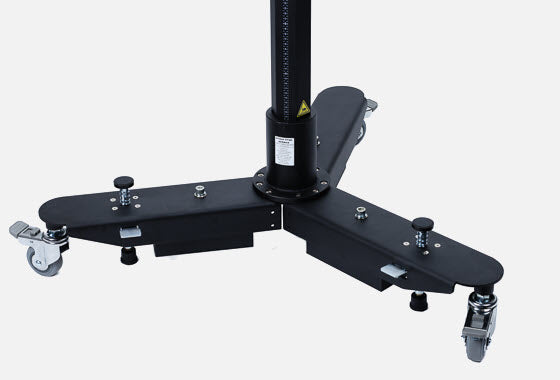

-Low center of gravity base with foot-operated brake plungers, quickly secures base and dampens vibrations.

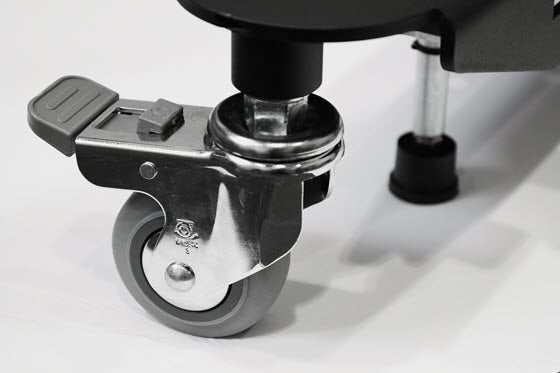

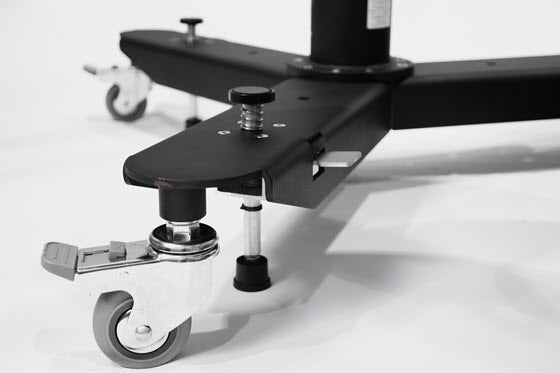

-Premium Dual Stage bearing casters provide easy movement around the studio. The dual-stage foot brake stops both the wheel from rotating and the caster housing from swivelling, preventing unwanted movement.

Some assembly is required, please review the set-up & use manual.

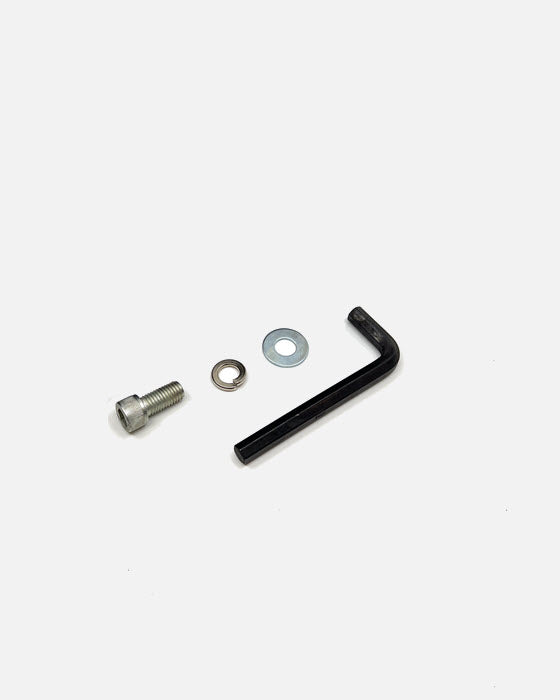

Includes essential tools required to complete assembly.

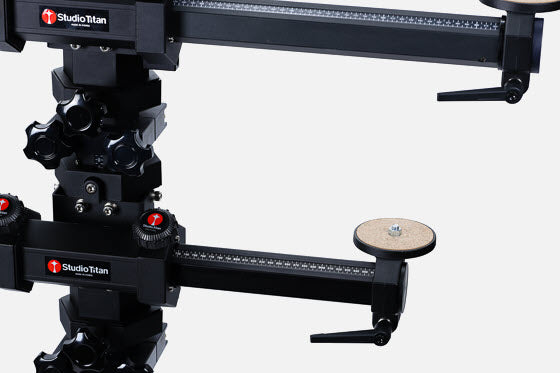

A unique Studio Titan feature not found on other Studio Stands is the vertical and horizontal column graduated tape scales.  The measuring scales provide a point of reference which allows the photographer to log and then quickly re-create a previous set-up.

Total Height : 240cm / 94.4 in
• Working Height Maximum : 220cm / 86.6 in (measured from Camera Plate to floor)
• Working Height Minimum : 50cm / 19.7 in (measured from Camera Plate to floor)
• Arm 1 - 1000mm - Working Width Horizontal - Fully Extended to one side of the vertical column : 83.5cm / 32.8 in (center of Column to center of Camera plate)
• Arm 2 - 1000mm - Working Width Horizontal - Fully Extended to one side of the vertical column : 83.5cm / 32.8 in (center of Column to center of Camera plate)
• Arm 3 - 700mm - Working Width Horizontal - Fully Extended to one side of the vertical column : 55cm / 21.6 in (center of Column to center of Camera plate)
• Width : 100cm / 39.3 in
• Weight : 122kg / 270lbs (including STA 01-350LW -15 [3 x 15kg / (33LB) integrated leg weight set])

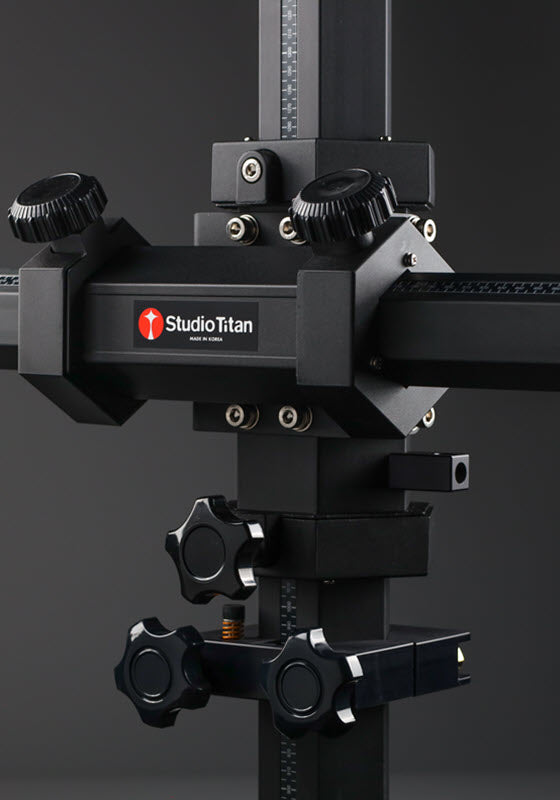

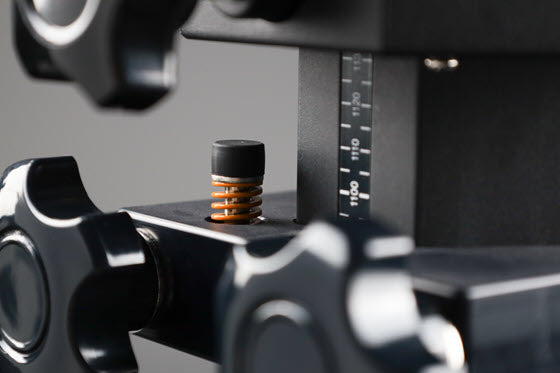

• Includes Three STA 01-350MK2-TS: User Positionable Clamp-on Travel Stop with spring type shock absorber
• Suggested Wheels : 01-350-20-024
• Base Diameter : 100cm / 39.3 in
• Recommended General total load capacity : Total: 15kg (33lbs)
• Recommended General load capacity for each arm : Per Arm: 5kg (11lbs)
• Camera Plate Hardware : 3/8th inch - 16 thread
• Includes : Six Camera Head Mount Plates and Basket as shown
• Caster wheel diameter: 76mm / 3 in



Options:

-Large accessory shelf STA-01-395 for notebook computer

-Small accessory shelf STA-01-397A for notebook computer

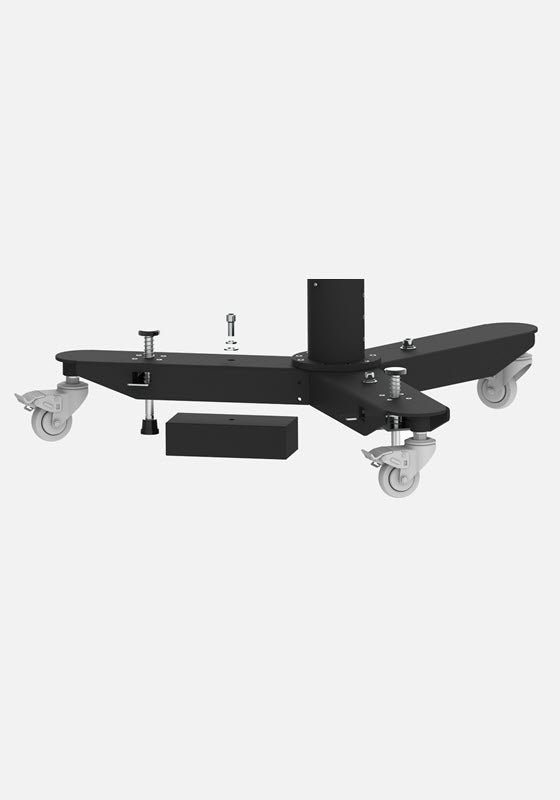

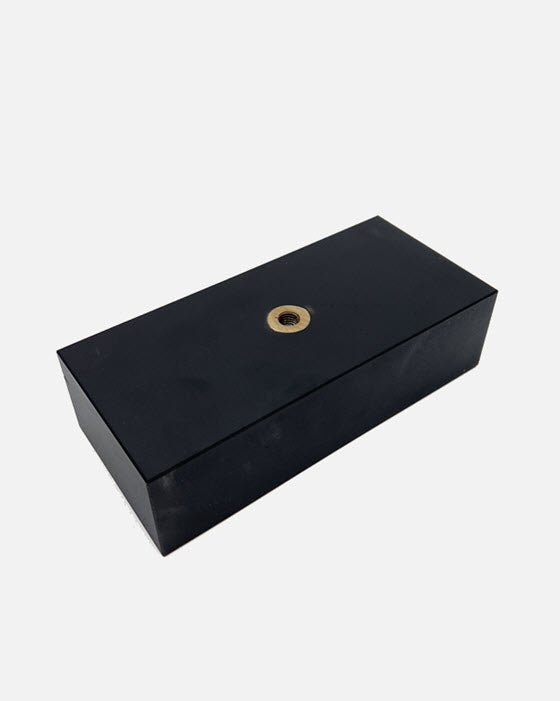

-Leg Weight set STA 01-350LW  3 x 7Kg / 15lb/ea. bolt on internal steel leg weights

-STA-01-390 3-way head

-STA-01-398 Lowering Plate

Studio Titan reserves the right to make product changes and improvements as required. As a result, the product supplied may not be exactly as pictured or specified.

*Before installation and use of an optional horizontal arm please read the STA_01-350HB_Horizontal_Arm_Bar_ manual.  When using an optional horizontal arm, consideration for load reduction and using additional weights / sand bags on the legs of the base are required to prevent instability or a tip over.

Q: What is our innovation and why is it better?
A: SMOOTH Ball Bearing Movements
The horizontal arm and vertical carriage glide effortlessly on 24 calibrated metal ball bearings.  Smooth all ball bearing movements are beneficial when shooting with high resolution cameras and camera backs.
Other stands, that don't use ball bearings have too much play and don't provide smooth movements.

Q: I already have a tripod, do I need a Studio Titan Stand?
A: In today's dynamic studio environment, a top-notch studio stand is an absolute game-changer. It's not just about offering rock-solid support for cameras of all formats; it's the key to achieving seamless and time-efficient camera positioning that outshines traditional tripods.  Imagine effortlessly taking your camera from floor to ceiling in a matter of seconds, traversing the entire studio in minutes, or instantly recreating the exact perspective you captured weeks ago—all thanks to a cutting-edge Studio Titan Stand.  When it comes to speed, ease, and precision in camera support, nothing beats the modern studio stand. It's a must-have for anyone seeking efficiency and perfection in their studio work.

Intended use:

This product is intended for use by:

1. Professional and commercial photographers.

2. Technicians and quality control personnel.

This product is intended for use in a studio, lab or manufacturing environment with a high ceiling, indoors on a floor that is smooth, hard, flat and unobstructed. It is designed to be used at all times with a load (Camera or laptop or both).  Please refer to the products set-up and use manual for detailed information regarding intended use, set-up guidelines and instructions. When assembly is required, we recommend using an assistant during the initial product set-up.

Assembly Instructions are inside the package. If the assembly instructions are missing or you do not fully understand the instructions stop the assembly and consider the following resources. Visit the “SETUP” area of the website for documentation. Email questions to STA or contact Studio Titan America by phone for further assistance.

Material composition:

The Vertical and Horizontal columns are made of aluminum.  The counterweight is S20C steel.

The nuts and bolts are made of steel.  The casters are polyurethane. This product does not contain lead.

Note: Due to this products large size and specific packaging and handling requirements it is sold as "non returnable".

PACKAGING with Recyclable MaterialsStudio Titan respects the environment.  When selecting packaging materials, Studio Titan prefers using materials that are recyclable to reduce the environmental impact of its packaging.  The column box blue outer plastic material is Polypropylene, abbreviated as PP, is a recyclable thermoplastic polymer widely used in many different products. PP is rugged. PP's resin identification code is 5, and it is recyclable.  Product boxes and protection edges are made using corrugated cardboard which can be recycled at depots, in municipal curbside collection programs and through private recyclers.  Internal securing foam blocks are made of PE (Polyethylene Foam) – Recyclable. Polyethylene foam products are 100% recyclable. Plastic bags are made of LDPE (Low-Density Polyethylene) – Recyclable plastic (check Local Authority) LDPE can be recycled. However, check with your Local Authority to ensure it is recycled in your area. This is described as a hard flexible plastic. LDPE’s identification code is 4 and it is recyclable. Yellow plastic strapping is made of PET (Polyethylen-terephthalat) – Recyclable. It is fully recyclable and commonly used in logistics.

Recycled Materials used inside the products:  Studio Titan respects the environment.  When manufacturing products, Studio Titan prefers using raw materials that are mixed with recycled materials to reduce the environmental impact of the products. For the Aluminum components: Vertical column, Horizontal column, Legs, Die cast carriages, base, cap and head-mount plates. The typical percentage of recycled aluminum metal to raw aluminum metal is 70% recycled to 30% raw.  This globally adopted ratio provides good strength and finish.  For the Steel components like: circular or square columns, hardware, casters, gears and counterweight. We have confirmed that the steel is made up of recycled materials combined with raw materials.  We are not able to provide the actual percentage of recycled to raw on these components. Each product uses a different ratio based on its particular end use.

CLICK here for STA 01-350MK2 Set-up & Use Manual
