DUAL PISTOL GRIP VERSION

Product update: The caster wheels have been updated, new Premium Dual Stage casters are shown in the images at the bottom of the page

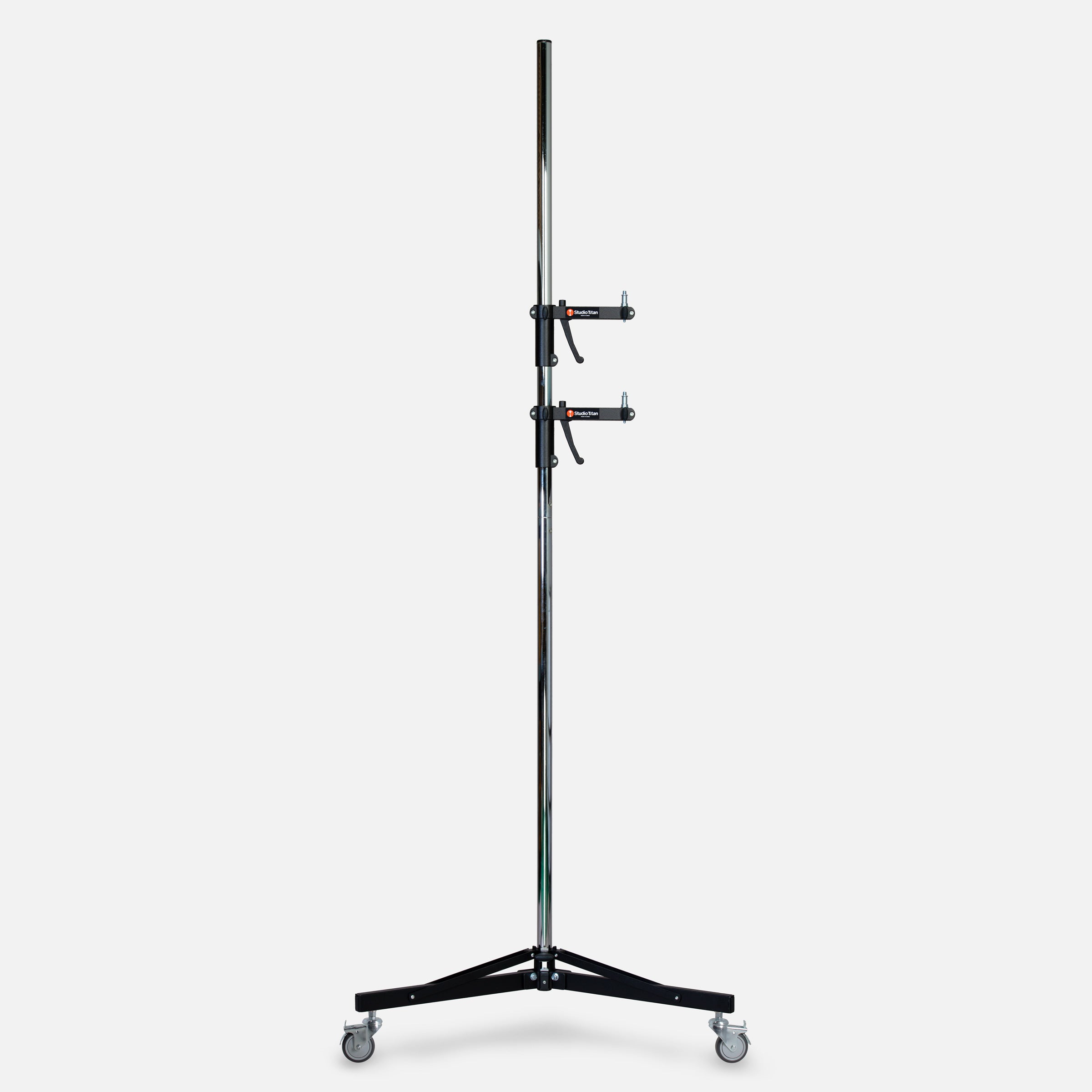

The STA-06-090DL (Lighting) is designed for the Professional Photographer and engineered for daily use. The STA-06-090DL (Lighting) is supplied with a steel safety tether cable designed to hold overhead Strobes and LED Continuous lighting.  A conventional lighting stand or C-stand is the gold standard but has several drawbacks that are just accepted. For example: 1. You cannot position the strobe close to the ground.  2. They both require a lot of fiddling to set-up which uses a great deal of your valuable studio time. 3. They are both difficult to re-position easily, they have to be dragged or lifted. 4. It's impossible to make small vertical adjustment for fine tuning 5. They are not designed to support a dual or triple strobe set-up.  The STA-06-090DL (Lighting) provides functionality and saves time: 1. It allows you to position the strobe using the pistol grip anywhere along the  vertical column.  Either very close to the ground or at the top.  2. One knob opens and locks the base. 3. Locking casters allow quick re-positioning and are supplied as standard.  4. The pistol grip allows very fine vertical adjustments to be made easily.  5. The STA-06-090DL (Lighting) is designed to be expanded by adding a third pistol grip. The STA-06-090DL (Lighting) side kick column material is made of STEEL not Aluminum. The side kick provides a payload capacity of 20kgs/44lbs, which is more than double when compared to other stands.  Stands with Aluminum columns dent, ding and scratch more easily when compared to STEEL. STEEL is stronger, 2.5 times more dense than Aluminum, less likely to warp, deform or bend under weight and force. The heavy-duty Pistol Grip Platform with attachment stud, easily guides a Strobe up or down the column.  Studio Titan pistol grips are specifically engineered to be rigid and ultralite for portability.  The heavy-duty Pistol Grip includes two locking knobs. The first locking knob prevents unwanted vertical movement when set. The second locking knob secures the attachment spigot / stud.  When the center column is set to the lowest position or in "Parking Mode" the side-kick remains stationary on a flat surface without locking the casters. Use "Parking Mode" when small movements are needed to find the best position.  A perfect stand for fashion, portrait and event lighting. One heavy-duty Pistol Grip platform with attachment stud is supplied with the stand.  Additional heavy-duty Pistol Grips are sold separately for dual strobe configuration.

Some assembly is required, please review the set-up & use manual.

Includes essential tools required to complete assembly.

Precision-manufactured with attention to detail.

Low center of gravity base.

Premium Dual Stage casters provide easy movement around the studio. The dual-stage foot brake stops both the wheel from rotating and the caster housing from swivelling, preventing unwanted movement.

Maximum evenly distributed load on level ground: 20kg/44lbs

• Total Height : 232cm / 91.3 in
• Working Height Maximum : 232cm / 91.3 in (measured from top of PISTOL GRIP to floor)
• Working Height Minimum : 34cm / 13.3 in (measured from top of PISTOL GRIP to floor)
• Shaft Diameter : 35mm / 1.378 in (material: Steel)
• Suggested Wheels : 01-090-20-023
• Base column section approx. height : 1105mm / 43.5 in
• Upper column section approx. height : 1105mm / 43.5 in
• Weight : 8kg / 17.6lbs
• Weight Pistol Grip : 0.7kg  / 1.5 lbs
• Suggested Wheels : 01-090-20-023
• Base Diameter : 100cm / 39.3 in
• Recommended General load capacity : 20kg (44lbs)
• Attachment Spigot 5/8th Stud : 3/8th in-16 thread / 1/4 in- 20 thread

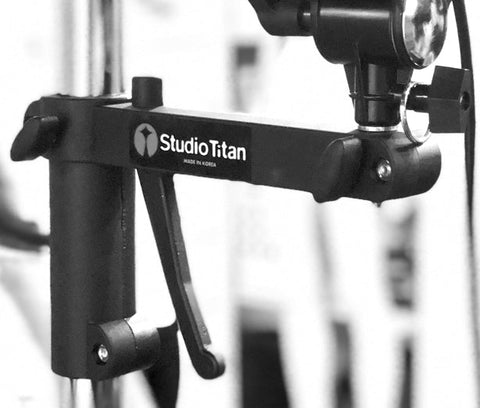

• Pistol Grip : distance from center of vertical column to center of Spigot: 19cm / 7.5 inches

Options:
-Third heavy-duty Pistol Grip Platform with attachment spigot / stud

 -Ball head mounting plate 3/8th thread STA-20-045

-Camera mount plate 1/4" x 20 thread STA-20-045D

Studio Titan reserves the right to make product changes and improvements as required. As a result, the product supplied may not be exactly as pictured or specified.

Intended use:

This product is intended for use by:

1. Professional and commercial photographers.

2. Technicians and quality control personnel.

This product is intended for use in a studio, lab or manufacturing environment with a high ceiling, indoors on a floor that is smooth, hard, flat and unobstructed.  Please refer to the products set-up and use manual for detailed information regarding intended use, set-up guidelines and instructions. When assembly is required, we recommend using an assistant during the initial product set-up.

Assembly Instructions are inside the package. If the assembly instructions are missing or you do not fully understand the instructions stop the assembly and consider the following resources. Visit the “SETUP” area of the website for documentation. Email questions to STA or contact Studio Titan America by phone for further assistance.

Materials composition:

-The Vertical column is made of steel.  The Pistol Grip is made of aluminum alloy.  The nuts and bolts are made of stainless steel. The casters are made of polyurethane. This product does not contain lead.

PACKAGING with Recyclable Materials:  Studio Titan respects the environment.  When selecting packaging materials, Studio Titan prefers using materials that are recyclable to reduce the environmental impact of its packaging.  The column box blue outer plastic material is Polypropylene, abbreviated as PP, is a recyclable thermoplastic polymer widely used in many different products. PP is rugged. PP's resin identification code is 5, and it is recyclable.  Product boxes and protection edges are made using corrugated cardboard which can be recycled at depots, in municipal curbside collection programs and through private recyclers.  Internal securing foam blocks are made of PE (Polyethylene Foam) – Recyclable. Polyethylene foam products are 100% recyclable. Plastic bags are made of LDPE (Low-Density Polyethylene) – Recyclable plastic (check Local Authority) LDPE can be recycled. However, check with your Local Authority to ensure it is recycled in your area. This is described as a hard flexible plastic. LDPE’s identification code is 4 and it is recyclable. Yellow plastic strapping is made of PET (Polyethylen-terephthalat) – Recyclable. It is fully recyclable and commonly used in logistics.

Recycled Materials used inside the products:  Studio Titan respects the environment.  When manufacturing products, Studio Titan prefers using raw materials that are mixed with recycled materials to reduce the environmental impact of the products. For the Aluminum components: Vertical column, Horizontal column, Legs, Die cast carriages, base, cap and head-mount plates. The typical percentage of recycled aluminum metal to raw aluminum metal is 70% recycled to 30% raw.  This globally adopted ratio provides good strength and finish.  For the Steel components like: circular or square columns, hardware, casters, gears and counterweight. We have confirmed that the steel is made up of recycled materials combined with raw materials.  We are not able to provide the actual percentage of recycled to raw on these components. Each product uses a different ratio based on its particular end use.

 CLICK here for STA 06-090 Set-up & Use Manual
