Rack & Pinion Geared Crank Stand - Two Pack STA-06-200TP

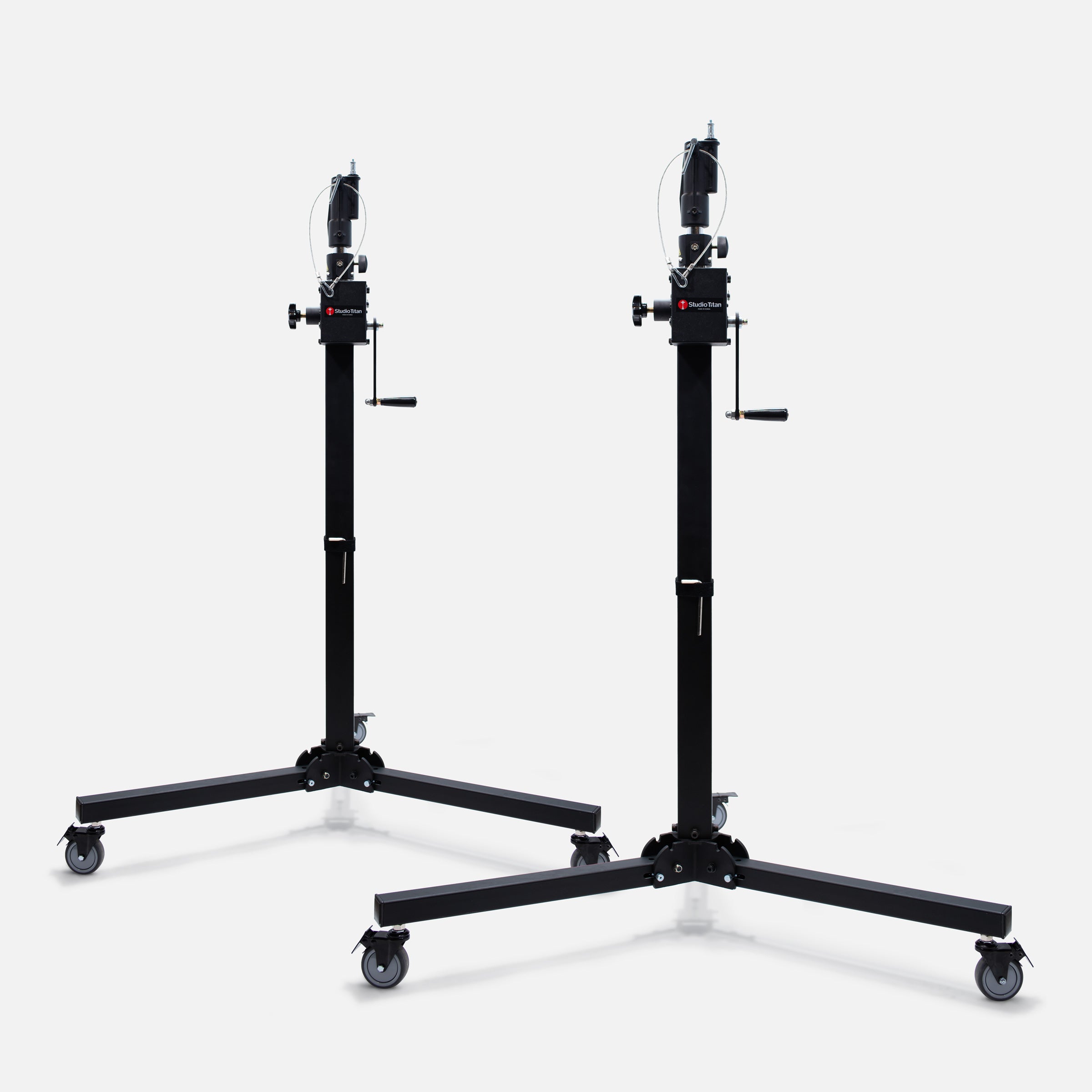

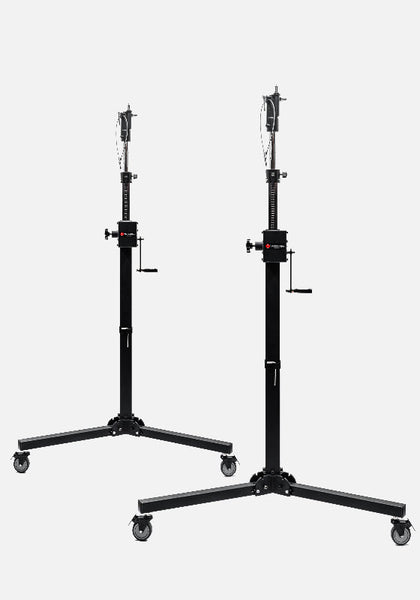

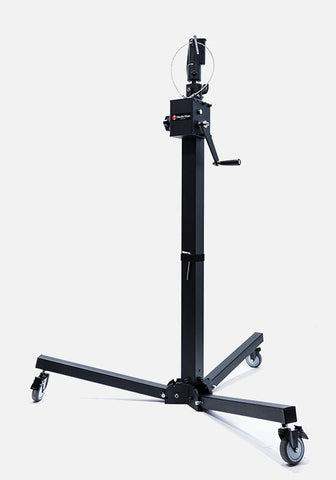

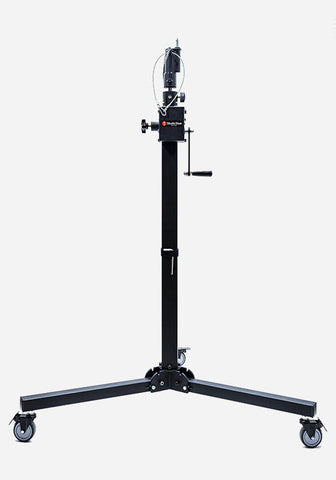

The STA-06-200TP V2* includes two Rack & Pinion Geared Crank Stands

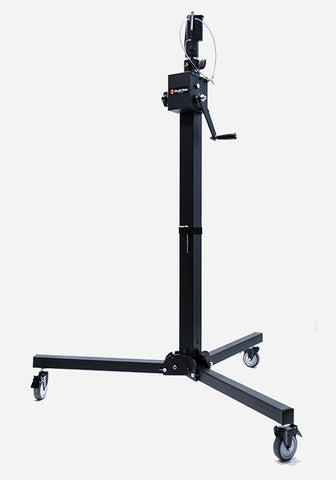

The STA-06-200 V2* Rack & Pinion Geared Crank Stand provides a true "rack and pinion" commercial studio-grade solution. Most photographers can immediately tell you how many megapixels their camera sensors have, but they can't tell you what's inside their crank stand or why it matters?
A true "rack and pinion" Geared Crank Stand is beyond the budget of most mid size studios, it can sell for $3000.00-$5000.00 dollars and provides a lifting capacity of 150-200 lbs. A "CABLE type" Geared Crank Stand is more often within the budget of a typical size studio, it sells for $500.00-$900.00 dollars and provides a lifting capacity of 60-90 lbs.
Why does it matter?
Simply said, a true "rack and pinion" is fail-safe*. It is designed to prevent the load from crashing down during normal operation or if the mechanism fails. A "CABLE type" mechanism can slowly fray and break without providing the user with any warning before the light comes crashing down. For studios that are concerned with safety and protecting their lighting investment, they now have a reasonable option for consideration. "CABLE type" failure condition can be simulated with a C-stand by loading it, extending it, and then releasing the vertical column lock knob.
The STA-06-200 Rack & Pinion Geared Crank Stand using a true "rack and pinion", design objective was to provide a high quality, budget-friendly product accessible to all studios.
Features & Benefits

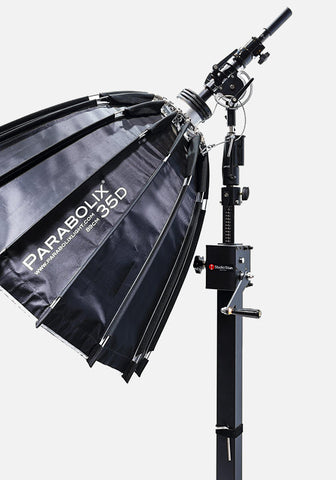

The STA-06-200 Rack & Pinion Geared Crank Stand provides a 110 lb lifting load capacity. Compared to a C-Stand, it provides a 6x greater load capacity than a C-Stand, which is rated for approximately 18 lbs. A typical strobe set-up with parabolic modifier weighs 25-40lbs. A typical HMI Daylight set-up can weigh as much as 50-75 lbs. The STA-06-200 Rack & Pinion Geared Crank Stand enables any operator to independently lift, lower, re-position lighting, safely, quickly, and easily, using only ONE HAND with very little effort. Everyone who uses C-stands is aware of what can happen. The STA-06-200 Rack & Pinion Geared Crank Stand reduces hand, elbow, and back fatigue that is typically associated with the unfriendly ergonomics when lifting and lowering, lightning on C-Stands.

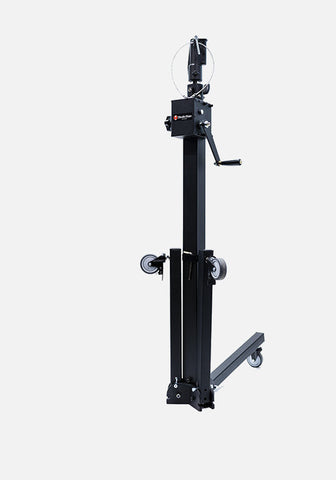

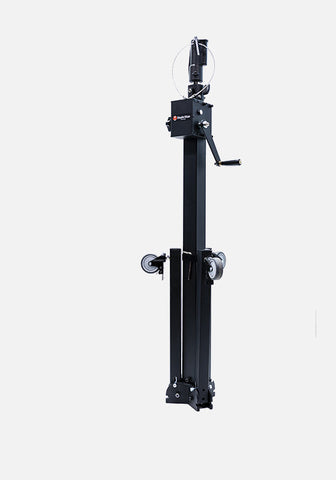

The STA-06-200 Rack & Pinion Geared Crank Stand allows studio lighting to be reconfigured very quickly with minimum effort. The included wheel casters are quickly locked and unlocked by foot. The STA-06-200 Rack & Pinion Geared Crank Stand legs can be folded together quickly, for efficient storage, without special tools.

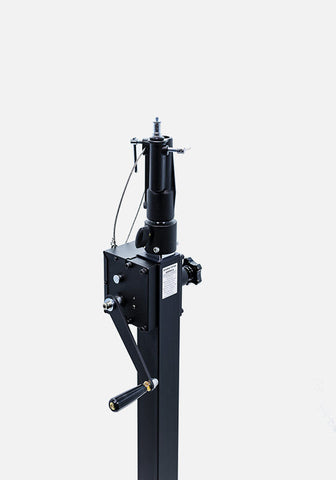

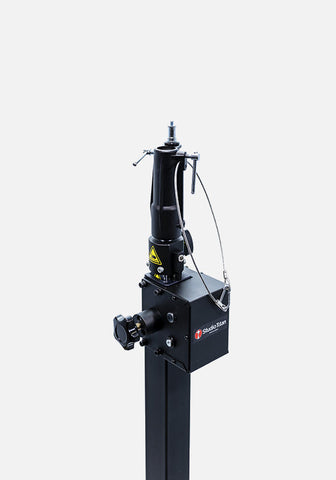

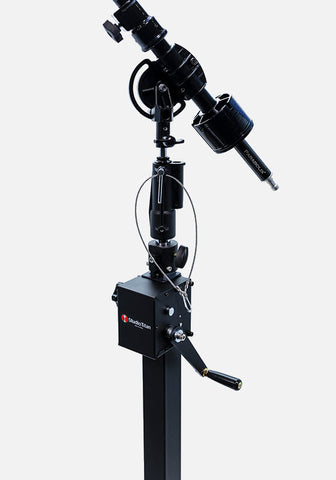

The STA-06-200 Rack & Pinion Geared Crank Stand mechanism incorporates two separate and independent braking systems. The first system is a mechanical fail-safe disk brake that detects and prevents unwanted downward movement. The second system is a physical brake that locks the column in place which the user engages by turning a knob**.

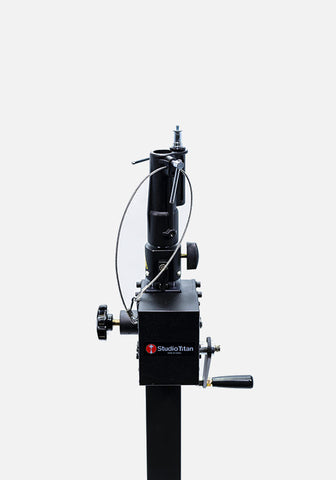

The STA-06-200 Rack & Pinion Geared Crank Stand is manufactured with CNC machinery to ensure accuracy and dependability. The square tube design was chosen over a round tube for strength. There is more material in a 2" square tube than there is in a 2" round tube of the same wall thickness. The square tube has a stronger beam strength and is also stronger in both compression and tension, making it ideal for lifting and safely holding booms as well as premium strobes, continuous lighting fixtures and large parabolic modifiers.

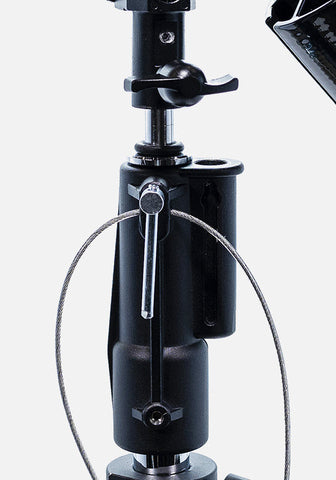

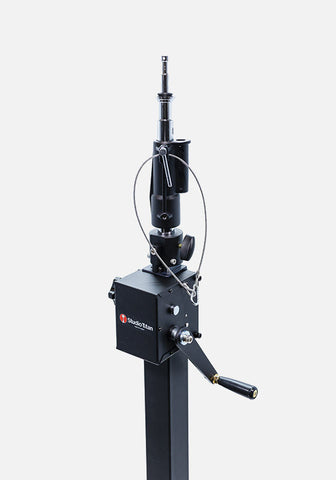

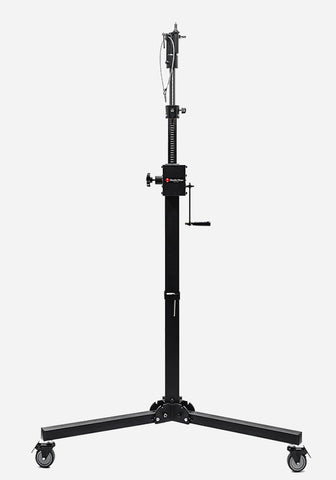

The heart of the STA-06-200 Rack & Pinion Geared Crank Stand is a chain rack and pinion gear drive mechanism. The CNC manufactured gear system provides smooth movement and many years of reliable use without the need for maintenance.
The low profile rolling base is ideal for use in Studio, underneath furniture, vehicles and low clearance set-ups.
Technical theory of operation:
Cable type or Wind Up Stands VS Rack & Pinion Geared Crank Stands
Cable type or Wind Up Stands are the most common type of assisted stand. They typically use an internal cable or wire rope wound around a pulley to lift the internal support columns which extend upwards. Over time, wire cables can stretch, fray, fatigue and break, therefore wind-up stands are not categorized as “fail safe” or recommended for use with professional imaging systems.
Geared Crank Stands are designed to be “safe”. The gear system is modelled after a more robust, industrial design where failure modes are taken into consideration. The all-metal chain rack and pinion gearing system used in the STA-06-200 Rack & Pinion Geared Crank Stand provides a superior stand with a high load capacity that is both dependable and safe.

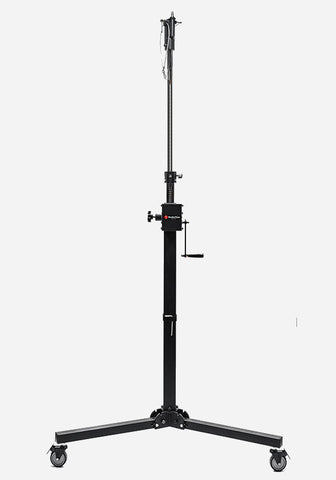

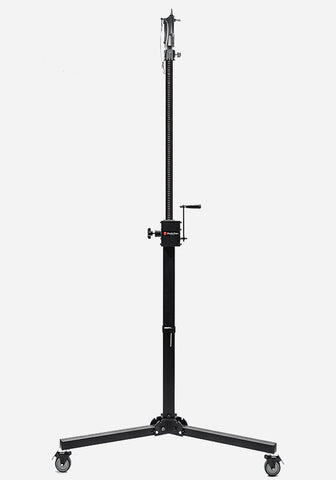

• Maximum Working Height : 284 cm / 112 in / 9.3 ft *
• Minimum Working Height : 130 cm / 51.2 in / 4.2 ft
• Lifting System : Winch Gearbox [chain rack and pinion gear drive]
• Locking System : Internal self-locking Disc Brake in gearbox with additional external user engaged brake
• Lower Column : Square Tube - Width: 6 cm x 6 cm / 2.36 in x 2.36 in
• Upper Column : Square Tube - Width: 4 cm x 4 cm / 1.57 in x 1.47 in
• Diameter of Legs : 110 cm / 43.3 in
• Width when folded : 60 cm / 23.62 in
• Wheels : 3 inch with double locking system
• Material : (Column, Base Plate and Legs): Steel
• Weight : 19 kg / 41.8 lbs
• Load Capacity : 50 kg / 110 lbs)
• Travel: One Rotation of the hand crank = 9.4cm / 3.7 in of upward / downward travel
• Mounting Receiver Size : Junior & retractable 5/8th Baby / Spigot

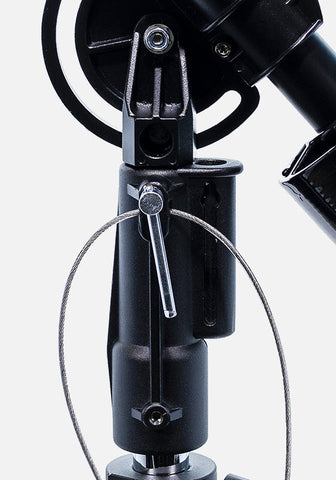

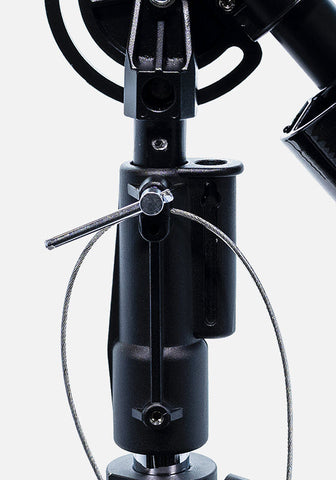

*V3 [Version 3 includes new heavy duty receiver design with integrated telescoping extension column. This new design eliminates unwanted movement. New base with legs that fold upwards parallel with column for compact storage]
**Always use the external brake when parking and securing the load
Studio Titan reserves the right to make product changes and improvements as required. As a result, the product supplied may not be exactly as pictured or specified.
This product is intended for use by:
1. Professional and commercial photographers.
2. Technicians and quality control personnel.
This product is intended for use in a studio, lab or manufacturing environment with a high ceiling, indoors on a floor that is smooth, hard, flat and unobstructed. It is designed to be used at all times with a load (Camera or laptop or both). Please refer to the products set-up and use manual for detailed information regarding intended use, set-up guidelines and instructions. When assembly is required, we recommend using an assistant during the initial product set-up.
Assembly Instructions are inside the package. If the assembly instructions are missing or you do not fully understand the instructions stop the assembly and consider the following resources. Visit the “SETUP” area of the website for documentation. Email questions to STA or contact Studio Titan America by phone for further assistance.
The Vertical column and legs are made of steel. The nuts and bolts are made of steel. The gear chain is made of steel. The casters are polyurethane. This product does not contain lead.
