Double Beam Boom LARGE - STA 05-031

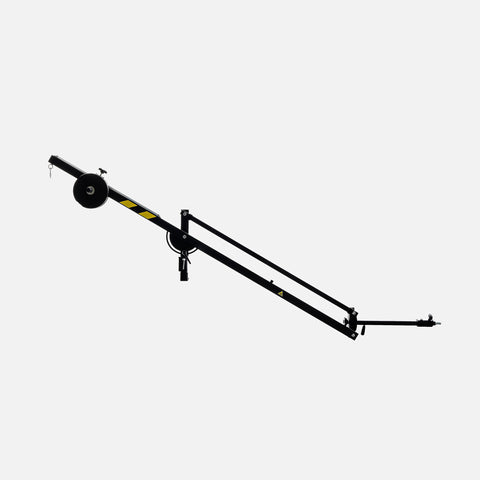

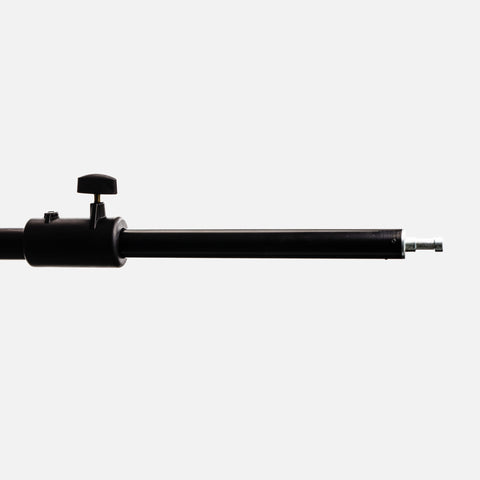

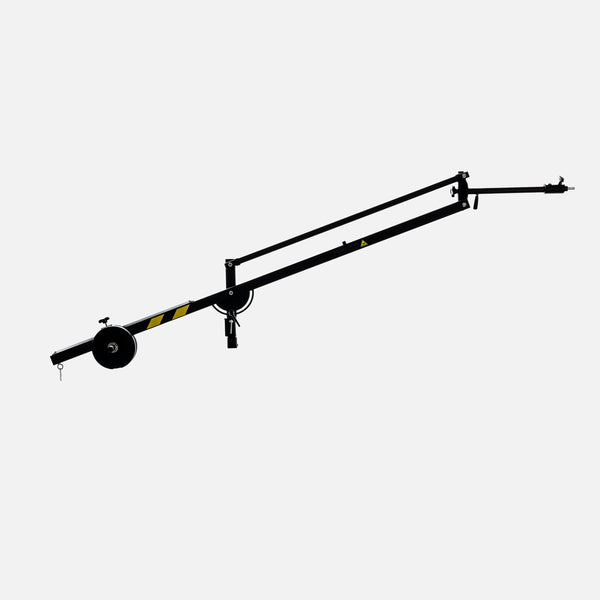

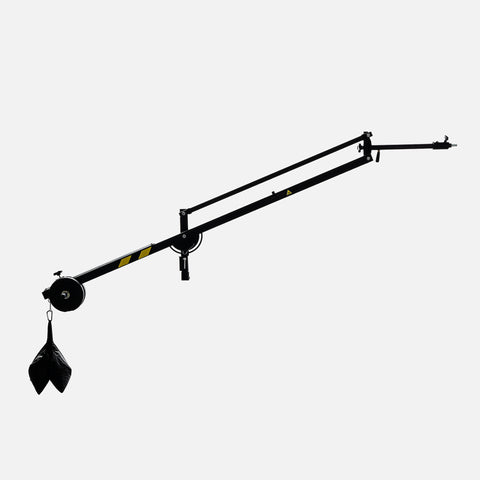

The STA-05-031 LARGE Double Beam Light Boom is perfect for general studio and low-angle applications that other booms can't handle. Unlike conventional boom arms that are difficult to use and balance the STA 05-031 is a double-beam parallelogram boom. This design maintains the angle of light as you move it up and down. The balance system is really easy to adjust and utilizes standard barbells, the kind you find at a gym and walmart. Balance is achieved by sliding the barbells forward and back along the barbell track. Two barbells are included and additional space is provided to add more barbells to counterbalance heavier loads. A loose empty sand bag and sand bag hook is also supplied with the boom arm. The adjustable length head mount arm allows you to fine tune the length of the boom arm. Telescopic head mount: This feature extends the arm 13" / 33cm which is handy when you need to reposition the light without moving the enter boom stand. (This feature is not standard on competitors products. Competing brands sell an optional head mount extender for $150.00) The STA-05-031 LARGE Double Beam Light Boom is supplied with an Angle Safety Lock which prevents unwanted boom movement. (This is a critical feature not standard on competitors products.) The rotating head assembly is provided with a calibrated angle indicator. Using the rotational lever, you can change the angle of light by 360 degrees. The calibrated angle indicator allows you easily repeat a set up. The Rack & Pinion Geared Crank-up Stand STA-06-200 is a perfect companion for the STA-05-031 LARGE Double Beam Light Boom.
Features
- 83 1/2 in / 6.9 ft / 212 cm Reach with Included Telescopic Extension
-Supports up to 33 lb / 15 kg of Load / Gear

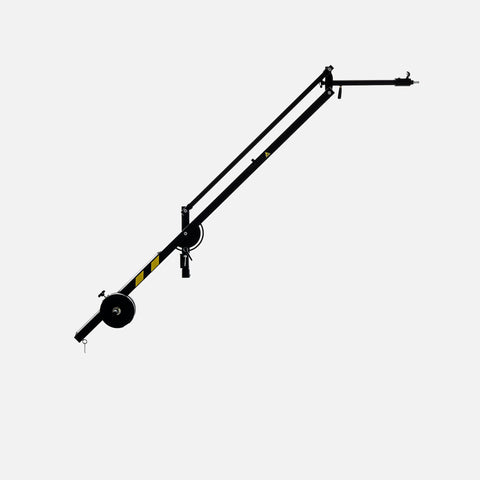

-75° approximate upward boom movement
-70° approximate downward boom movement

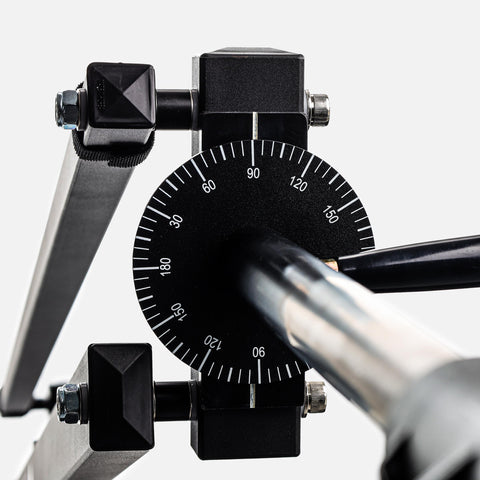

-360° Indexed Head Rotation
-Mount Boom to stand via Standard Junior-Sized Pin (1-1/8th in)
-Mount light to head mount via (5/8th in) diameter Baby Spigot with flats
-Precision Engineered Polymer Low Friction Bearings
The short length of the sliding counterweight track makes the STA-05-031 LARGE Double Beam Light Boom a perfect choice for space limited studios.
The STA-05-031 LARGE Double Beam Light Boom features Engineered Polymer Low Friction Bearings for noticeably smooth movements and fine positioning of the light. When the desired angle is found and lighting is perfect. The Angle Safety Lock can be engaged to prevent unwanted boom movement, preserving the scene. (This is a critical feature not standard on competitors products.)
• Total Length (with Telescopic Extension) to Mounting Stud : 122 in / 10.16 ft * / 309 cm
• Reach (Working distance from Stand to Mounting Stud: 83.5 in / 6.96 ft / 212 cm
• Angle Locking System : User engaged friction brake disc via Hand Lever
• Lower Column : Rectangular Tube - Width: 2 in x 1 in / 5 cm x 2.5 cm
• Upper Column : Rectangular Tube - Width: 1 in x 1 in / 2.5 cm x 2.5 cm
• Material : (Columns, Base, Telescopic Extension ): Steel & Aluminum
• Weight : 22 lbs / 10 kg
• Load Capacity : upto 33 lbs / 15 kg (at full load we recommend using additional barbells or the included sand bag)
• Boom Mount : Standard Junior-Sized Pin (1-1/8th in)
• Light Mount : Standard (5/8th in) diameter Baby Spigot with flats

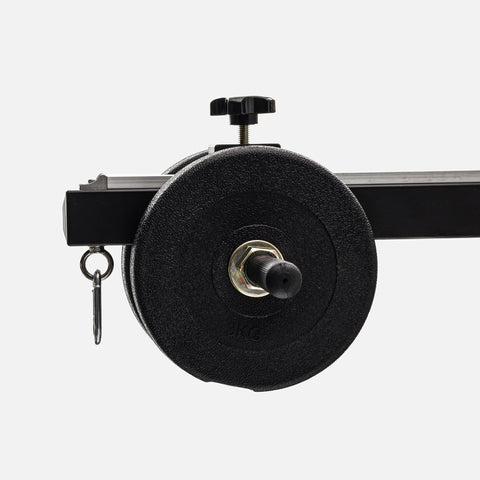

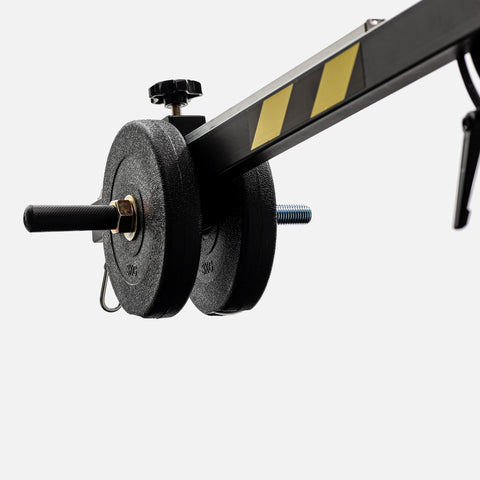

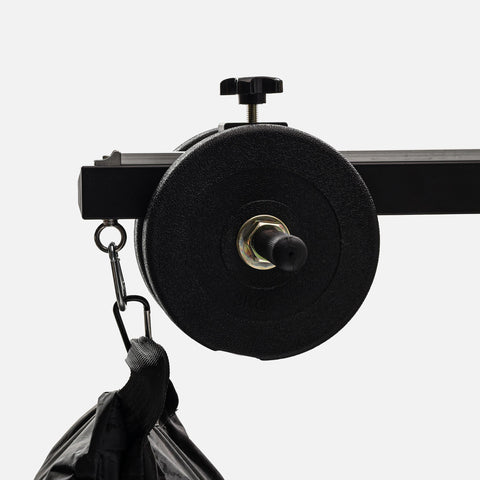

• Included Barbell Weights & Sand Bag : 2 x 6.6 lb / 3 kg Barbell Weights are supplied for a total weight of 13.2 lbs / 6 kg
Studio Titan reserves the right to make product changes and improvements as required. As a result, the product supplied may not be exactly as pictured or specified. Junior to Baby Pin Adapter shown in images for reference not included.
Intended use:
This product is intended for use by:
1. Professional and commercial photographers.
Assembly Instructions are inside the package. If the assembly instructions are missing or you do not fully understand the instructions stop the assembly and consider the following resources. Visit the “SETUP” area of the website for documentation. Email questions to STA or contact Studio Titan America by phone for further assistance.
Material composition:
The columns are made of steel. The nuts and bolts are made of steel. The telescopic extender is made of aluminum.
PACKAGING with Recyclable Materials: Studio Titan respects the environment. When selecting packaging materials, Studio Titan prefers using materials that are recyclable to reduce the environmental impact of its packaging. Product boxes and protection edges are made using corrugated cardboard which can be recycled at depots, in municipal curbside collection programs and through private recyclers. Internal securing foam blocks are made of PE (Polyethylene Foam) – Recyclable. Polyethylene foam products are 100% recyclable. Plastic bags are made of LDPE (Low-Density Polyethylene) – Recyclable plastic (check Local Authority) LDPE can be recycled. However, check with your Local Authority to ensure it is recycled in your area. This is described as a hard flexible plastic. LDPE’s identification code is 4 and it is recyclable. Yellow plastic strapping is made of PET (Polyethylen-terephthalat) – Recyclable. It is fully recyclable and commonly used in logistics.
Recycled Materials used inside the products: Studio Titan respects the environment. When manufacturing products, Studio Titan prefers using raw materials that are mixed with recycled materials to reduce the environmental impact of the products. For the Aluminum components: Vertical column, Horizontal column, Legs, Die cast carriages, base, cap and head-mount plates. The typical percentage of recycled aluminum metal to raw aluminum metal is 70% recycled to 30% raw. This globally adopted ratio provides good strength and finish. For the Steel components like: circular or square columns, hardware, casters, gears and counterweight. We have confirmed that the steel is made up of recycled materials combined with raw materials. We are not able to provide the actual percentage of recycled to raw on these components. Each product uses a different ratio based on its particular end use.
