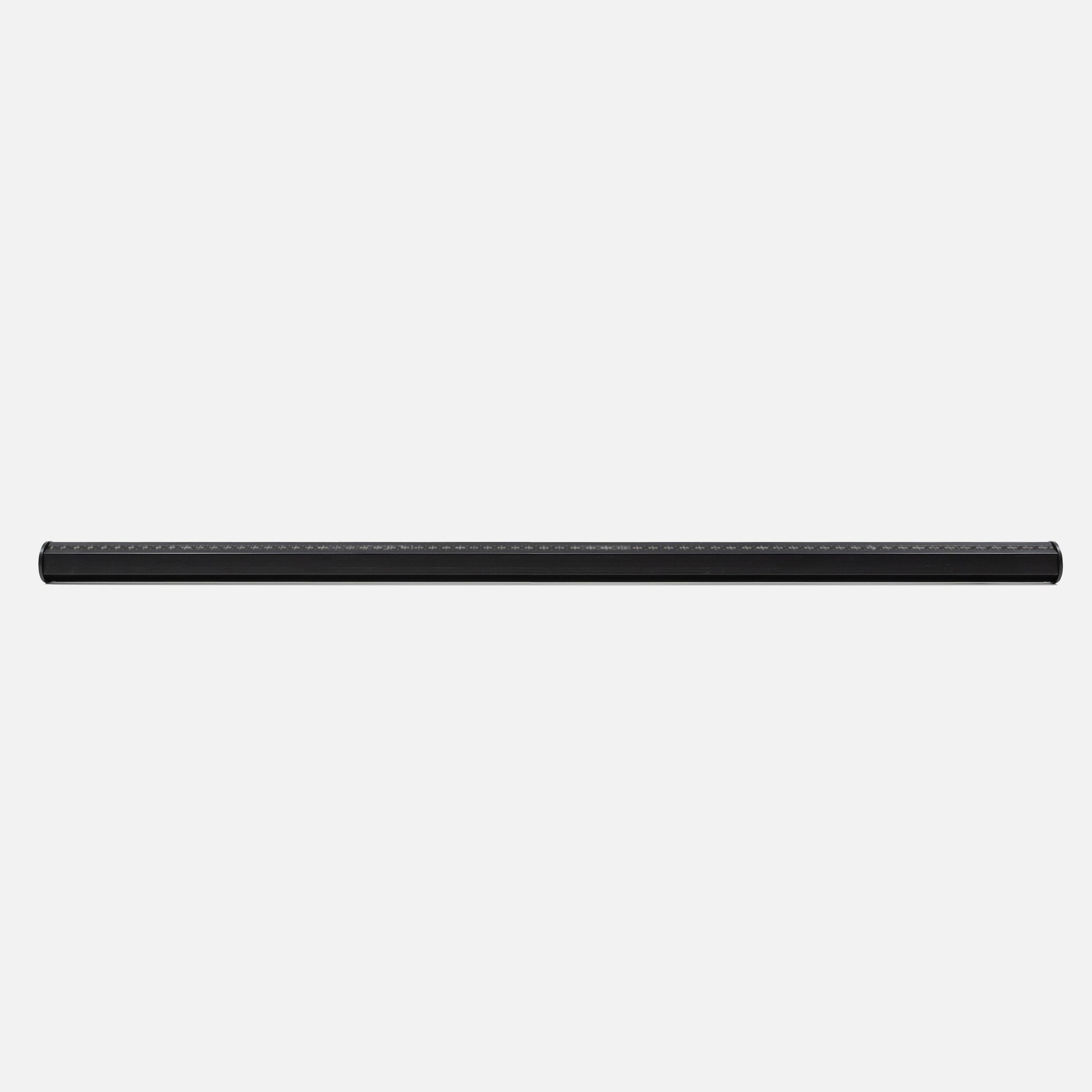

MK2 Horizontal Arm Bar with scale 1500mm Length STA-01-350HB-1500MK2
Compatible Camera Stands:
-STA-01-350MK2 [*see note regarding reduced loading]
-STA-01-350RMK2 [*see note regarding reduced loading]
Non-Compatible Camera Stands:
STA-C01-360
STA-01-350
STA-C01-350-TRI
STA-01-360
STA-01-360MK2
STA-01-380
*CAUTION:
When using Horizontal Arms/Bars that are longer than originally supplied, the load capacity [camera, etc.] must be reduced.
When subjected to a load the horizontal arm acts as a cantilever which carries the mass of the load from the camera plate, as a force into the Horizontal Carriage Bearing. As the Horizontal Arm/Bar is moved further away from the Horizontal Carriage Bearing a force amplifying effect occurs. This can have an adverse affect on the Horizontal Arm/Bar, the Horizontal Bearing Carriage as well as the overall stability of the stand. The nominal load capacity must be reduced by using the following formula:
[STA supplied published stand load capacity / [ Length of New Longer Horizontal Arm/Bar in mm / Length of originally supplied STA Horizontal Arm/Bar in mm] = new full extension load capacity
[ STA-01-350MK2= 10kg / 22 lbs ] / [1500mm / 1000mm ] = 6.7 Kg / 14.6 lbs
NOTE: This information only applies to current production STUDIO TITAN products.
• Total Length of Arm / Bar : approx. 1500mm / 59 in
• Working Width Horizontal : 1335mm / 52.5 in (center of Column to center of Camera plate)
• Recommended Reduced General load capacity : use formula below
[STA supplied published stand load capacity] / [ Length of New Longer Horizontal Arm/Bar in mm / Length of originally supplied STA Horizontal Arm/Bar in mm] = new full extension load capacity
[ STA-01-350MK2= 10kg / 22 lbs ] / [1500mm / 1000mm ] = 6.7 Kg / 14.6 lbs
Some assembly is required, please review the set-up & use manual.
Hex key tool is included to complete assembly.
Studio Titan reserves the right to make product changes and improvements as required. As a result the product supplied may not be exactly as pictured or specified.
*Before installation and use of an optional horizontal arm please read the STA_01-350HB_Horizontal_Arm_Bar_ manual. When using an optional horizontal arm, consideration for load reduction and using additional weights / sand bags on the legs of the base are required to prevent instability or a tip over.
Intended use:
This product is intended for use by professional and commercial photographers in a studio environment with a high ceiling. The wheels are designed to be used indoors on a floor that is smooth, hard, flat and unobstructed. It is designed to be used at all times with a load (Camera or laptop shelf or both). This product is not recommended for use by hobbyists or in a household environment with a low ceiling or carpeted floors. Carpeting or pitted surfaces are not recommended because of the increased rolling resistance which can cause the stand to tip over. If the surface is not ideal, the stand must be moved with caution, very slowly, using both hands one at the top and the other at the bottom to steady the stand in order to prevent the stand from tipping over. If the surface is not ideal, lower the load to waist level before moving the stand. We also recommend the use of a sandbag or weight attached at the base when conditions are not ideal to prevent tipping over. Ultimately it’s the users responsibility to understand how the stand operates and to use the stand within its specification limits, as intended, to insure their own safety and the safety of their equipment. It is also recommended to use a short tether cable to secure the camera to the stand in the event that the head, head plate or camera adapter plate comes loose or fails. Some assembly is required, we recommend using an assistant during the initial product assembly.
