Pre-order - Studio Product & Reproduction Stand STA-C01-360
Pre-order: This product will be shipped when available

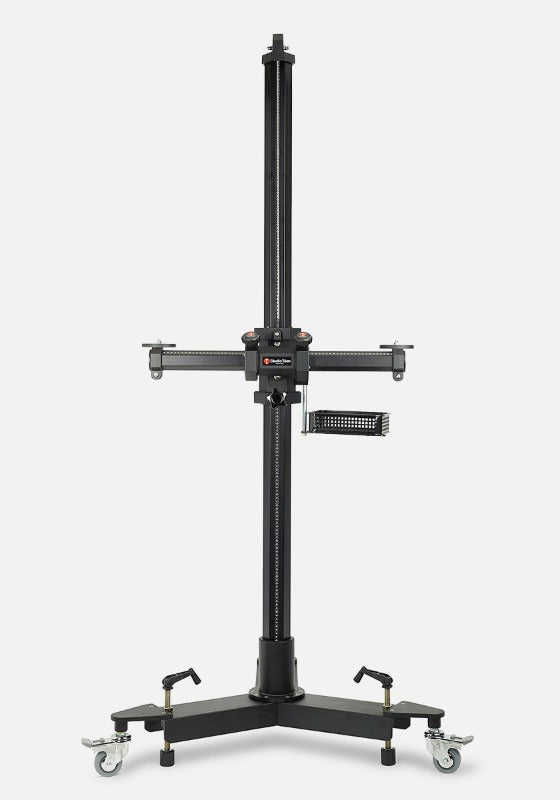

The STA-C01-360 was designed for both product photography and high resolution reproduction applications. Multi image stitch together imaging applications require more precise alignment in both the horizontal and vertical plane with respect to the subject matter. When reproducing artwork that is mounted or large products that cannot be disturbed or manipulated, the height adjustable feet can be used to align the stand with the artwork or object. With the stand and object aligned true and accurate flat field reproduction can be achieved without excessive post processing. This stand is categorized as 2-axis, it provides both vertical and horizontal movement of the camera. Vertical [up/down] travel is provided by the vertical carriage. Horizontal arm / bar [left/right] extension is provided by the horizontal carriage.

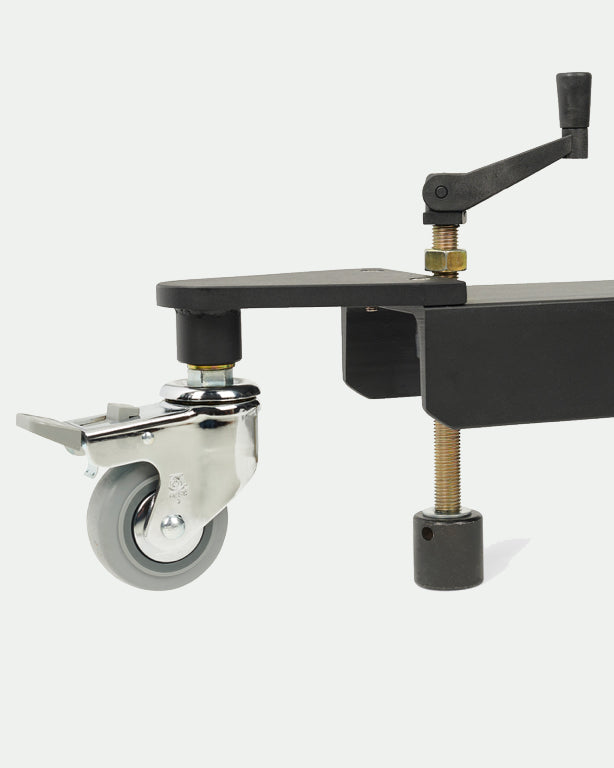

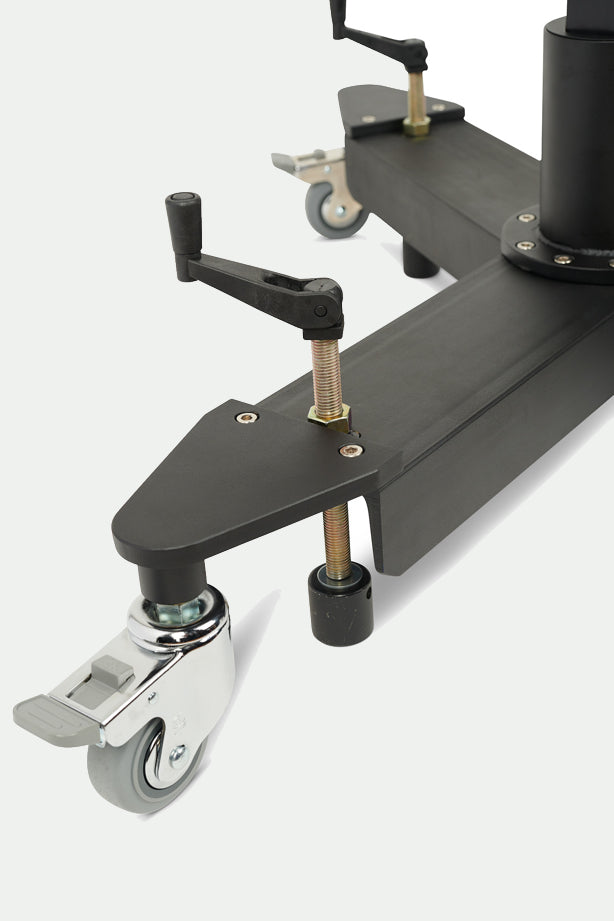

The overall height and width of the STA-C01-360 allow it to be moved through a standard doorway for use in another studio, gallery or lab. The height adjustable feet are easily adjusted using the hand levers. When using the feet, rotate the hand levers and fully extend all three feet until the hand lever is firmly pressed against the top of the leg.
Use an inclinometer or laser to determine which one of the three legs needs to be lowered to compensate for the floor with respect to subject matter. To datum or level the stand use a precise level, place the level on top of one of the three legs, tilt the level to simulate lowering that leg to determine the end effect. Using this method determine which one or two of the legs require adjustment to datum the stand.

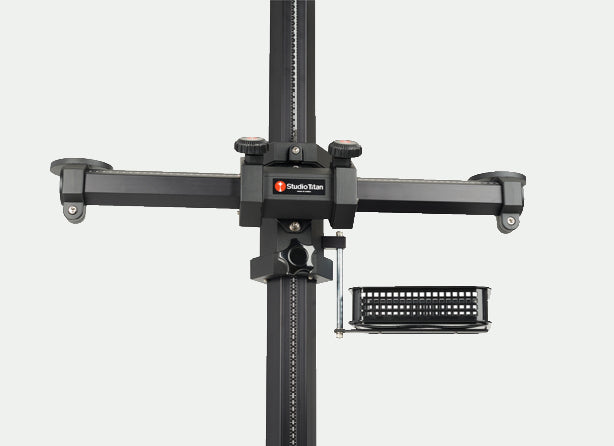

The STA-C01-360 provides additional reinforcement of the Horizontal Arm/Bar with a heavy- duty interface plate. The plate provides two additional bolts, strategically located, one on each side of the vertical carriage, for a total of 4 bolts. This design provides additional load support by transferring the load force from the horizontal arm into both the front and the sides of the vertical bearing carriage.
Optional Horizontal Arms/Bars are available for extending the working width of the STA-C01-360 out to an approximate maximum of 1350mm / 54 inches (measured center of Vertical Column to the center of Camera plate). With an optional extended horizontal arm* the STA-C01-360 is ideal for large product imaging and ART work reproduction and cataloging. With large product and fixed installation ART work reproduction applications, the STA-C01-360 combined with the optional STA-01-350HB-1500 horizontal arm* provides 2700mm/108 inches of total working width.
The STA-C01-360 + optional horizontal arm* is an ideal solution for simplified workflow when stitching high-resolution images together. A unique STUDIO TITAN feature not found on other Studio Stands is the vertical and horizontal column graduated tape scales. The measuring scales provide a point of reference which allows the photographer to log and then quickly re-create a previous set-up. It also provides set-up reference points for stitch together applications.
The Camera Head Mount Plate is user adjustable and provides the following shooting positions: 0 degrees pointing up as supplied, 60 degrees, 120 degrees, 180 degrees pointing down for tabletop photography, 240 degrees and 300 degrees.
*Before installation and use of an optional horizontal arm please read the STA_01-350HB_Horizontal_Arm_Bar_ manual. When using an optional horizontal arm, consideration for load reduction and using additional weights/sandbags on the legs of the base are required to prevent instability or a tip over.
-User positioned vertical carriage with precision smooth motion ball bearings and secure axis lock with one user brake knob
-User positioned Horizontal arm / bar carriage with precision smooth motion ball bearings and secure axis lock with two user brake knobs
-Precision-manufactured with attention to detail using CNC machinery.
-Counterweight located inside vertical column balances the load and allows single-handed operation.

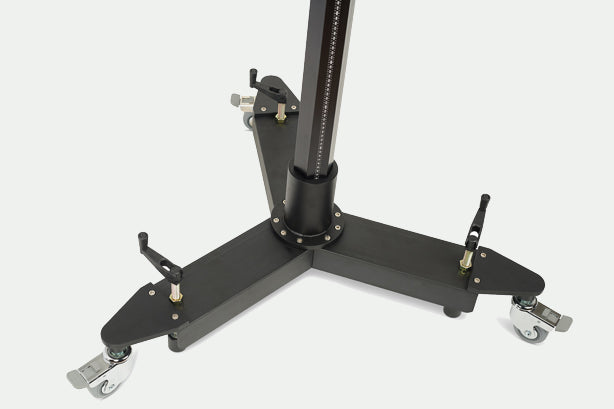

-Low center of gravity base with locking Premium Dual Stage bearing casters.
-Premium Dual Stage bearing casters provide easy movement around the studio. The dual-stage foot brake stops both the wheel from rotating and the caster housing from swivelling, preventing unwanted movement.
Some assembly is required, please review the set-up & use manual.
Includes essential tools required to complete assembly.
A unique STUDIO TITAN feature not found on other Studio Stands is the vertical and horizontal column graduated tape scales. The measuring scales provide a point of reference which allows the photographer to log and then quickly re-create a previous set-up.
• Total Height : 203cm / 79.92 in
• Working Height Maximum : 176cm / 69.29 in (measured from Camera Plate to floor)
• Working Height Minimum : 61cm / 24 in (measured from Camera Plate to floor)
• Working Width Horizontal - Fully Extended to Left : 55cm / 21.6 in (center of Column to center of Camera plate)
• Working Width Horizontal - Fully Extended to Right : 55cm / 21.6 in (center of Column to center of Camera plate)
• Overall Working Width Horizontal - Fully Extended from Left to Fully Extended Right : 110 cm / 43.2 in (center of Camera plate to center of Camera plate)
• Width : 85cm / 33.46 in
• Weight : 40kg / 88lbs
• Suggested Wheels : 01-350-20-024
• Base Diameter :100cm / 39.3 in
• Recommended General load capacity : 10kg (22lbs)
• Camera Plate Hardware: 3/8th inch - 16 thread
• Includes two Camera Head Mount Plates and Basket as shown
• Caster wheel diameter: 76mm / 3 in
-Large accessory shelf STA-01-395 for notebook computer
-Small accessory shelf STA-01-397A for notebook computer
-STA-01-390 3-way head
-STA-01-398 Lowering Plate
Studio Titan reserves the right to make product changes and improvements as required. As a result, the product supplied may not be exactly as pictured or specified.
This product is intended for use by:
1. Professional and commercial photographers.
2. Technicians and quality control personnel.
This product is intended for use in a studio, lab or manufacturing environment with a high ceiling, indoors on a floor that is smooth, hard, flat and unobstructed. It is designed to be used at all times with a load (Camera or laptop or both). Please refer to the products set-up and use manual for detailed information regarding intended use, set-up guidelines and instructions. When assembly is required, we recommend using an assistant during the initial product set-up.
Assembly Instructions are inside the package. If the assembly instructions are missing or you do not fully understand the instructions stop the assembly and consider the following resources. Visit the “SETUP” area of the website for documentation. Email questions to STA or contact Studio Titan America by phone for further assistance.
The Vertical and Horizontal columns are made of aluminum. The counterweight is S20C steel.
The nuts and bolts are made of steel. The casters are polyurethane. This product does not contain lead.
Note: Due to this products large size and specific packaging and handling requirements it is sold as "non returnable".
PACKAGING with Recyclable Materials: Studio Titan respects the environment. When selecting packaging materials, Studio Titan prefers using materials that are recyclable to reduce the environmental impact of its packaging. The column box blue outer plastic material is Polypropylene, abbreviated as PP, is a recyclable thermoplastic polymer widely used in many different products. PP is rugged. PP's resin identification code is 5, and it is recyclable. Product boxes and protection edges are made using corrugated cardboard which can be recycled at depots, in municipal curbside collection programs and through private recyclers. Internal securing foam blocks are made of PE (Polyethylene Foam) – Recyclable. Polyethylene foam products are 100% recyclable. Plastic bags are made of LDPE (Low-Density Polyethylene) – Recyclable plastic (check Local Authority) LDPE can be recycled. However, check with your Local Authority to ensure it is recycled in your area. This is described as a hard flexible plastic. LDPE’s identification code is 4 and it is recyclable. Yellow plastic strapping is made of PET (Polyethylen-terephthalat) – Recyclable. It is fully recyclable and commonly used in logistics.
Recycled Materials used inside the products: Studio Titan respects the environment. When manufacturing products, Studio Titan prefers using raw materials that are mixed with recycled materials to reduce the environmental impact of the products. For the Aluminum components: Vertical column, Horizontal column, Legs, Die cast carriages, base, cap and head-mount plates. The typical percentage of recycled aluminum metal to raw aluminum metal is 70% recycled to 30% raw. This globally adopted ratio provides good strength and finish. For the Steel components like: circular or square columns, hardware, casters, gears and counterweight. We have confirmed that the steel is made up of recycled materials combined with raw materials. We are not able to provide the actual percentage of recycled to raw on these components. Each product uses a different ratio based on its particular end use.
