Pre-order - Stage with Folding Arm STA-06-120 C/W STA 06-105 (1M Stage - 100cm / 39.3 in)
Pre-order: This product will be shipped when available

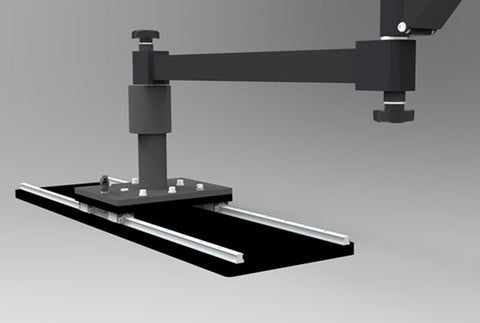

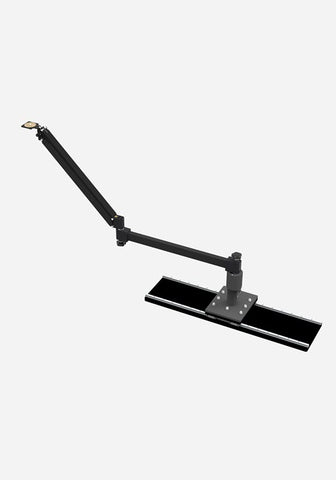

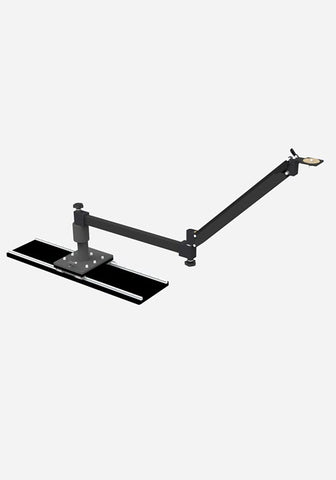

The STA 06-120 stage with STA 06-105 folding arm was developed for macro imaging, photogrammetry, dual image correlation and inspection applications. The STA 06-120 stage with STA 06-105 folding arm includes a base plate with two steel linear profile rails and four steel linear profile bearings, mounted to the carriage plate. The camera is easily positioned anywhere within the circular work envelope. The design of STA 06-120 stage with STA 06-105 folding arm keeps the head mount plate parallel with the mounting plate as the height of arm changes, which maintains camera perspective as the arm is re-positioned above and around the subject. The integrated internal pneumatic counterbalance is user adjustable. When the camera is counterbalanced it can be moved with little effort, easily and precisely into position. When the user releases the camera it holds its vertical position. The stage can be mounted on a table, wall or ceiling to accommodate the application.
-Precision-manufactured with attention to detail using CNC machinery.
-Pneumatic counterbalance located inside the arm balances the load and allows single-handed operation.
Some assembly is required, please review the set-up & use manual.
Includes essential tools required to complete assembly.
• Total Length of base plate stage : 1 Meter / 100cm / 39.3 in

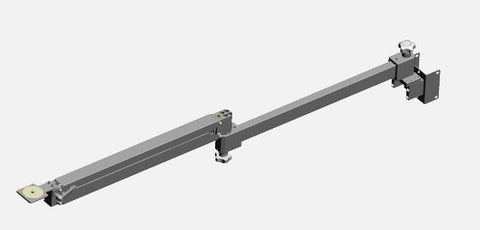

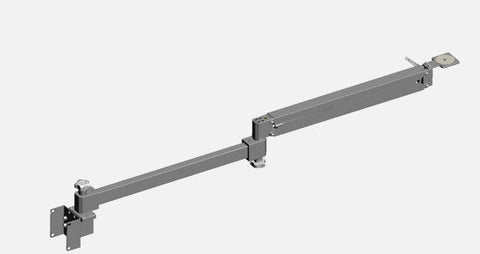

• Length of first arm element : 75cm / 29.5 in (measured from mounting bracket to first joint)
• Length of second arm element : 79cm / 31 in (measured from first joint to center of Camera Plate)
• Total Length of Arm : 162cm / 63.7 in
• Maximum vertical travel angle of second arm element : upwards 45 degrees & downwards 45 degrees
• Total Weight of Arm : 8kg (17.6lbs)
• Counterbalance : user adjustable
• Recommended General load capacity : 5kg (11lbs)
• Camera Plate Hardware : 3/8th inch - 16 thread
• Includes Camera Head Mount Plate as shown
-STA-01-390 3-way head
Studio Titan reserves the right to make product changes and improvements as required. As a result, the product supplied may not be exactly as pictured or specified.
This product is intended for:
1. Commercial & Industrial Imaging.
2. Technicians and quality control personnel.

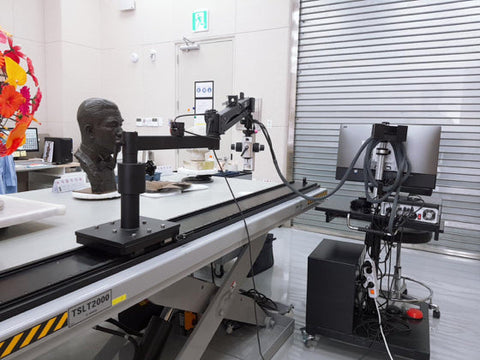

This product is intended for use in a studio, lab or manufacturing environment with a high ceiling, indoors on a floor that is smooth, hard, flat and unobstructed. It is designed to be used at all times with a load (Camera or laptop or both). Please refer to the products set-up and use manual for detailed information regarding intended use, set-up guidelines and instructions. When assembly is required, we recommend using an assistant during the initial product set-up.
